Lightweighting with improved performance

3M™ Nextel™ Ceramic Fibers and Textiles are proven as flame and heat shielding materials as well as reinforcement for structural composites in civilian and military applications.

CONTACT A SALES REP

High temperature material usage limits in oxidizing environments

Raise your component’s temperature capability while achieving up to a 70% reduction in material density when replacing high temperature metals with Nextel fiber reinforced ceramic matrix composites.

Application areas for 3M Nextel ceramic fibers and textiles

Nextel ceramic fibers and textiles meet some of the toughest thermal, mechanical and electrical performance requirements, including FAA criteria for aircraft firewalls and NASA standards for shuttle launch and re-entry. Nextel ceramic textiles can withstand extremely high temperatures and are also flexible and lightweight. They provide consistent and reliable performance in mission-critical applications from aircraft wiring insulation to engine firewalls and spacecraft micrometeorite shields. Nextel ceramic fibers are also used as structural reinforcements in advanced metal, ceramic, and polymer composites materials, imparting high temperature resistance for load-bearing applications.

Ceramic matrix components (CMCs)
Made from 3M™ Nextel™ ceramic fibers and textiles, Ox-Ox ceramic matrix composites (Ox-Ox CMC) enable new design possibilities as they can be shaped into complex structures that are more challenging for traditional materials like titanium and nickel alloys. Using innovative designs, Ox-Ox CMC parts can be used to create the next generation of more efficient, lighter weight, quieter engines.

Benefits:

Strength

Creep resistance

Withstand high temperatures

Applications:

Jet engine exhaust mixers

Nozzles

Cones

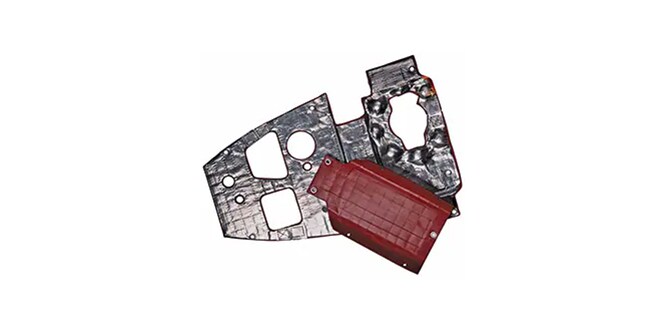

Fire protection
Compared to alternatives like quartz or glass, fire blankets made with Nextel ceramic fibers are lightweight and flexible, even after being exposed to high, continuous temperatures. This enables high performing fire protection even in tight, complex geometries.

Benefits:

Withstand a flame of 2000ºF (1093°C) for 15 minutes without flame penetration*

Lightweight

Flexible

Applications:

Firewalls

Fan cowls

Engine struts

Various jet engine components

*per ISO 2685 and FAR 25.856(a).

Resources

35 products

Your selections:

Filter

3M™ Nextel™ Chopped Fiber 312, Style AC-8 Calcined, 1/8 in Long, per lb

3M Stock

7010320545

Previous 3M Stock

98040059697

UPC

00051115097171

Alternative ID

312

3M™ Nextel™ Chopped Fiber 312, Style AC-8, 299 Sizing, 1300 D, 1/8 in Long, per lb

3M Stock

7010320521

Previous 3M Stock

98040024873

UPC

00051115073007

Alternative ID

312

3M™ Nextel™ Chopped Fiber 312, Style AC-8 Calcined, 1/4 in Long, per lb

3M Stock

7010294037

Previous 3M Stock

98040026548

UPC

00051115075674

Alternative ID

312

3M™ Nextel™ Fabric DF-11

Options available

3M™ Nextel™ Sewing Thread 312

Options available

3M™ Nextel™ Fabric AF-14

Options available

3M™ Nextel™ Sleeving AS-40

Options available

3M™ Nextel™ Fabric DF-6, 1500 D, 36 in Wide, per ft

3M Stock

B40066363

UPC

00051115230417

Alternative ID

DF-6

3M™ Nextel™ Tape AP-18

Options available

3M™ Nextel™ Yarn 312

Options available

3M™ Nextel™ Sleeving BS-40

Options available

3M™ Nextel™ Yarn 440

Options available

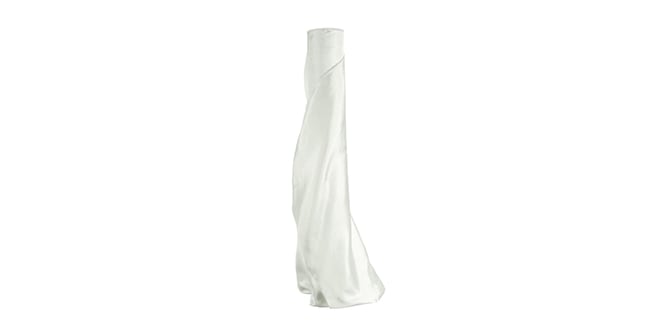

3M™ Nextel™ Fabric AF-10

Options available

3M™ Nextel™ Roving 720

Options available

3M™ Nextel™ Fabric AF-12

Options available

3M™ Nextel™ Sewing Thread 440, Style BT-30, per lb

3M Stock

B40066366

UPC

00051115113482

Alternative ID

440

3M™ Nextel™ Fabric EF-11

Options available

3M™ Nextel™ Fabric AF-29

Options available

3M™ Nextel™ Roving 440

Options available

3M™ Nextel™ Fabric BF-30

Options available

3M™ Nextel™ Fabric EF-20

Options available

3M™ Nextel™ Roving 610

Options available

3M™ Nextel™ Fabric DF-19

Options available

3M Nextel Chopped Fiber 720, Style EC-11, 299 Sizing, 10000 D, 1/4 in Long, per lb

3M Stock

B40066337

UPC

00638060423578

Alternative ID

720

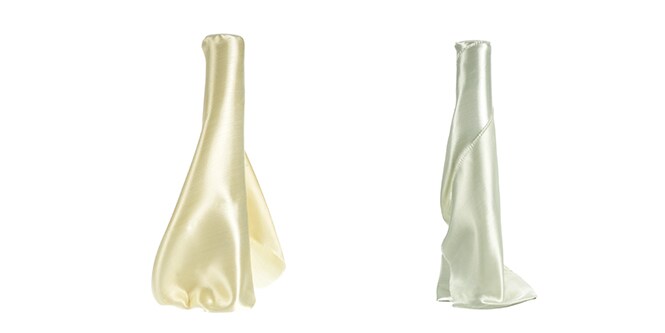

3M(TM) Nextel(TM) DF-13-4500 fabric weaving

3M™ Nextel™ Fabric DF-13-4500

Options available

3M™ Nextel™ Chopped Fiber 312, Style AC-8, 299 Sizing, 1300 D, 1/4 in Long, per lb

3M Stock

7010402879

UPC

00051115074660

Alternative ID

312

3M™ Nextel™ Chopped Fiber 312, Style AC-11, 299 Sizing, 3600 D, 1/8 in Long, per lb

3M Stock

7010320553

Previous 3M Stock

98040066981

UPC

00051115115196

Alternative ID

312

3M™ Nextel™ Fabric AF-30

Options available

3M™ Nextel™ Roving 312

Options available

3M™ Nextel™ Fabric BF-20

Options available

3M™ Nextel™ Chopped Fiber 610, Style DC-11, 324 Sizing, 10000 D, 1/4 in Long, per lb

3M Stock

B40066331

UPC

00051115166631

Alternative ID

610

3M™ Nextel™ Tape BP-18

Options available

3M™ Nextel™ Fabric EF-19

Options available

3M™ Nextel™ Fabric AF-20

Options available

3M™ Nextel™ Yarn 720, 3000D, Water Sized

3M Stock

7010353185

Previous 3M Stock

98040067948

UPC

00051115230394

Alternative ID

720
