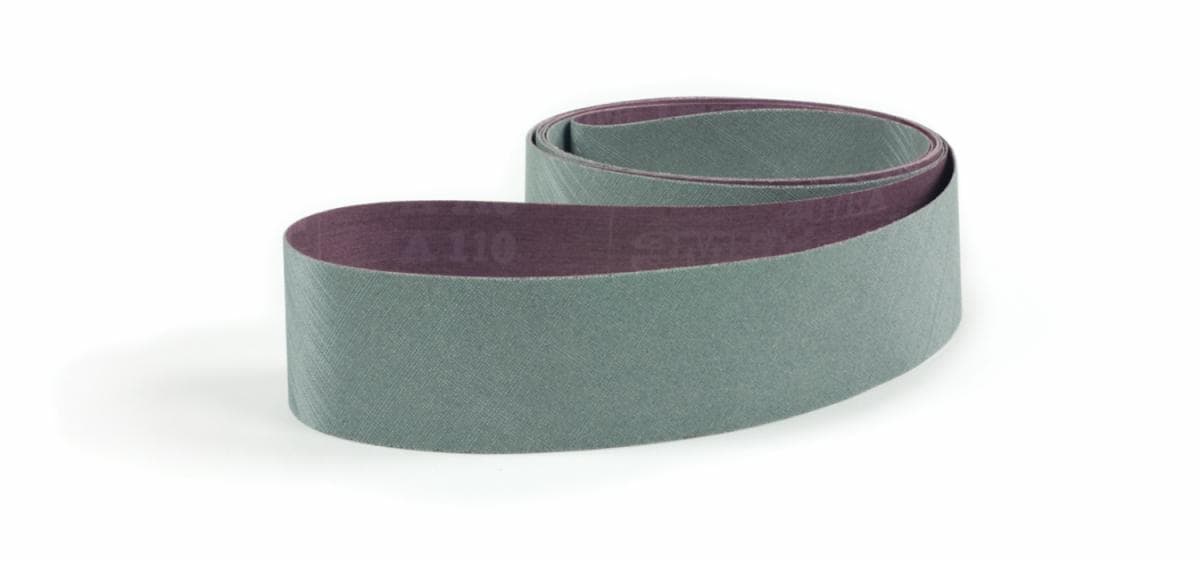

3M™ Trizact™ Cloth Belt 407EA

3M(TM) Trizact(TM) Abrasive Belt 407EA, JE-wt.

1 of 1

Hover to zoom

Used commonly in aerospace, orthopedic implant and surgical instruments, plating and polishing industries
Grinding aid lowers operating temperature for low-to-medium pressure applications, reducing the risk for part discoloration
Ideal for use on titanium and works well with a stroke / platen sander
Available in grades A110, A90, A60 and A20

View all details

For industrial/occupational use only. Not for consumer sale or use.

Overall Width (Imperial)

Overall_Width_Imperial

Overall Length (Imperial)

Overall_Length_Imperial

Equipment - Machines

Equipment_-_Machines

Micron Grade

Micron_Grade

14 Products Available

Available options:

Overall Width (Imperial), Overall Length (Imperial), Equipment - Machines and Micron Grade

Specifications

Attribute Name	Value
Abrasive Material	Silicon Carbide
Application	Finishing, Grinding
Backing Material	Rayon Cloth
Backing Weight	JE Weight
Brand	Trizact™
Equipment - Machines	Bench Top Motors, Centerless Grinders, Manual Backstand, Pressure Assit Backstand
For Use On	Titanium/Zirconium
Industries	Metalworking
Micron Grade	A110, A20, A60, A90
Overall Length (Imperial)	12 in, 132 in, 15.5 in, 18 in, 24 in, 72 in
Overall Length (Metric)	1828.8 mm, 304.8 mm, 3352.8 mm, 393.7 mm, 457.2 mm, 609.6 mm
Overall Width (Imperial)	0.5 in, 0.75 in, 1 in, 1.25 in, 2 in, 3 in, 3.5 in
Overall Width (Metric)	12.7 mm, 19.05 mm, 25.4 mm, 31.75 mm, 50.8 mm, 76.2 mm, 88.9 mm
Product Form	Belt
Splice Type	Film-lok
Substrate	Titanium/Zirconium

Product Details

Used commonly in aerospace, orthopedic implant and surgical instruments, plating and polishing industries
Grinding aid lowers operating temperature for low-to-medium pressure applications, reducing the risk for part discoloration
Ideal for use on titanium and works well with a stroke / platen sander
Available in grades A110, A90, A60 and A20
Trizact™ abrasives can last up to five times longer than conventional abrasives

Our 3M™ Trizact™ Cloth Belt 407EA effectively blends and polishes a variety of metal substrates during light-pressure dimensioning and finishing.

Designed for low to medium pressure applications, our 3M™ Trizact™ Cloth Belt 407EA cuts sharp yet conforms to the substrate. A flexible JE-weight backing enables the abrasive to follow surface contours and respond to surface imperfections for a superior finish. The abrasive features a grinding aid that helps it run cool, reducing the risk for discoloring or warping the substrate due to heat and is available in a range of grades, descending from A110 to A20.

3M™ Trizact™ abrasives revitalize light dimensioning and finishing work by helping to reduce processing steps, increasing throughput and creating consistency. Big benefits are achieved through a patented 3M technology called microreplication. During microreplication, small three-dimensional structures resembling pyramids are adhered to a backing. These "pyramids" contain layers of mineral, and they begin to break down after repeated use, continually exposing fresh mineral. The cycle of mineral renewal sustains the abrasive's sharpness. Ongoing sharp cutting action reduces the need to swap out the abrasive, contributing to higher throughput and increased productivity. Additionally, because the mineral is uniformly distributed over the abrasive surface, the workpiece receives fixed — rather than erratic— contact for a consistent cut. From medical implants to surgical tools to automotive transmission components, 3M™ Trizact™ abrasives are uniquely suited for projects with acute technical requirements — delivering a consistent finish part after part.
