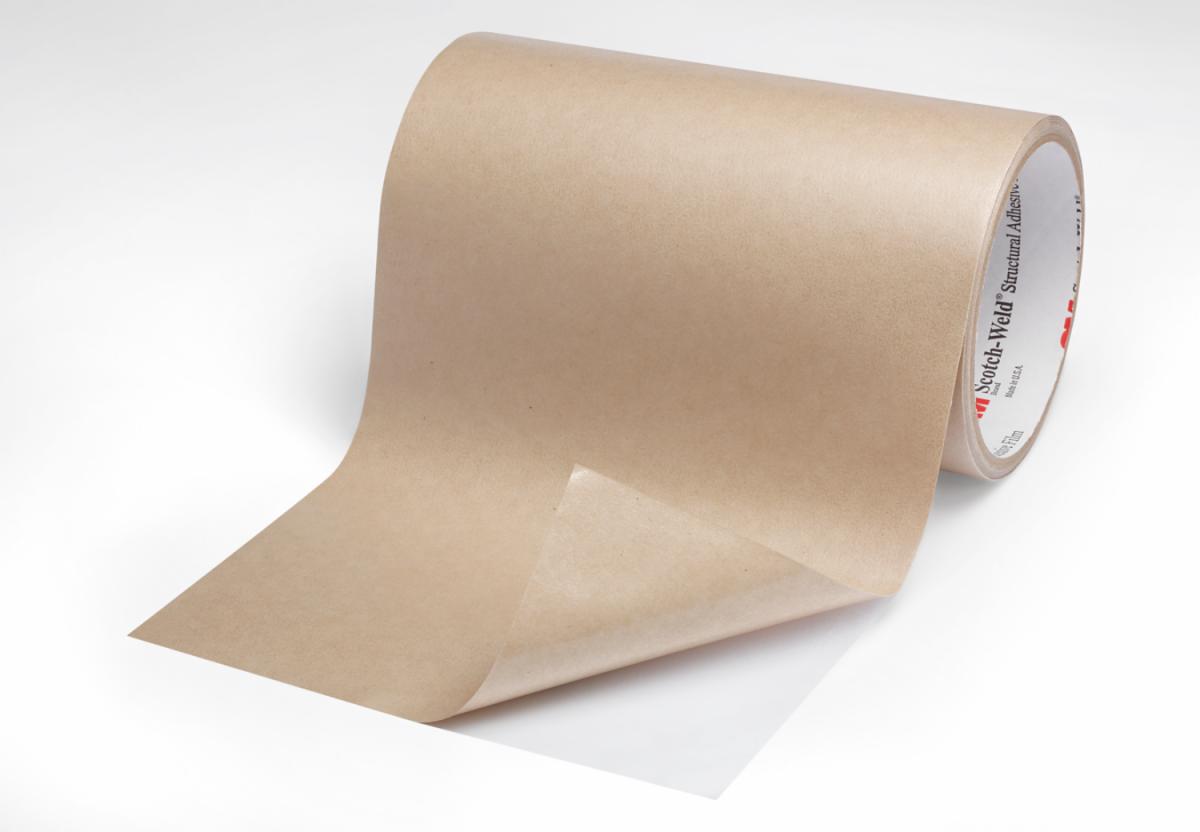

3M™ Thermal Bonding Film AF42

3M ID B10467787

350 degree F (177 degree C) cure

Storage at or below 40 degree F (4 degree C)

Cures clear

View more details

Frequently viewed resources

Tech Data Sheet (PDF, 150KB)

Details

Highlights

350 degree F (177 degree C) cure
Storage at or below 40 degree F (4 degree C)
Cures clear
Flexible for dissimilar substrates, high peel strength
Non tack, low flow
3 mil and 4 mil thick versions

3M™ Thermal Bonding Film AF42 is an epoxy, thermoset film adhesive developed for structural bonding of metal, glass and other engineering grade substances.

This hot melt film adhesive is a curable epoxy-based film that provides a structural against metal, glass and other substrates. It provides for excellent solvent, humidity resistance, is tack free and possesses low flow characteristics.

Typical properties

Details

Resources

Ask a 3M Expert

All fields are required unless indicated optional
First Name
Last Name
Business Email Address
Business Phone
Company
Job Role
Industry
Country
Preferred Language
State
Message
Subscribe to Newsletter
Data Privacy
Marketing Consent
Profiling Consent
End Devices Consent
Consent Legal Text
3M takes your privacy seriously. 3M and its authorized third parties will use the information you provided in accordance with ourPrivacy Policy to send you communications which may include promotions, product information and service offers. Please be aware that this information may be stored on a server located in the U.S. If you do not consent to this use of your personal information, please do not use this system.
Submit

Our apologies...

An error has occurred while submitting. Please try again later...

Thank you!

Your form was submitted successfully

Similar products

	Current product 3M™ Thermal Bonding Film AF42	3M™ Thermal Bonding Film 583	3M™ Surface Pre-Treatment AC-130-2
Adhesive Type	Epoxy Film Adhesive
Application	Bonding
Brands	3M™
Cure Rate	1 hr
Curing Temperature (Celsius)	177 ℃
Curing Temperature (Fahrenheit)	350 ℉
Industries	Aerospace, Electronics, General Industrial, Transportation
Nominal Adhesive Thickness (Imperial)	3 mil
Nominal Adhesive Thickness (Metric)	0.08 mm
Product Usage	Aircraft Components, Marine Structures
Shelf Life	15 Month
Storage Environment	Dry Storage
Storage Temperature (Celsius)	6 °C - 8 °C
Storage Temperature (Fahrenheit)	42 °F - 46 °F
Substrate	Aluminum, Polyester Film, Polyimide Film, Stainless Steel

Legal disclaimer

The technical information and data shown on this page should be considered representative or typical only and should not be used for specification purposes. 3M products shown on this website may not be available in all geographic regions or may not be available at this time. Please contact your local sales representative to determine product availability.
