3M™ Adjustable Paint Masking Applicator applies masking tape along a vehicle roofline.
Upgrade Your Masking Toolbox

Lay down precise tape lines along complex surfaces with the 3M™ Adjustable Paint Masking Applicator, designed to be robust, flexible and easy to use.

REQUEST A DEMO

3M™ Adjustable Paint Masking Applicator delivers fine-tuned masking

Two-tone paint gives vehicles a design edge – but only if you have clean lines. Designed specifically for automotive original equipment manufacturers (OEMs), the 3M™ Adjustable Paint Masking Applicator makes it fast and easy to achieve the precision you need. This lightweight tool features an integrated cutter and four adjustable application heads to apply tape to a variety of depths.

Video still of a new vehicle in a dimly lit room with light tubes on the walls that are about to become brighter
  • Icon of an arrow in the bullseye of a target
    Adjustable

    Adjusts to meet a range of tape widths and apply the exact line you need every time.

  • Icon of a stopwatch
    Fast

    Created from an OEM point of view with integrated cutting, clean web handling and a thin profile.

  • Icon of a dumbbell
    Robust

    Made from impact-resistant composite materials to stand up to manufacturing environments.

  • Icon of a feather over an open hand
    Lightweight

    The innovative design makes masking easy while keeping operator comfort and performance top of mind.


How It Works

After years of relentless customer driven innovation, we are excited to introduce the 3M™ Adjustable Paint Masking Applicator. An innovative masking solution that delivers precision with flexibility and robustness, harnessing unrivaled productivity.

  • Image of the 3M™ Adjustable Paint Masking Applicator with hotspots pointing to features
Push Button Cutter

Designed for single-handed operation

Adjustable Tip

Varying depths allow for unprecedented flexibility. Magnets to maintain alignment to vehicle surface

Integrated Cutter Block

Made for either full or partial cutting options to meet your design needs

Handle

With integrated magnet for ease of storage

Spool

Adjusts for tapes up to 3/4” wide

Tape Handling

Smooth flow of tape to avoid getting caught up in tight places

Lightweight Durable Body

Made from an advanced composite reinforced with stainless steel

Magnetic Guidance

Magnets to maintain alignment to vehicle surface

Product Options

We make each of these tools available in right- and left-handed models so workers can mask in the direction they’re most comfortable.

  • 3M™ Adjustable Paint Masking Applicator, right-handed tool is used to apply Scotch® Fine Line and 3M High Performance tapes on the side roofline of a vehicle from left to right.

  • 3M™ Adjustable Paint Masking Applicator, left-handed tool is used to apply Scotch® Fine Line and 3M High Performance tapes on the side roofline of a vehicle from right to left.

  • 3M™ Adjustable Paint Masking Applicator, righthanded tool is used to apply Scotch® Fine Line and 3M High Performance tapes from the rear roofline of the vehicle from left to right.

  • 3M™ Adjustable Paint Masking Applicator, left-handed tool is used to apply Scotch® Fine Line and 3M High Performance tapes on the rear roofline of a vehicle from right to left.

  • 3M™ Adjustable Paint Masking Applicator replacement part kit with four applicator tips and two cutter blocks.
    Replacement Part Kit

    Includes all the application heads (S, M, L, XL) and cutter blocks (full and partial) of the original for easy replacement when parts become worn.


Complete Range of Masking Solutions

Trust the comprehensive line of 3M masking solutions for the performance you need to finish the job right the first time.

  • Featuring sharp paint lines and excellent conformability, these fine line tapes are a superior masking solution for demanding applications.

  • AOEM applications require high-performance tapes that can withstand harsh environments. 3M offers industrial masking tapes that feature sharp lines, easy removal, and high temperatures resistance.

  • Speed up the masking process and maintain the highest level of quality with 3M™ High Temperature Masking Films.


Applicator Resources

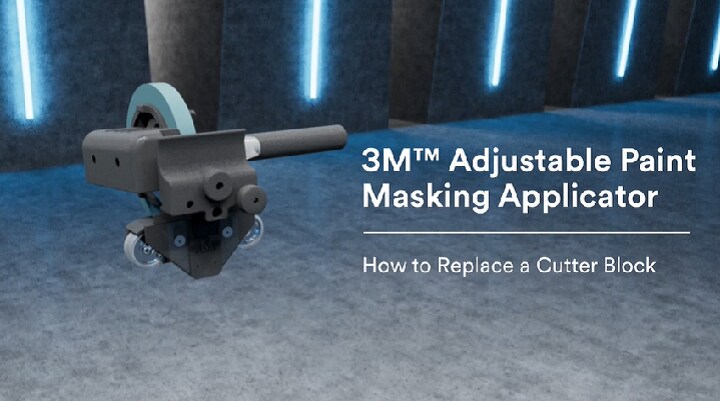

  • (SPEECH) [MUSIC PLAYING] (DESCRIPTION) Text, 3M Adjustable Paint Masking Applicator: How to Replace a Cutter Block. A computer rendered animation shows a paint masking applicator. Text, Replacing the cutter block is fast and easy. To replace the cutter block, turn the applicator over to locate the two screws. The applicator turns upside down so the wheels are up. Text, Remove the two screws using a 3/32 inch hex key. A hex key turns to loosen both of the screws under the wheels, the screws are removed. Text, Remove the cutter block on the opposite side. The cutter block with the 3M logo engraved in it slides out from the under the wheels on the other side of where the screws were removed. Text, Caution: the black is sharp. Place a new cutter block in the groove. A new block is slid into the same place, with the holes side facing the applicator and the logo side facing out. Text, Hold securely. Flip the applicator over. The applicator is placed right-side up with the wheels at the bottom. Text, Replace the two screws. The screws are replaced and tightened with the hex key. Text, Tighten, and you're ready to work. The applicator's wheels run along the inside of a car frame inside the window opening, leaving a trail of tape as it rolls. Text, Trust 3M's comprehensive line of masking solutions for the performance you need to finish the job right, the first time. The animation shows the replacement of the cutter block again. Then the strip of tape on the bottom of the car is peeled off easily. Text, Mask it better with 3M paint masking solutions. Logo, 3M, Science, Applied to Life. Text, Go to 3M dot com slash automasking or contact your local 3M representative.

3M TM Adjustable Paint Masking Applicator applying masking tape along a vehicle roofline.
Say goodbye to rework

Contact your local 3M representative to get started.
