- Two-sided coating for good antistatic performance
- Appropriate to use with different types of electronic components
- Works well on 3M™ Polycarbonate Carrier Tapes and some other types of carrier substrates
- 480 m rolls are available in standard widths of 5.4 mm, 9.3 mm, 13.3 mm, 21.3 mm, 25.5 mm, 37.4 mm and 49.4 mm
View Legal Disclaimer
Specifications
|
Attribute Name
|
Value
|
|---|---|
|
Adhesive Type
|
Heat Activated
|
|
Brand
|
3M™
|
|
Elongation
|
75 %
|
|
Haze Percentage
|
30.5 %
|
|
Maximum Operating Temperature (Celsius)
|
220 Degree Celsius
|
|
Overall Length (Imperial)
|
524.934 yd
|
|
Overall Length (Metric)
|
480 m
|
|
Overall Thickness (Metric)
|
0.062 mm
|
|
Overall Width (Imperial)
|
14.724 in
|
|
Overall Width (Metric)
|
37.4 mm
|
|
Product Color
|
Transparent
|
|
Product Type
|
Heat Activated Cover Tape
|
|
Recommended Application
|
Discrete, IC, LED, Passive, WLCSP
|
|
Tape Type
|
Static Dissipative
|
Details
- Two-sided coating for good antistatic performance
- Appropriate to use with different types of electronic components
- Works well on 3M™ Polycarbonate Carrier Tapes and some other types of carrier substrates
- 480 m rolls are available in standard widths of 5.4 mm, 9.3 mm, 13.3 mm, 21.3 mm, 25.5 mm, 37.4 mm and 49.4 mm
- Contact 3M for other widths and reel lengths per your requirements

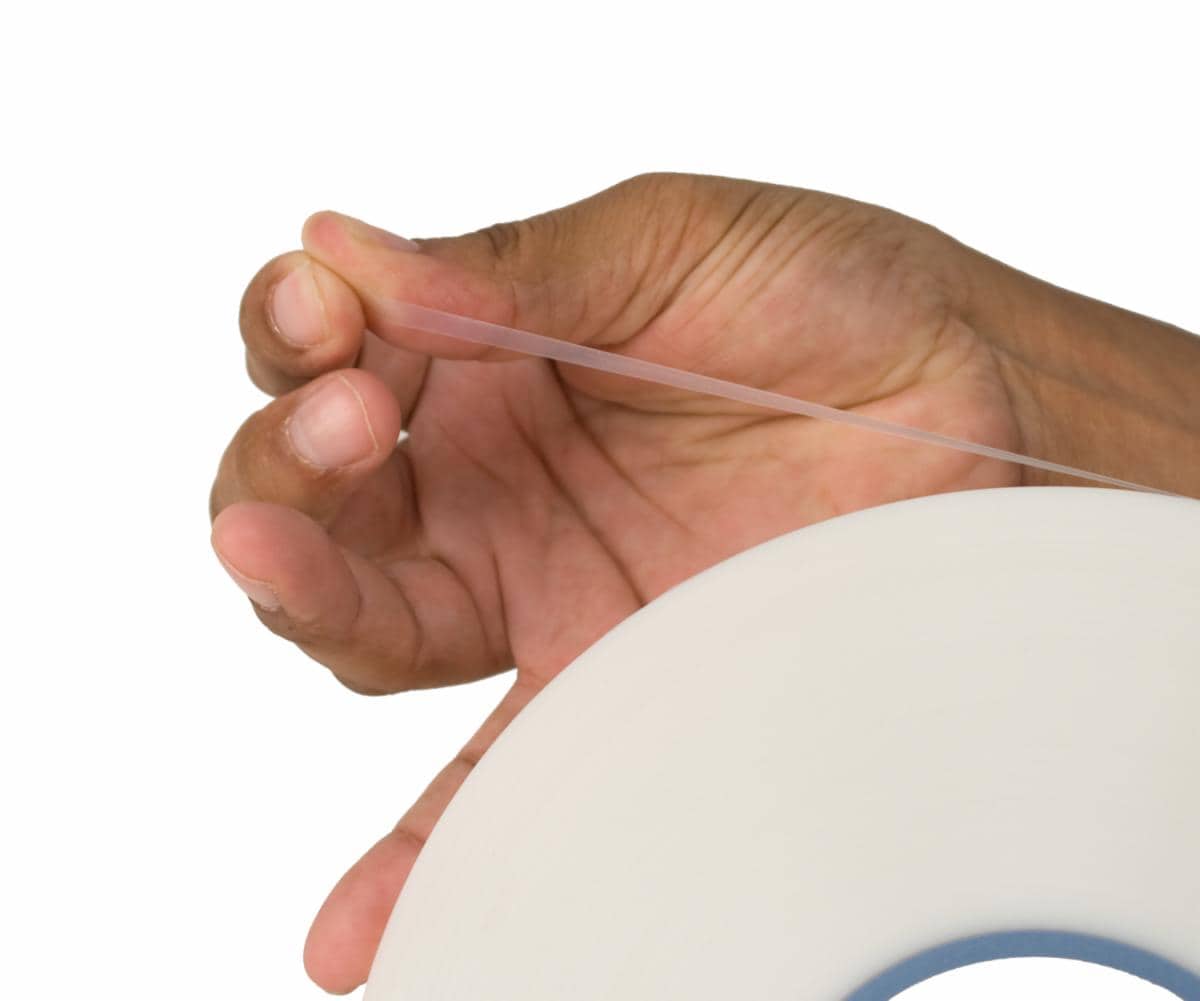

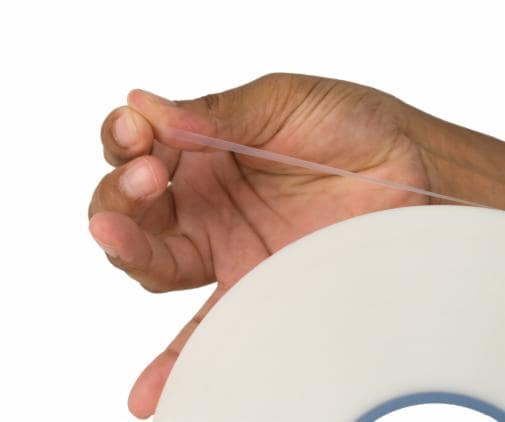

3M™ Static Dissipative Heat Activated Cover Tape 2675 is a transparent, two sided static dissipative polyester film tape with a heat activated adhesive.
3M cover tape 2675 is designed for use with different types of electronic components.
