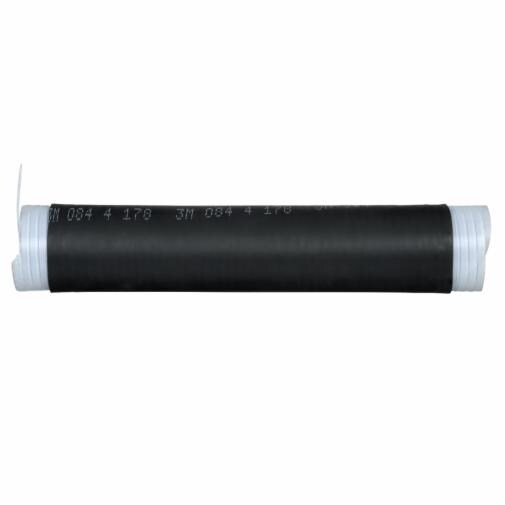

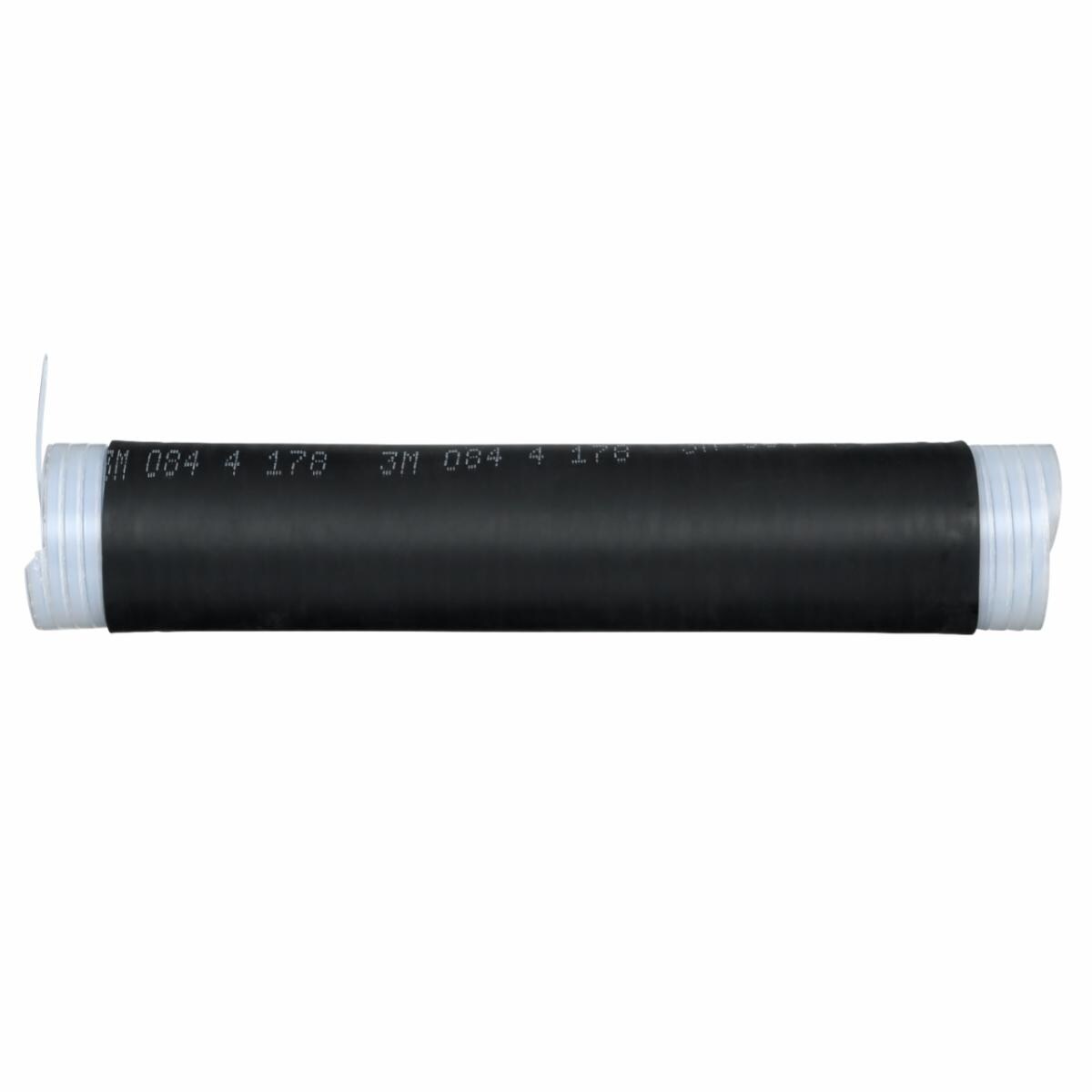

  7. 3M™ Cold Shrink Insulator 8429-15, 900-1000 kcmil (500 mm²), 10/case

3M™ Cold Shrink Insulator 8429-15, 900-1000 kcmil (500 mm²), 10/case

Part Number 8429-153M ID 7010418000UPC 00054007441984
  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
  • Simple installation which requires no tools
  • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
  • Made of black EPDM rubber
 More...
View all details
View Legal Disclaimer
For industrial/occupational use only. Not for consumer sale or use.
Specifications
Attribute Name
Value
Brand
3M™
Cable Shielding
Tape Shield, UniShield®, Wire Shield
Cable Type
Power Cable
Case Quantity
10
Conductor Material
Aluminum, Copper
Conductor Sizes (Imperial)
1000 kcmil, 900 kcmil
Conductor Sizes (Metric)
456 mm²
Inner Diameter After Shrink (Imperial)
1.268 in
Inner Diameter After Shrink (Metric)
32.2 mm
Inner Diameter Before Shrink (Imperial)
2.669 in
Inner Diameter Before Shrink (Metric)
67.8 mm
Material
EPDM Rubber
Maximum Conductor Size (Imperial)
1000 kcmil
Maximum Conductor Size (Metric)
500 mm²
Maximum Connector Length
11.0 in
Maximum Connector Length (Metric)
279.4 mm
Maximum Operating Temperature (Celsius)
90 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
194 Degree Fahrenheit
Minimum Conductor Size (Imperial)
900 kcmil
Minimum Conductor Size (Metric)
456 mm²
Minimum Operating Temperature (Celsius)
-40 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
-40 Degree Fahrenheit
Model
Cold-shrink
Number of Conductors
1
Overall Length (Metric)
381 mm
PlantAnalystID
ABBA-Z1GUQ
Product Type
Splice
Relaxed Tube Length
15 in
Relaxed Tube Length (Metric)
381 mm
RoHS 2011/65/EU Compliant
Yes
RoHS EU Comments
RoHS 2011/65/EU compliant without exemption
Splice Type
Cold Shrink
TDS Required
Yes
Voltage
1 kV
Details
  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
  • Simple installation which requires no tools
  • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
  • Made of black EPDM rubber
  • Made of EPDM rubber which contains no chlorides or sulfur
  • Withstands temperatures of -40 to 194 degrees F (-40 to 90 degrees C)
  • Environmental sealing for communication and other non-electrical applications

3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are designed using 3M’s proprietary cold shrink delivery system. Products are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core (unwinding) after positioning the splice allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated EPDM material promotes a permanent, durable environmental seal and insulation, with a typical operating temperature range from -40–194°F (-40–90°C). The 8420 insulator meets requirements of ANSI C119-1 and Western Underground Guide 2.14 for secondary splices rated up to 1 kV. Applications: Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splicing rated to 1000 V. Good for repairs and environmental sealing for communication and other non-electrical applications. Important: Use insulation jacket or connector O.D. for final ordering criteria. * Mastic pads included for cable O.D. build-up. ** Kit contains adapters. *** These sizes are listed for availability only and are not designed to be used as primary insulation. These tubes are for conduit sealing and breakouts. ****Maximum connector length: 5.625” “Point of Purchase” packaging designated by “P”. Example: 8423-6P
