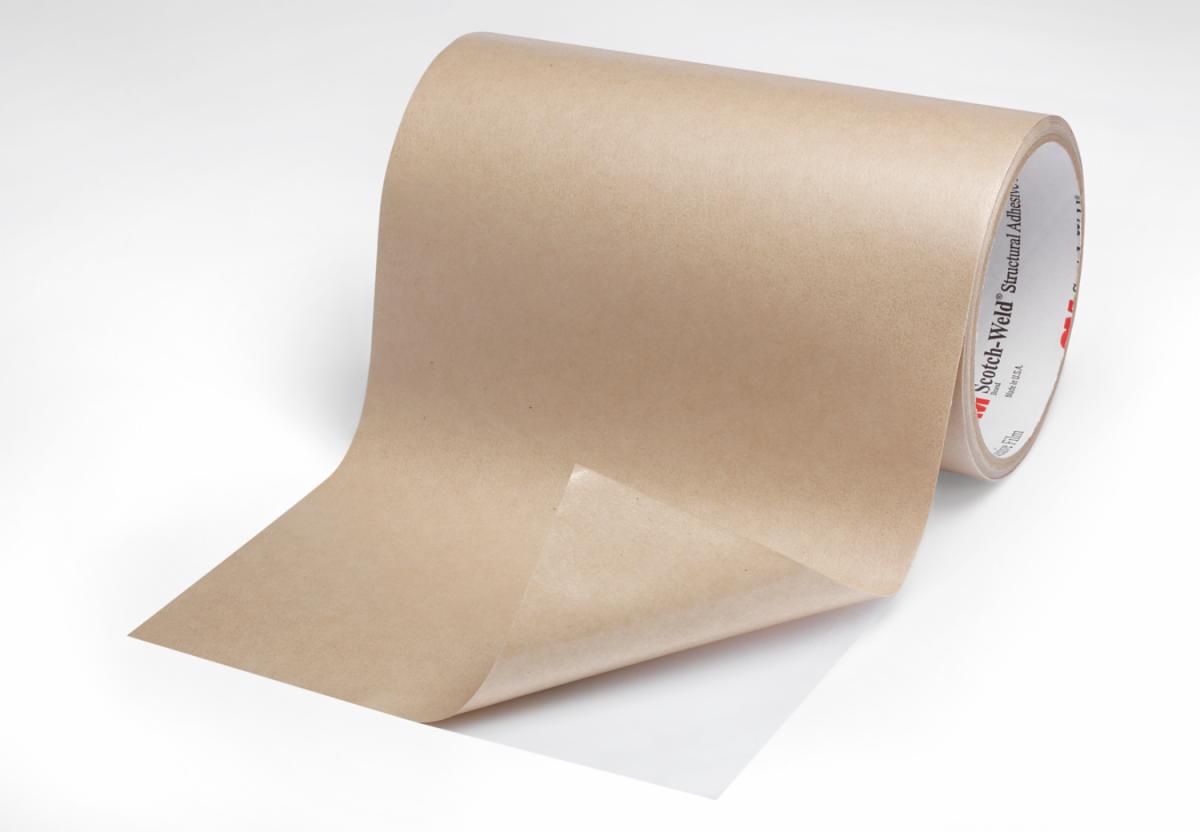

3M™ Thermal Bonding Film AF42, 41 in x 50 yd, 4 mil, 1 Roll/Case
- Part Number AF42
- 3M Product Number AF42
- 3M ID 7010385337
- UPC 00048011652030
Details
Highlights
- 350 degree F (177 degree C) cure
- Storage at or below 40 degree F (4 degree C)
- Cures clear
- Flexible for dissimilar substrates, high peel strength
- Non tack, low flow
- 3 mil and 4 mil thick versions
3M™ Thermal Bonding Film AF42 is an epoxy, thermoset film adhesive developed for structural bonding of metal, glass and other engineering grade substances.
This hot melt film adhesive is a curable epoxy-based film that provides a structural against metal, glass and other substrates. It provides for excellent solvent, humidity resistance, is tack free and possesses low flow characteristics.
Typical properties
Resources
Similar products
| Adhesive Type | Epoxy Film Adhesive | |
| Brands | 3M | |
| Curing Temperature (Celsius) | 177 ℃ | |
| Curing Temperature (Fahrenheit) | 350.6 ℉ | |
| Maximum Operating Temperature (Celsius) | 121 ℃ | |
| Maximum Operating Temperature (Fahrenheit) | 249.8 ℉ | |
| Nominal Adhesive Thickness (Imperial) | 0.004 in | |
| Nominal Adhesive Thickness (Metric) | 0.1 mm | |
| Overall Length (Imperial) | 50 yd | |
| Overall Length (Metric) | 45.7 m | |
| Overall Thickness (Imperial) | 0.004 in | |
| Overall Thickness (Metric) | 0.1 mm | |
| Overall Width (Imperial) | 41 in | |
| Overall Width (Metric) | 1041.4 mm | |
| Smallest Saleable Unit | Roll | |
| Storage Environment | Freezer Storage |
3M™ Thermal Bonding Film AF42, 41 in x 50 yd, 4 mil, 1 Roll/Case
