3M™ Mini Stack Connector Wiremount Socket 3S5 Series

  • Part Number 3S504-S330-B00 PN
  • 3M ID B5005281005

Provides a reliable connection with a simple, time-saving termination process while reducing the required board footprint

Compact form factor allows for 30% more board space in comparison with the 3M™ Mini-Clamp Connectors

Wiring time is reduced by approximately 60% compared to crimping connectors

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 927KB)

spinner


Typical properties

Details

Highlights
  • Provides a reliable connection with a simple, time-saving termination process while reducing the required board footprint
  • Compact form factor allows for 30% more board space in comparison with the 3M™ Mini-Clamp Connectors
  • Wiring time is reduced by approximately 60% compared to crimping connectors
  • Terminate 3 or 4 wires in a single action
  • Suitable for wiring applications 30AWG to 22AWG and requiring 32V, 2.0A max
  • Feature highly reliable double IDC termination
  • Contact integrated into housing to simplify handling
  • No need to strip wire to minimize waste and damaging wires

3M™ Mini Stack Connector Wiremount Socket, 3S5 Series, provides a reliable connection with a simple, time-saving termination process while reducing the required board footprint. The compact form factor allows for 30% more board space in comparison with the 3M™ Mini-Clamp Connectors. These connectors terminate 3 or 4 wires in a single action and are compatible with wire gauges from 30AWG to 22AWG with highly reliable double IDC termination.

This connector is a miniature IDC connector for sensor wire connections and features:

1) Compact design: The compact form factor allows for 30% more board space in comparison with the 3M™ Mini-Clamp Connectors.

2) Time-saving termination: Wiring time is reduced by approximately 60% compared to crimping connectors.

3) Simple termination: The simple termination helps to reduce errors and provide consistent, reliable connections. With contacts integrated into the housing, handling is simplified with only a single part to manage. There is no need to strip wires and create waste. All of the wires are terminated simultaneously.

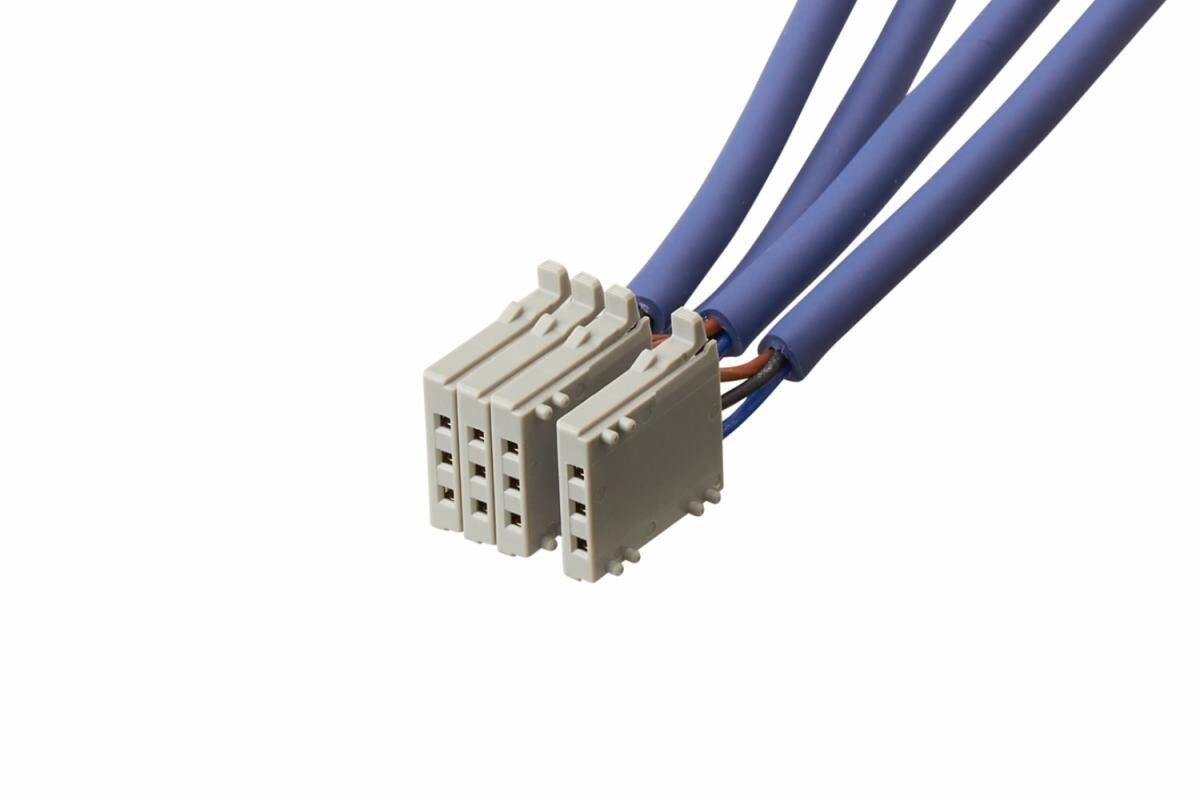

Easy mating and unmating: The wiremount connector is easily mated and unmated with the boardmount header by stacking four wiremount connectors together to form a block-style connector that is easier to handle compared to individual connectors.
