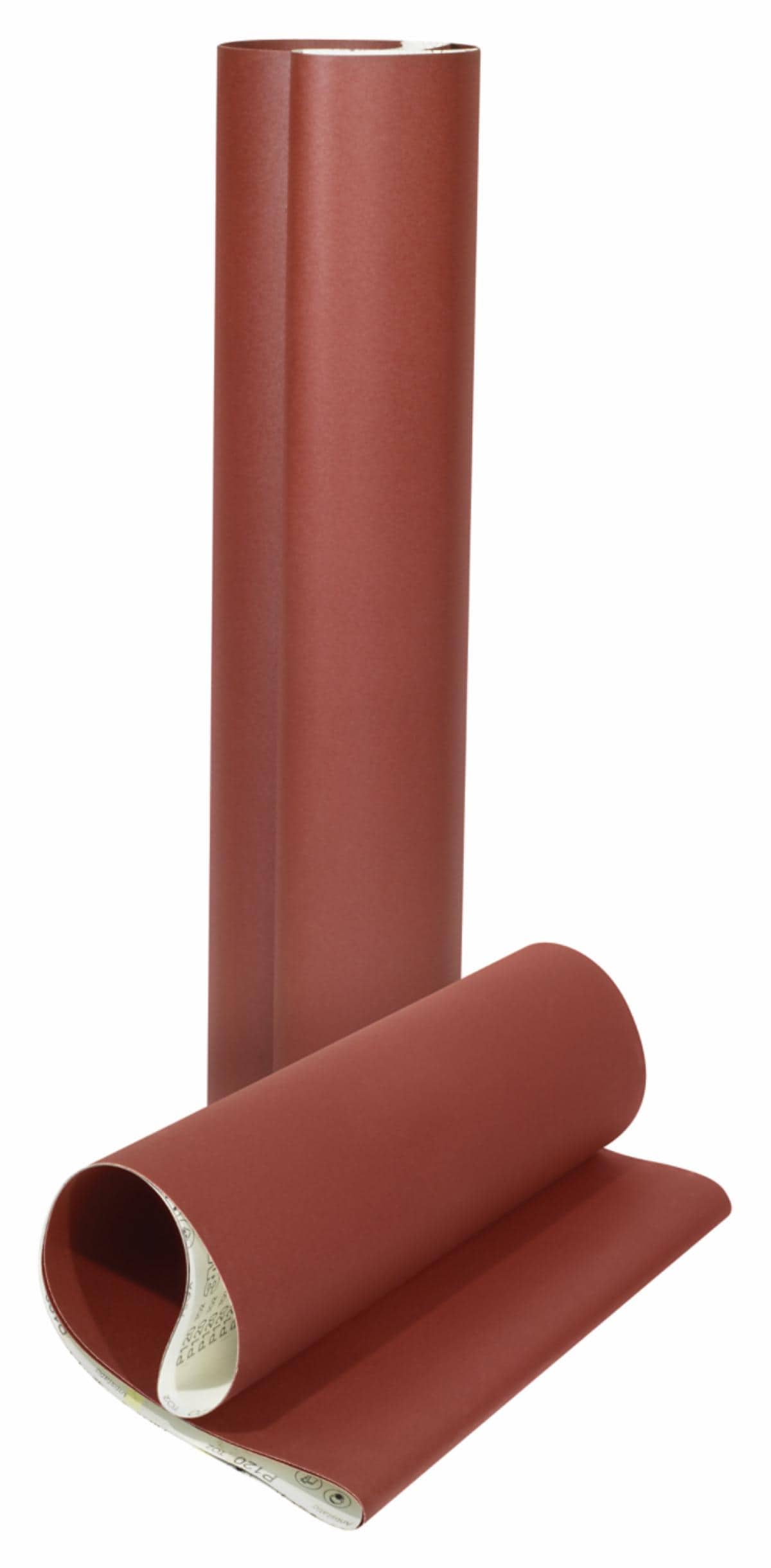

3M™ Paper Belt 364UZ

23 Products

1 of 1

Hover to zoom

F-weight heavy paper backing provides durability and smooth operation in either direction
Anti-static treatment helps manage dust and loading
Sine wave splice prevents hinging in splice area, resists fatigue, and minimizes chatter marks
Premium aluminum oxide mineral provides aggressive cut and long abrasive life

View all details

For industrial/occupational use only. Not for consumer sale or use.

Overall Width (Imperial)

Overall_Width_Imperial

Overall Length (Imperial)

Overall_Length_Imperial

Grit

23 Products Available

Available options:

Overall Width (Imperial), Overall Length (Imperial) and Grit

Specifications

Attribute Name	Value
Abrasive Material	Aluminum Oxide
Alternative Sale Availability	6. This item is for industrial use only and there are no VOC restrictions.
Application	Sanding
Backing Material	Paper
Backing Weight	F Weight
Brand	3M™
Coat Type	Closed Coat, Open Coat
Color Family	Red
Equipment - Machines	Wide Belt Sanders
Flex Type	Full-flex
For Use On	Hardwood, Softwood
Grit	P100, P120, P150, P180, P220
Industries	Woodworking
Net Weight (Imperial)	19.18 lb, 20.5 lb
Net Weight (Metric)	8.7 kg, 9.3 kg
Overall Length (Imperial)	103 in, 128 in, 54 in, 75 in
Overall Length (Metric)	137.16 cm, 1905 mm, 2616.2 mm, 3251.2 mm
Overall Width (Imperial)	103 in, 36 in, 37 in, 43 in, 50 in, 52 in, 54 in
Overall Width (Metric)	1092.2 mm, 1270 mm, 1320.8 mm, 1371.6 mm, 914.4 mm, 939.8 mm
Position	Better
Primary Application	Other Door Assembly Applications
Product Color	Maroon
Product Form	Belt
Size (Imperial)	103 in x 54 in, 36 in x 75 in, 37 in x 75 in, 43 in x 75 in, 50 in x 103 in, 52 in x 103 in, 52 in x 128 in, 52 in x 75 in, 54 in x 103 in
Size (Metric)	1092.2 mm x 1905 mm, 1270 mm x 2616.2 mm, 1320.8 mm x 1905 mm, 1320.8 mm x 2616.2 mm, 1320.8 mm x 3251.2 mm, 1371.6 mm x 137.16 cm, 1371.6 mm x 2616.2 mm, 914.4 mm x 1905 mm, 939.8 mm x 1905 mm
Splice Type	Film-lok, Sine Wave, Sine-lok
Substrate	Hardwood, Softwood
Substrate Category	Wood

Product Details

F-weight heavy paper backing provides durability and smooth operation in either direction
Anti-static treatment helps manage dust and loading
Sine wave splice prevents hinging in splice area, resists fatigue, and minimizes chatter marks
Premium aluminum oxide mineral provides aggressive cut and long abrasive life
Open coat provides fast stock removal

3M™ Paper Belt 346UZ is constructed with a premium aluminum oxide mineral. It is an open coat construction for loading resistance and is coated on an F-weight paper backing to efficiently sand and finish. F-weight is one of the heaviest, most rigid paper backings available and will achieve finer finishes than cloth backed belts in the same grade.

The paper backing of our 3M™ Paper Belt 346UZ provides smooth operation and durability. The abrasive side features an open coat structure. The open coat construction resists loading better than closed coat belts, particularly on soft wood. This belt also features our 3M dust management technology that reduces static cling in the dust particles, allowing them to be evacuated more easily when coupled with an efficient dust collection system. To support desired finishing results, the belt ends are joined using a sine wave splice that promotes belt strength and resists hinging and splice fatigue. The splice travels smoothly over contact wheels and platens, minimizes chatter marks, and promotes smooth operation in either direction for consistent finishing results.

3M™ Paper Belt 346UZ features a premium aluminum oxide abrasive, which is a popular choice among industrial professionals because of its cut-rate and long life. This mineral is a tough, durable abrasive that self-fractures to expose fresh cutting edges in use, whereas traditional abrasives, such as garnet, quickly wear down with use. Due to its high cut-rate, hardness, strength, and low heat retention, aluminum oxide mineral is widely used for sanding and finishing applications. Aluminum oxide is suitable on a wide variety of substrates in both woodworking and metalworking, including ferrous alloys.

Aluminum oxide is suitable for a wide variety of materials in both woodworking and metalworking, including ferrous alloys.

Abrasive belts come in many different widths and lengths and are used on a variety of different belt sanders for many different applications on both wood and metal. 3M offers a broad selection of belts to fit most any industrial belt sander. Wider belts are used to dimension and sand large wood panels, smooth rough cut edges of metal sheets, or add a grain pattern to stainless steel sheets. Medium-width belts fit onto edge or portable belt sanders for sanding or blending wood pieces such as cabinet doors.

Learn more about 3M Industrial Products for Woodworking (PDF, 6.4 Mb)

Resources

Brochures

3M™ Industrial Products for Woodworking (PDF, 6.3MB)

Catalogs

3M™ Industrial Products for Woodworking Catalog (PDF, 20.6MB)

Posters

3M™ Woodworking Abrasive Belt Portfolio (Poster) (PDF, 2.6MB)

Safety Inserts

3M™ Coated Abrasive Belts and Scotch-Brite™ Surface Conditioning Belts (PDF, 483.6KB)
