3M™ Acrylic Plus Tape WT4112

  • 3M Product Number WT4112
  • 3M ID B40065715

Excellent for attaching weatherstrip and/or gasket seals in automotive applications

Features two adhesives – one on each side of the tape for effective bondin

Non-liner-side features a heat-activated adhesive for primerless bonding to ethylene propylene diene terpolymer/thermoplastic elastomer (EPDM/TPE) materials commonly used by sealing Tier

View more details
Frequently viewed resources

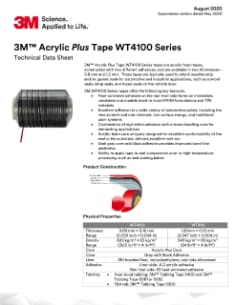

Tech Data Sheet (PDF, 277KB)

Details

Highlights
  • Excellent for attaching weatherstrip and/or gasket seals in automotive applications
  • Features two adhesives – one on each side of the tape for effective bondin
  • Non-liner-side features a heat-activated adhesive for primerless bonding to ethylene propylene diene terpolymer/thermoplastic elastomer (EPDM/TPE) materials commonly used by sealing Tier
  • Liner-side adhesive is designed for traditional, low surface energy and mar-resistant automotive paint system
  • Conformable closed cell acrylic foam core delivers good stress relaxation under load
  • Acrylic foam core helps conform the seal to the substrate, delivers excellent wet-out
  • Red 3M Branded liner is silicone-coated on one side for easy releas
  • Dark gray color provides good bond-line appearance
  • Supplied on a levelwound roll for process optimization

3M™ Acrylic Plus Tape WT4112 is a good choice for attaching EPDM/TPE components such as gaskets and seals. It features two adhesives, one on each side of a viscoelastic acrylic foam core, designed for robust performance even on complex contours and difficult automotive paint surfaces. A heat-activated adhesive forms an immediate bond to EPDM/TPE materials. Core provides stress relaxation when exposed to high application loads and maintains tight bond-line aesthetics under normal conditions.

  • Automation ready icon of a machine arm.
    Automation Ready
  • Good comformability icon of a car
    Good Conformability
  • Sealing icon
    Sealing
  • Stress Relaxation Performance icon
    Stress Relaxation Performance
  • Exploded view of 3M™ Acrylic Plus Tape WT4112 showing the different layers.

    For durable attachment of weatherstripping and gasket seals to modern paint systems

    Developed specifically for attaching gasket and weatherstrip seals in automotive applications, 3M™ Acrylic Plus Tape WT4112 features our heat-activated adhesive formulated for an immediate, consistent and durable bond to EPDM/TPE and other elastomeric materials. The adhesive is applied to the non-liner side of a viscoelastic acrylic foam core, which provides excellent conformability and wet-out that helps maintain seal integrity. The liner side of the core features our pressure-sensitive adhesive for bonding to a range of clear coats, MVSS, powder coats and other mar- and scratch-optimized auto paint systems. The dark gray color of this OEM approved tape helps create good bond-line appearance. The red Branded 3M liner is silicone-coated on one side, suitable for heat-bond tabbing. The tape is supplied on a levelwound roll for process optimization.

    1. 3M Branded liner
    Easy to identify, difficult to imitate: The red, 3M branded liner on 3M™ Acrylic Plus Tapes allows customers to quickly confirm that they are receiving the 3M quality they expect from their purchase.

    2. Liner side adhesive
    Liner-side adhesive is formulated for very high initial and final adhesion to scratch and mar-resistant paint systems.

    3. Viscoelastic acrylic foam core
    Exclusive to 3M, the acrylic foam core of 3M™ Acrylic Plus Tapes is engineered for stress relaxation when exposed to high stress loads, and conforms reliably even when the surface is curved or angled. This conformability helps maintain strong and consistent seal.  It maintains consistent bondline aesthetics under normal stress loads. The inconspicuous dark gray color of 3M tape WT4112 helps to ensure high satisfaction among consumers.

    4. Non-liner side adhesive
    The non-liner side forms an immediate, consistent and durable bond to most EPDM formulations and TPE materials.

    Helps optimize application processes
    3M™ Acrylic Plus Tape WT4112 is supplied on a levelwound roll to enable a range of options for efficient processing including manual, semi-automated and automation-ready solutions. It can seamlessly integrate into current semi-automated and fully automated tape application processes and allows for continuous lamination to seals during extrusion and post-processing.


  • Top down view of an SUV showing bubbles where 3M Acrylic Plus Tape can be used.
  • Product usage
    1. Cowl covers
    2. Drip rails
    3. Hood seals
    4. Lamp seals
    5. Primary door seals
    6. Secondary door seals
    7. Sunroof seals
    8. Trunk seals
    9. Liftgate seals

Performance and thicknesses for automotive sealing applications

3M™ Acrylic Foam Tapes and 3M™ Acrylic Plus Foam Tapes
Chart showing the performance and thicknesses for automotive sealing applications
Automotive sealing icon of a car under water droplets

Typical properties

Resources

Connect with us. We’re here to help.

Need help finding the right product for your project? Contact us if you need product, technical or application advice or want to collaborate with a 3M technical specialist 1-800-328-1684

Frequently asked questions

3M Acrylic Plus Tape WT4108 and WT4112 complement 3M’s already extensive line of weatherstrip attachment solutions. Utilizing proprietary technology, this weatherstrip attachment tape is designed to adhere to a wide variety of paints, including low surface energy and improved scratch- and mar-resistant paints.

3M Acrylic Plus Tape WT4100 Series tapes offer customers more robust solutions for weatherstrip applications, including primary door seals, lamp seals, and sunroof seals. This product offers customers the potential for:

• Heat-activated adhesive on the non-liner side forms an immediate, consistent and durable bond to most EPDM formulations and TPE materials • Excellent adhesion to a wide variety of automotive paints, including the improved scratch-and mar-resistant, low surface energy, and traditional paint systems • Combination of high initial adhesion with a stress handling core for demanding applications • Acrylic foam core uniquely designed for excellent conformability of the seal to the substrate, delivers excellent wet-out • Helps provide design flexibility • Can be applied as a continuous seal of the weatherstrip profile to the vehicle sheet metal, lasting the life of the vehicle • Dark gray core and black adhesive provides improved bond-line aesthetics

3M Acrylic Plus Tapes offer a wide range of performance enhancements over conventional 3M AFT Tapes for a variety of applications. The product is more robust, allowing for greater flexibility in design on future programs and improved reliability on existing programs. 3M Acrylic Plus Tape WT4100 Series is the most recent in tape technology from the tape leader, 3M.

The processing, tabbing, and splicing of 3M WT4100 tapes will be comparable to other heat-activated 3M Acrylic Plus and 3M Acrylic Foam Tapes.

We recommended 3M™ Tabbing Tape 5400, 5081, or 5082 for heat-bond tabbing or 5300 for pressure sensitive adhesive tabbing. An extended tab liner tab or heatbond tab is recommended instead of a pressure sensitive adhesive tab.

There is a simple procedure that will demonstrate the bond strength. Remove the liner from the taped part and laminate a strip of anodized aluminum. When peeling the aluminum off at a 90° angle, you should witness a cohesive failure of the tape, not failure of the heat-bond adhesive to the rubber.

Yes, you still need to use a promoter to adhere to many plastics trim components, EPDM and TPV seals. As with conventional 3M Acrylic Foam Tapes, no adhesion promoter is necessary for adhesion to paint. Work with your application engineer to determine feasibility for your specific application.

Yes. Cleaning is recommended if contaminants are present that may impede tape adhesion, such as dirt, oils, or dust. It is a good safeguard in assembly plants and has been made much easier with the development of 3M™ Scotch-Brite™ High Performance Wipes.

The product is designed to sustain a temperature range of -40°F to 200°F (-40°C to 90°C) over the life of the vehicle.

For information about tape performance at high vs. low temperatures, please contact your 3M application engineer representative.
