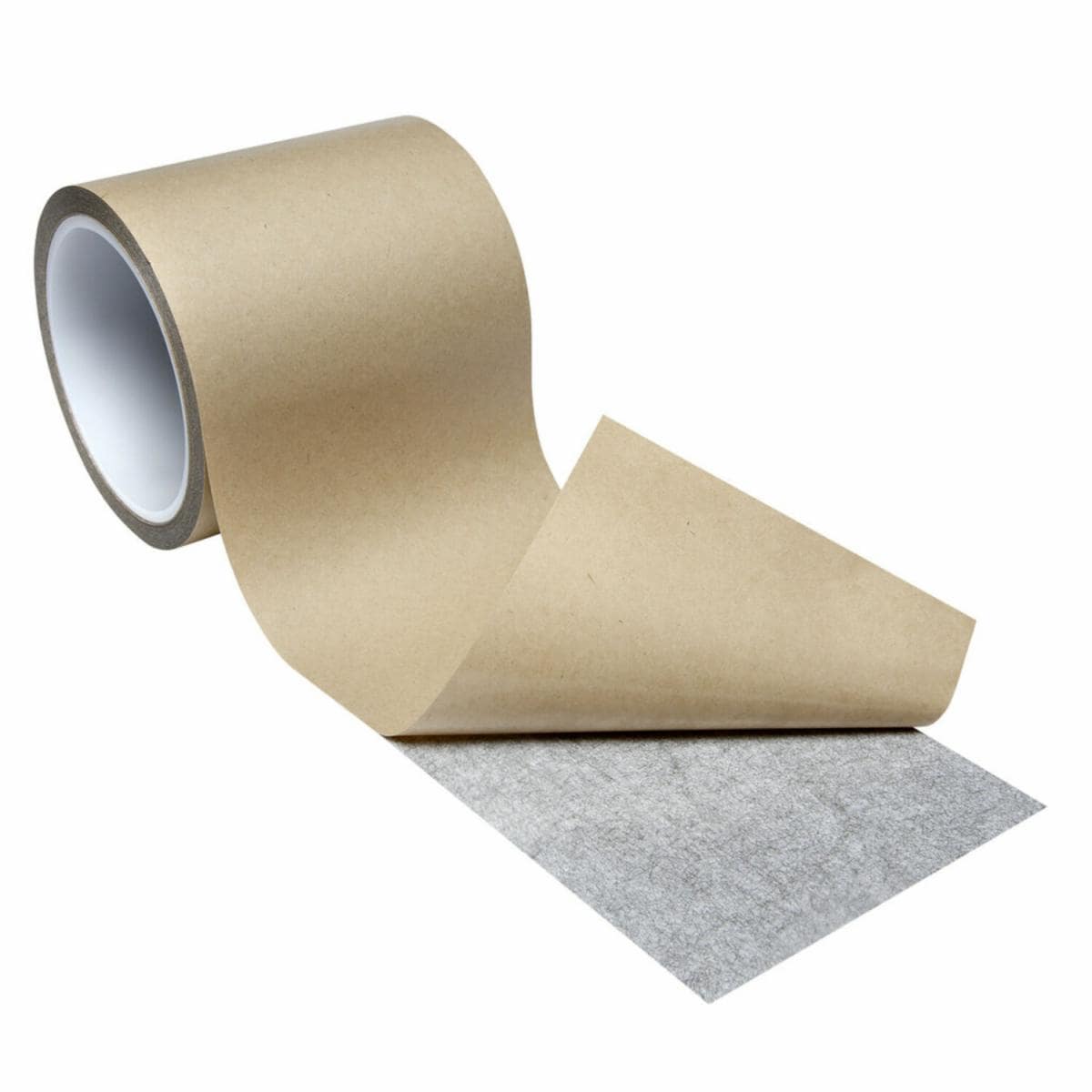

3M™ Electrically Conductive Adhesive Transfer Tape 9713

  • Options available
  • | Select product options for IDs.

Isotropic XYZ-axis electrical conductivity

Thinner adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9712

Nickel-plated carbon fiber scrim (a more conductive scrim)

View more details
Frequently viewed resources
PDF (1) Copy 26Tech Data Sheet (PDF, 79KB)

Details

Highlights
  • Isotropic XYZ-axis electrical conductivity
  • Thinner adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9712
  • Nickel-plated carbon fiber scrim (a more conductive scrim)
  • Good contact with both hard and soft surfaces
  • Excellent die-cutting and converting capabilities
  • Can be applied in strips or die cut to specific shapes and sizes
  • Standard adhesion

3M™ Electrically Conductive Adhesive Transfer Tape 9713 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive nickel-coated carbon fiber scrim carrier. It has a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This electrically conductive tape can be die cut and offers excellent workability and easy handling. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

  • Icon of parallel lines flexing vertically representing conformability.
    Conformability
  • Icon of a roll of tape next to a gear representing convertibility.
    Convertability
  • Icon of a substrate peeling off of a surface representing good adhesive.
    Good Adhesion
  • Icon of a circle with lines exiting at every axis representing versatility.
    Versatility

Product construction
Cross-section of product construction listing the four layers of conductive adhesive, conductive nonwoven, conductive adhesive, and the release liner.

  • Cross-section of appropriate product usage with the conductor filler adhesive in between two conductive substrates.
  • Product usage

    3M™ Electrically Conductive Adhesive Transfer Tape 9713 delivers a broad spectrum of performance across frequencies in grounding, attaching and electrostatic discharge (ESD) applications.


    • Printed circuit boards
    • Flexible printed circuits
    • Chassis
    • Sensors
    • Bond line gaps
    • EMI shields
    • EMI gaskets
Set of icons representing recommended product applications of attaching, electrostatic discharge (ESD), grounding and interconnecting.

Typical properties

Resources

Connect with us. We’re here to help.

Need help finding the right product for your project? Contact us if you need product, technical or application advice or want to collaborate with a 3M technical specialist
  • All fields are required unless indicated optional

  • 3M takes your privacy seriously. 3M and its authorized third parties will use the information you provided in accordance with our Privacy Policy to send you communications which may include promotions, product information and service offers. Please be aware that this information may be stored on a server located in the U.S. If you do not consent to this use of your personal information, please do not use this system.

  • Submit

Our apologies...

An error has occurred while submitting. Please try again later...

Thank you!

Your form was submitted successfully

Similar products

Overall Width (Metric) 304.8 mm, 101.6 mm, 25.4 mm, 6.35 mm, 609.6 mm, 12.7 mm
Total Tape Thickness without Liner (Metric) 0.089 mm
Overall Width (Imperial) 12 in, 4 in, 1 in, 0.25 in, 24 in, 0.5 in
Total Tape Thickness without Liner (Imperial) 3.5 mil
Overall Length (Metric) 32.918 m, 9.144 m
Overall Length (Imperial) 36 yd, 10 yd
