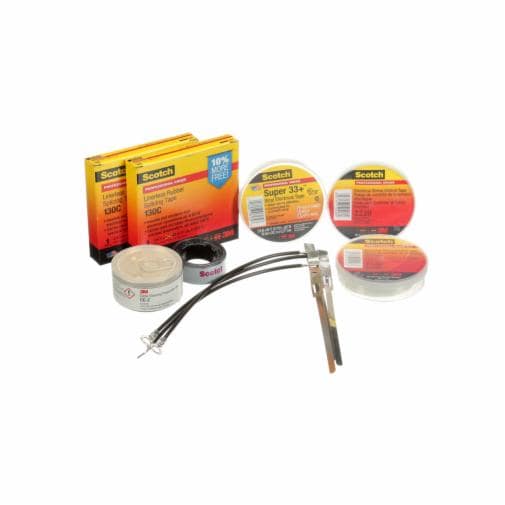

  6. Scotch® Tape Termination Kit 5702, 5-15 kV, 250-1000 kcmil, Tape Shield, 3 terminations/kit, 1 kit/Case

Scotch® Tape Termination Kit 5702, 5-15 kV, 250-1000 kcmil, Tape Shield, 3 terminations/kit, 1 kit/Case

Part Number 5702-TAPE-KIT3M ID 80902002007UPC 00054007112556
  • Terminates solid dielectric shielded power cables rated 5 to 15 kV
  • Withstands voltages from 5 to 15 kV
  • Comes with sufficient materials to make 3 terminations
 More...
View all details
View Legal Disclaimer
For industrial/occupational use only. Not for consumer sale or use.
Specifications
Attribute Name
Value
Brand
Scotch™
Cable Shielding
Concentric Neutral (CN), Tape Shield, UniShield®, Wire Shield
Case Quantity
3
Conductor Sizes (Imperial)
1000 kcmil, 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil
Family
Tape Termination Kits
Indoor/Outdoor
Indoor
Insulation Level
100%, 133%
Insulation Rejacketing
No
Lug/Stem Connector Included in Kit
No
Manufacturing Origin
USA
Maximum Installed Length
(Concentric Neutral, 15 kV) 18.50 in, (Concentric Neutral, 5 kV) 11.25 in, (Concentric Neutral, 8 kV) 13.50 in, (UniShield®, 15 kV) 18.50 in, (UniShield®, 5 kV) 11.25 in, (UniShield®, 8 kV) 13.50 in, (Wire Shielded Cable, 15 kV) 20.00 in, (Wire Shielded Cable, 5 kV) 12.75 in, (Wire Shielded Cable, 8 kV) 15.00 in, Wire Shielded Cable: 5 kV: 12.75 in
Number of Conductors
1
Number of Skirts
0
Voltage
15 kV, 5 kV, 8 kV
Details
  • Terminates solid dielectric shielded power cables rated 5 to 15 kV
  • Withstands voltages from 5 to 15 kV
  • Comes with sufficient materials to make 3 terminations

Scotch® Termination Kit 5701 includes sufficient materials to make 3 terminations. This kit is designed to terminate solid dielectric shielded power cables with tape shield, wire shield, UniShield® and concentric neutral construction in weather protected areas.
