3M™ Stacked Sleeve Jacket Kit SJ-2SS, Jacketed concentric neutral, 6 per case

3M™ Stacked Sleeve Jacket Kit SJ-2SS, Jacketed concentric neutral, 6 per case

Part Number SJ-2SS
3M ID 7000149313
UPC 50054007507784,00054007507789

Designed for jacketing inline splices on jacketed concentric neutral (JCN) cables

Resists fungus, acids and alkalis

Suitable for use on direct burial, aerial and submersible applications

Frequently viewed resources

Tech Data Sheet (PDF, 60KB)Safety Data Sheet (PDF, 0B)

Conductor Sizes (Imperial)	3/0 AWG
Cable Shielding	Jacketed Concentric Neutral (JCN)
Splice Type	Rejacketing
Insulation Outer Diameter (Metric)	29.21 mm, 29.464 mm, 29.718 mm, 34.544 mm, 34.798 mm, 35.052 mm, 35.306 mm, 37.846 mm, 38.1 mm, 37.592 mm, 38.354 mm, 36.322 mm, 35.56 mm, 35.814 mm, 36.068 mm, 41.656 mm, 41.91 mm, 42.164 mm, 42.418 mm, 41.402 mm, 42.672 mm, 36.576 mm, 37.084 mm, 36.83 mm, 37.338 mm, 42.926 mm, 46.482 mm, 46.736 mm, 46.99 mm, 47.244 mm, 31.242 mm, 31.496 mm, 30.988 mm, 31.75 mm, 48.26 mm, 48.514 mm, 47.498 mm, 47.752 mm, 48.768 mm, 48.006 mm, 45.72 mm, 45.974 mm, 46.228 mm, 45.466 mm, 38.862 mm, 39.37 mm, 39.624 mm, 39.878 mm, 39.116 mm, 40.132 mm, 32.004 mm, 32.512 mm, 32.258 mm, 32.766 mm, 33.02 mm, 30.226 mm, 30.48 mm, 30.734 mm, 29.972 mm, 38.608 mm, 40.386 mm, 40.64 mm, 40.894 mm, 41.148 mm, 43.434 mm, 43.688 mm, 43.942 mm, 43.18 mm, 44.196 mm, 33.274 mm, 33.528 mm, 33.782 mm, 34.036 mm, 34.29 mm, 44.45 mm, 44.704 mm, 44.958 mm, 45.212 mm, 61.976 mm, 61.468 mm, 61.722 mm, 62.23 mm, 67.056 mm, 67.31 mm, 67.564 mm, 67.818 mm, 56.642 mm, 56.896 mm, 57.15 mm, 57.404 mm, 68.072 mm, 70.866 mm, 71.12 mm, 71.374 mm, 49.022 mm, 49.276 mm, 49.53 mm, 49.784 mm, 52.324 mm, 52.578 mm, 52.832 mm, 52.07 mm, 64.262 mm, 64.516 mm, 64.77 mm, 65.024 mm, 65.278 mm, 65.532 mm, 65.786 mm, 66.04 mm, 66.294 mm, 66.548 mm, 66.802 mm, 54.356 mm, 54.61 mm, 54.864 mm, 55.118 mm, 50.038 mm, 50.292 mm, 50.546 mm, 50.8 mm, 62.484 mm, 62.738 mm, 62.992 mm, 63.246 mm, 63.5 mm, 63.754 mm, 64.008 mm, 68.58 mm, 68.834 mm, 69.088 mm, 68.326 mm, 53.848 mm, 53.086 mm, 53.34 mm, 53.594 mm, 54.102 mm, 56.134 mm, 55.372 mm, 56.388 mm, 55.626 mm, 55.88 mm, 60.706 mm, 60.96 mm, 59.944 mm, 60.198 mm, 60.452 mm, 61.214 mm, 71.882 mm, 72.136 mm, 72.39 mm, 72.644 mm, 71.628 mm, 72.898 mm, 73.152 mm, 73.406 mm, 69.342 mm, 69.596 mm, 70.104 mm, 70.358 mm, 69.85 mm, 70.612 mm, 51.054 mm, 51.816 mm, 51.308 mm, 51.562 mm, 57.658 mm, 57.912 mm, 58.166 mm, 58.42 mm, 58.674 mm, 58.928 mm, 59.182 mm, 59.436 mm, 59.69 mm, 73.914 mm, 74.168 mm, 74.422 mm, 74.676 mm, 73.66 mm, 74.93 mm, 76.2 mm, 75.184 mm, 75.692 mm, 75.946 mm, 75.438 mm
Insulation Outer Diameter (Imperial)	1.15 in, 1.16 in, 1.29 in, 1.2 in, 1.31 in, 1.28 in, 1.43 in, 1.39 in, 1.3 in, 1.41 in, 1.42 in, 2.35 in, 2.36 in, 2.32 in, 2.33 in, 2.34 in, 2.14 in, 2.17 in, 2.18 in, 2.15 in, 2.19 in, 2.16 in, 2.21 in, 2.1 in, 2.22 in, 2.23 in, 2.02 in, 2.03 in, 2.04 in, 2.05 in, 2.09 in, 2.11 in, 2.12 in, 2.13 in, 2.37 in, 2.38 in, 2.39 in, 2.3 in, 2.41 in, 2.42 in, 1.34 in, 1.32 in, 1.35 in, 1.36 in, 1.33 in, 1.37 in, 1.38 in, 1.44 in, 2.06 in, 2.07 in, 2.08 in, 2.24 in, 2.25 in, 2.27 in, 2.28 in, 2.29 in, 2.2 in, 2.26 in, 2.31 in, 1.54 in, 1.55 in, 1.56 in, 1.57 in, 1.58 in, 1.59 in, 1.5 in, 1.61 in, 1.62 in, 1.63 in, 1.27 in, 1.24 in, 1.25 in, 1.26 in, 1.49 in, 1.51 in, 1.52 in, 1.4 in, 1.53 in, 1.64 in, 1.65 in, 1.66 in, 1.67 in, 1.68 in, 1.69 in, 1.6 in, 1.71 in, 1.45 in, 1.46 in, 1.47 in, 1.48 in, 1.74 in, 1.75 in, 1.76 in, 1.72 in, 1.77 in, 1.78 in, 1.79 in, 1.73 in, 1.7 in, 1.81 in, 1.82 in, 1.83 in, 1.84 in, 1.85 in, 1.91 in, 1.92 in, 1.89 in, 1.93 in, 1.94 in, 1.8 in, 1.95 in, 1.17 in, 1.18 in, 1.19 in, 1.21 in, 1.22 in, 1.23 in, 1.86 in, 1.87 in, 1.88 in, 1.96 in, 1.97 in, 1.98 in, 1.99 in, 1.9 in, 2.01 in, 2.5 in, 2.61 in, 2.62 in, 2.63 in, 2.64 in, 2.49 in, 2.4 in, 2.51 in, 2.52 in, 2.53 in, 2.54 in, 2.43 in, 2.45 in, 2.46 in, 2.47 in, 2.44 in, 2.48 in, 2.55 in, 2.56 in, 2.57 in, 2.58 in, 2.59 in, 2.83 in, 2.84 in, 2.7 in, 2.85 in, 2.86 in, 2.81 in, 2.82 in, 2.87 in, 2.65 in, 2.66 in, 2.68 in, 2.69 in, 2.6 in, 2.71 in, 2.72 in, 2.67 in, 2.73 in, 2.74 in, 2.76 in, 2.77 in, 2.78 in, 2.75 in, 2.79 in, 2.88 in, 2.91 in, 2.89 in, 2.92 in, 2.8 in, 2.93 in, 2.94 in, 2.95 in, 2.96 in, 2.97 in, 2.98 in, 2.99 in, 2.9 in, 2 in, 3 in
Conductor Sizes (Metric)	95 mm²

Where to Buy

Specifications

Details

Highlights

Designed for jacketing inline splices on jacketed concentric neutral (JCN) cables
Resists fungus, acids and alkalis
Suitable for use on direct burial, aerial and submersible applications
Cold shrink jackets made of EPDM rubber provides moisture resistance and durability
Includes Cold Shrink sealing sleeves, Scotch 2228 rubber mastic tape and a profile bushing
Water resistant - meets the water seal requirements of ANSI C119.1

3M™ Stacked Sleeve Splice Jacket Kit is suitable for use on 15 to 35 kV jacketed concentric neutral (JCN) and other types of jacketed power cable. The splice jacket is resistant to fungus, acids, alkalis, ozone and UV rays and is designed for rejacketing molded rubber splices. The cold shrink jacket has a peroxide cured EPDM rubber construction to ensure moisture resistance and durability.

3M™ Stacked Sleeve Splice Jacket Kit includes open ended tubular rubber sleeves, Scotch® Rubber Mastic Tape 2228 and a profile bushing. The kit offers moisture tight sealing while maintaining its prolonged resiliency and pressure. The 2 piece design of the splice requires minimal space and ensures simple installation. RoHS 2011/65/EU Compliant‎.

Resources

Splice Jacket Kit

Safety Data Sheets

(PDF , 0B)

3M™ Splices, 2013 Electrical Products Catalog

Catalogs

(PDF , 12MB)

Cold Shrink Stacked Sleeve Splice Jacket Kits

Data Sheets

(PDF , 60KB)

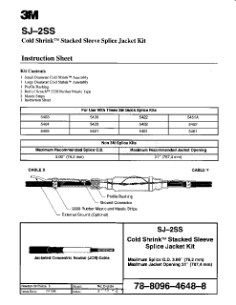

SJ-2SS Cold Shrink Stacked Sleeve Splice Jacket Kit

Instructions

(PDF , 235KB)
