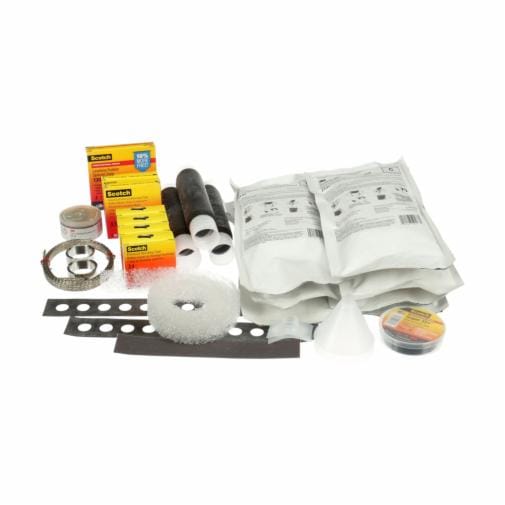

3M™ Scotchcast™ 3-Cond Shielded Splice 5761 (2131), 1/Case
- Part Number 5761
- 3M ID 7000031845
- UPC 00051128591727
Details
Highlights
- Splices shielded cables
- The constant force springs provide a connection for ground braid jumpers
- Rated for 5/8 kV and 15 kV applications
- The insulators are made of EPDM for a long-term seal and offer easy installation
- Withstands a temperature range of 90 °C to 130 °C (194 °F to 266 °F)
- Includes 3M™ Scotchcast™ Flame-Retardant Compound 2131
- RoHS 2011/65/EU Compliant
3M™ Scotchcast™ Cold Shrink Inline Splice Kits 5760 Series with 3M™ Scotchcast™ Flame-Retardant Compound 2131 is designed for splicing shielded, 5/8 kV and 15 kV armored or non armored cables. It is used in cable trays, junction boxes and cable racks/hangers, as well as aerial and wet or dry locations.
3M™ Scotchcast™ Cold Shrink Inline Splice Kits 5760 Series contain a resin that constructs a tough replacement for cable armor and/or a jacket. The EPDM cold shrink insulators offer electrical insulation while the tapes provide electrical shielding. The flexible jacketing resin helps the splice to bend easily with the cable and is suitable for cable tray bends. The resin is self curing, resists abrasion and moisture. RoHS 2011/65/EU Compliant.
Typical properties
Resources
Similar products
Current product  3M™ Scotchcast™ 3-Cond Shielded Splice 5761 (2131), 1/Case | ||||
|---|---|---|---|---|
| Number of Conductors | 3 | |||
| Cable Shielding | Tape Shield | |||
| Splice Type | Inline | |||
| Insulation Outer Diameter (Metric) | 16.51 mm, 16.764 mm, 17.018 mm, 17.272 mm, 17.526 mm, 17.78 mm, 18.034 mm, 18.288 mm, 18.542 mm, 18.796 mm, 19.05 mm, 19.304 mm, 19.558 mm, 19.812 mm, 20.066 mm, 20.32 mm, 20.574 mm, 20.828 mm, 21.082 mm, 21.336 mm, 21.59 mm, 21.844 mm, 22.098 mm, 22.352 mm, 22.606 mm, 22.86 mm, 23.114 mm, 23.368 mm, 23.622 mm, 23.876 mm, 24.13 mm, 24.384 mm, 24.638 mm, 24.892 mm, 25.146 mm, 25.4 mm | |||
| Insulation Outer Diameter (Imperial) | 0.65 in, 0.66 in, 0.67 in, 0.68 in, 0.69 in, 0.7 in, 0.71 in, 0.72 in, 0.73 in, 0.74 in, 0.75 in, 0.76 in, 0.77 in, 0.78 in, 0.79 in, 0.8 in, 0.81 in, 0.82 in, 0.83 in, 0.84 in, 0.85 in, 0.86 in, 0.87 in, 0.88 in, 0.89 in, 0.9 in, 0.91 in, 0.92 in, 0.93 in, 0.94 in, 0.95 in, 0.96 in, 0.97 in, 0.98 in, 0.99 in, 1 in |
