3M™ Adhesive Transfer Tape 468MC, Clear, 5 mil, Roll, Config

  • 3M Product Number 468MC
  • 3M ID 7100009994

5 mil nominal adhesive tape delivers exceptional shear strength for metals and HSE plastics

Provides very high resistance to solvents and humidity

Unique Micro-Channel PCK liner features air release technology to help prevent air entrapment during lamination

View more details
Frequently viewed resources

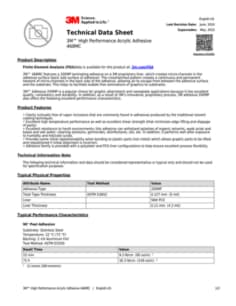

PDF (1) Copy 26Tech Data Sheet (PDF, 82KB)

Details

Highlights
  • 5 mil nominal adhesive tape delivers exceptional shear strength for metals and HSE plastics
  • Provides very high resistance to solvents and humidity
  • Unique Micro-Channel PCK liner features air release technology to help prevent air entrapment during lamination
  • 200MP acrylic adhesive is considered the industry standard for graphic attachment and general industrial joining applications
  • Temporarily repositionable adhesive improves placement accuracy, reducing rework

3M™ Adhesive Transfer Tape 468MC provides outstanding adhesion to metal and high surface energy plastics. 200MP adhesive delivers excellent shear strength to resist slippage and edge lifting. The tape is temporarily repositionable for placement accuracy. It incorporates a unique Micro-Channel PCK liner that uses air release technology to help prevent air entrapment during lamination.

Micro-Channel Liners for Smoother Application
3M™ Adhesive Transfer Tape 468MC is designed with a 5.0 mil thick adhesive for applications such as splicing and laminating procedures using metals and HSE plastics. This high-performance adhesive delivers excellent shear strength to resist slippage and edge lifting. It is delivered on a 58 lb. Micro-Channel, polycoated kraft paper liner which reduces the occurrence of unsightly wrinkles and bubbles that contribute to rework.

Recommended Applications

  • Long term bonding of large graphic overlays ("subsurface" printed polycarbonate or polyester) to metal and high surface energy plastics
  • Bonding metal nameplates, serial and rating plates
  • Bonding graphic overlays for membrane switches and bonding complete switches to equipment surfaces
  • Aerospace, medical and industrial equipment, automotive, appliance and electronics markets

About High Performance Acrylic Adhesive 200MP
3M™ High Performance Acrylic Adhesive 200MP is considered an industry standard for graphic attachment and general industrial joining applications. It features outstanding adhesion to metal, polycarbonate (PC), ABS and polyester (PET) making it a popular choice across many industries. This adhesive provides some initial repositionability for placement accuracy when bonding to plastics. It has also been tested for performance after exposure to solvents, humidity and moisture, as well heat (up to 400°F/204°C for short periods).

Learn More about Acrylic Adhesive 200MP (PDF, 3.7 Mb)

Product Description / Application Ideas Adhesive
Caliper
(mils)
Liner Master Size Specs Adhesion Chem.
Resist.
Temp. Range
Type Caliper
(mils)
Metal HSE
Plastic
LSE
Plastic
Foam Low
(°F)
High
(°F)
200MP (High Performance Acrylic)
467MC Same as 467MP with a paper MicroChannel liner to aid in bubble and wrinkle free graphic attachment 2 58#
PCK
4.2 54" x
180 yd
10 9 1 3 9 -40 400
467MCF Same as 467MP with a polyester MicroChannel liner to aid in bubble and wrinkle free graphic attachment. 2 PET 4.2 54" x
180 yd
467MP Graphic attachment and general industrial joining. Industry standard. 60 in. width master also available. 2 58#
PCK
4.2 48" x
180 yd
UL MH
467MPF Polyester liner for rotary processing of graphic and die cut parts. 2 PET 2.0 54" x
180 yd
UL
468MC Same as 468MP with a paper MicroChannel liner to aid in bubble and wrinkle free graphic attachment. 5 58#
PCK
4.0 54" x
180 yd
468MCF Same as 468MP with a polyester MicroChannel liner to aid in bubble and wrinkle free graphic attachment. 5 PET 4.0 54" x
180 yd
468MP Industry standard for graphic attachment and die cut parts. 60 in. width master also available. 5 58#
PCK
4.2 48" x
180 yd
UL MH
468MPF Thicker version of 467MPF. 5 PET 2.0 54" x
180 yd
UL
9667MP Same as 467MP on heavy, lay-flat liner for kiss-cutting. 48 in. width master also available. 2 83#
PCK
6.2 54" x
180 yd
UL
9668MP Same as 468MP on heavy, lay-flat liner.48 in. width master also available. 5 83#
PCK
6.2 54" x
180 yd
UL MH
9668MPL Better lay-flat properties. 5 94#
PCK
7.0 60" x
180 yd


What are Adhesive Transfer Tapes?
Adhesive transfer tapes are rolls of pressure sensitive adhesive pre-applied to a special release liner. For application, the tape is simply pressed, adhesive side down, to a surface and the liner is peeled off. A variety of adhesive properties and liners are available to meet requirements for applications such as nameplate attachment to high and low surface energy plastics, appliance graphic overlays that perform in high temperatures, foam gasketing, web splicing, signs, posters, banners, point-of-purchase displays, and more.

Bringing Better Ideas to the Surface through Science
The 3M Industrial Adhesives and Tapes Division applies the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, these technologies help customers like you deliver competitive products to the market faster and more efficiently.

Find More 3M Industrial Adhesives and Tapes (PDF, 20.14 Mb)



Image of finite element modeling showing stress points on interacting gearwheels
Get Data for Finite Element Analysis

Pressure Sensitive Adhesive properties are frequency and temperature sensitive. 3M has developed Material Data Cards (MDCs) for common 3M PSAs for use with many commercially available FEA software applications. Learn more.
