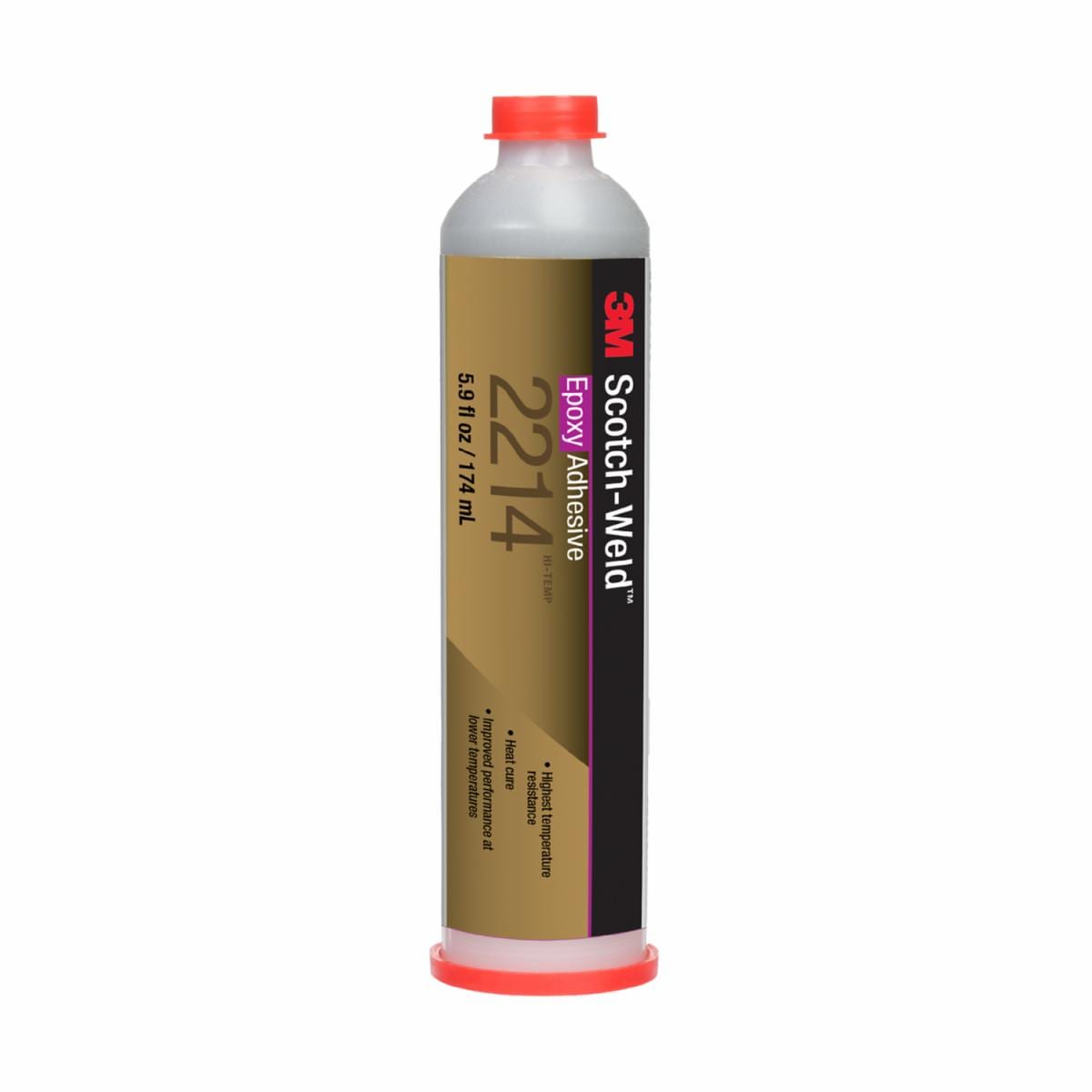

3M™ Scotch-Weld™ Epoxy Adhesive 2214, Hi-Temp, Gray, 6 fl oz Cartridge, 6 Each/Case

  • 3M Product Number 2214
  • 3M ID 7000121274
  • UPC 00021200208065

A VARIETY OF SUBSTRATES: Ideal for bonding metals, fiberglass, polyester, phenolics, and many more

MULTI-PURPOSE APPLICATIONS: Works for high-temperature jobs in specialty vehicles, consumer goods, electronics, general industrial, metalworking, signage, transportation, and many more.

FOR HIGH TEMPERATURES: Ideal for bonding metals and other substrates within a temperature range of 180 °F to 350 °F (82 °C to 177 °C)

View more details

Details

Highlights
  • A VARIETY OF SUBSTRATES: Ideal for bonding metals, fiberglass, polyester, phenolics, and many more
  • MULTI-PURPOSE APPLICATIONS: Works for high-temperature jobs in specialty vehicles, consumer goods, electronics, general industrial, metalworking, signage, transportation, and many more
  • FOR HIGH TEMPERATURES: Ideal for bonding metals and other substrates within a temperature range of 180 °F to 350 °F (82 °C to 177 °C)
  • SMOOTH BOND LINES: Provides precision bonding that is nearly invisible
  • TIME FOR REWORK: Allows rework until heat is applied
  • FAST HEAT CURING: Fully cured in 40 minutes at 250 °F (121 °C)
  • FLAMMABILITY RATING: Meets the standard for UL 94 HB
  • COLOR: Gray

3M™ Scotch-Weld™ Epoxy Adhesive 2214 Hi-Temp is designed to provide high strength, high temperature resistance and smooth bond lines. This aluminum-filled product is designed for use where higher strengths are required between 180°F to 350°F (82°C to 177°C), especially on steel.



Our 3M™ Scotch-Weld™ Epoxy Adhesive 2214 Hi-Temp is designed for use in applications where high strength bonds are needed in a temperature range of -180°F to 350°F (82°C to 177°C).
Available in a variety of different sizes

One Part, 100% Solids, Heat Curing Adhesive
Our 3M™ Scotch-Weld™ Epoxy Adhesive 2214 Hi-Temp is designed for use in applications where high strength bonds are needed in a temperature range of -180°F to 350°F (82°C to 177°C). This epoxy adhesive may be applied by spatula, trowel, or flow equipment to meet your individual project requirements. Flammability testing per UL94 HB.

Recommended Applications

  • High temperature metal bonding

Understanding One-Part Epoxy Adhesives
Epoxy adhesives are part of the class of adhesives called structural adhesives, which include polyurethane, acrylic, cyanoacrylate and other adhesive families. While most epoxies are two-part formulations that undergo a chemical reaction when mixed, there are also one-part epoxy adhesives in which the chemical reaction begins when they are subjected to high temperatures for specified periods. These one-part formulations do not require measuring or mixing and can generally be reworked until heat is applied. They also exhibit higher temperature resistance than two-part epoxy adhesives.

Epoxy adhesive (often referred to as epoxy glue) is widely used in building and home construction; aircraft and automobile manufacturing; bicycle, boat, golf clubs, ski and snowboard assembly as well as a host of home use and other applications. It is used virtually anywhere high-strength bonds are needed along with resistance to environmental conditions. These adhesives are popular for their ease of use, mechanical strength and chemical resistance. Formulations can be created to make epoxy for plastic flexible or epoxy for metal rigid, epoxy resin transparent or opaque, quick setting or slow setting. The versatility with which these adhesives can be formulated helps meet almost any requirement for bonding wood, metal, glass, stone and various plastics.

Click here for more information on 3M Structural Adhesives (PDF, 16 Mb)











Typical properties

Resources

Reviews

Ask a 3M Expert

Ask a 3M Expert

Thank you for your interest in 3M Industrial Adhesive & Tape solutions. A 3M Representative will get back to you by phone or email.

Similar products

Adhesive Type Epoxy
Brands Scotch-Weld™
Container Size (Imperial) 6 fl oz (US)
Container Size (Metric) 177.44 ml
Design Challenges Impact & Shock Absorption, Noise Vibration & Harshness Control NVH
Flame Retardant UL94 HB
Full Cure Time 40 min @ 250 °F (121 °C)
Hardness 88 Shore D
Indoor/Outdoor Both
Industries Construction, Consumer Goods, Electronics, General Industrial, Metalworking, Military & Government, Signage, Specialty Vehicle, Transportation, Woodworking
Physical Form Paste
Product Color Gray
Product Form Cartridge
Product Type Epoxy Adhesive
Shear Strength 2000 psi
Specific Gravity 1.44
Storage Temperature (Celsius) 4.0 °C
Storage Temperature (Fahrenheit) 40.0 °F
Units per Case 6.0
Viscosity Non-sag
