3M™ Scotch-Weld™ Structural Adhesive EC-9356 B/A FST
- 3M ID B5005289009
Details
Highlights
- Cures to handling strength (2 Mpa overlap shear strength) within 2 hours at room temperature
- Thixotropic and non-sag
- Low exotherm
- Meets the latest FST requirements according to FAR/JAR/CS 25.853(a) App F, part I(a)(1)(ii) and ABD0031
- Available in 50ml and 200ml cartridges or bulk packaging configurations
- Suitable for storage at room temperature

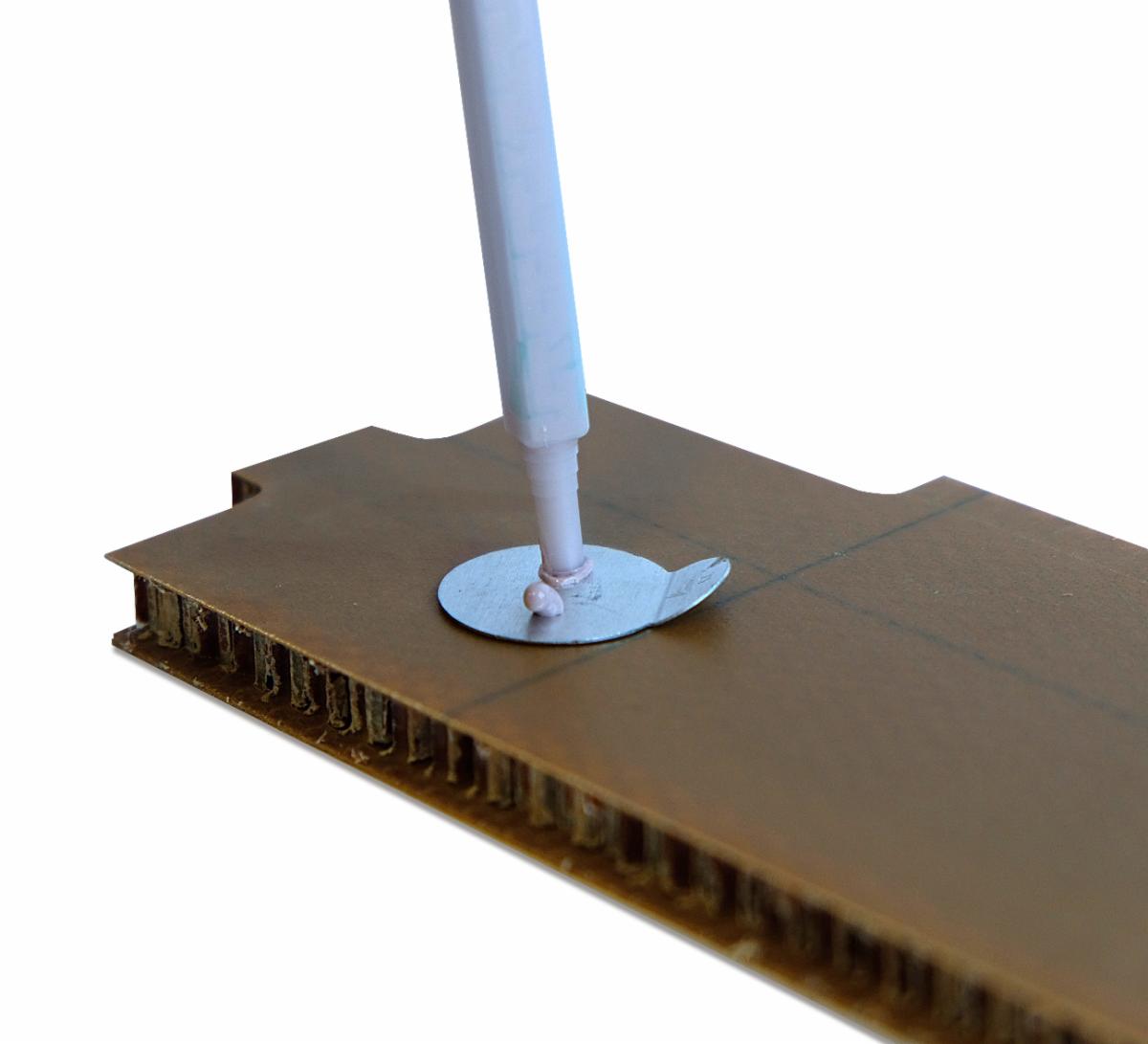

3M™ Scotch-Weld™ Structural Adhesive EC-9356 B/A FST is a two-part, fast curing epoxy paste adhesive. It is designed for bonding typical aircraft interior materials including; metal, thermoplastics such as PEI and PEEK, thermosets and composites. Typical applications include; honeycomb panel bonding (ditch and pot, cut and fold, mortise and tenon joints), insert bonding, or metal to honeycomb bonding. Designed for interior applications and formulated without halogens and antimony, EC-9356 B/A FST meets the latest flammability, smoke density, and toxic gas emission requirements as listed in FAR/JAR25.853 and ABD0031.
Typical properties
Resources
