3M™ Deadbreak Adapter

    • Meets IEEE Standard 386
    • Molded EPDM cable adapter provides stress relief for terminated cable
    • Interchangeability per IEEE standard 386
     More...
    View all details
    For industrial/occupational use only. Not for consumer sale or use.
    All Options
    Showing 24 of 28
    Close
    Specifications
    Attribute Name
    Value
    Brand
    3M™
    Insulation Outside Diameter Range
    0.530 - 0.675 in, 0.640 - 0.820 in, 0.760 - 0.950 in, 0.850 - 1.050 in, 0.980 - 1.180 in, 1.090 - 1.310 in, 1.180 - 1.465 in, 1.280 - 1.430 in
    Maximum Insulation Outer Diameter (Imperial)
    1.78 in, 1.935 in
    Maximum Insulation Outer Diameter (Metric)
    45.2 mm, 49.1 mm
    Maximum Operating Voltage
    25/28 kV, 35 kV
    Minimum Insulation Outer Diameter (Imperial)
    1.515 in, 1.725 in
    Minimum Insulation Outer Diameter (Metric)
    38.5 mm, 43.8 mm
    Product Type
    Dead Break
    Voltage
    25/28 kV
    Details
    • Meets IEEE Standard 386
    • Molded EPDM cable adapter provides stress relief for terminated cable
    • Interchangeability per IEEE standard 386

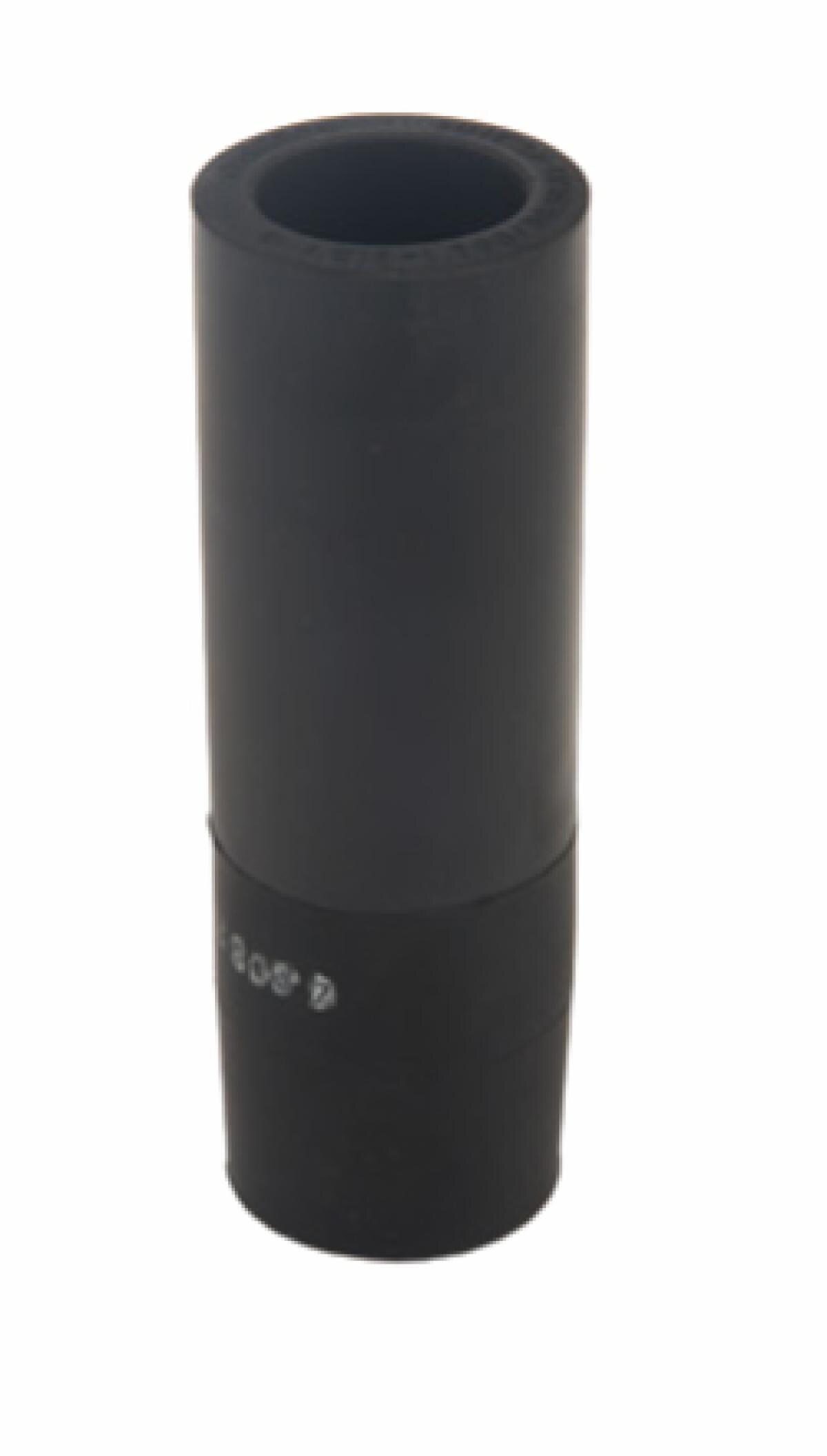

    3M Deadbreak cable adapter for use with 3M Deadbreak T-Body.

    For industrial/occupational use only. Not for consumer sale or use.

    3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use.  Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice.  Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage.  For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.
