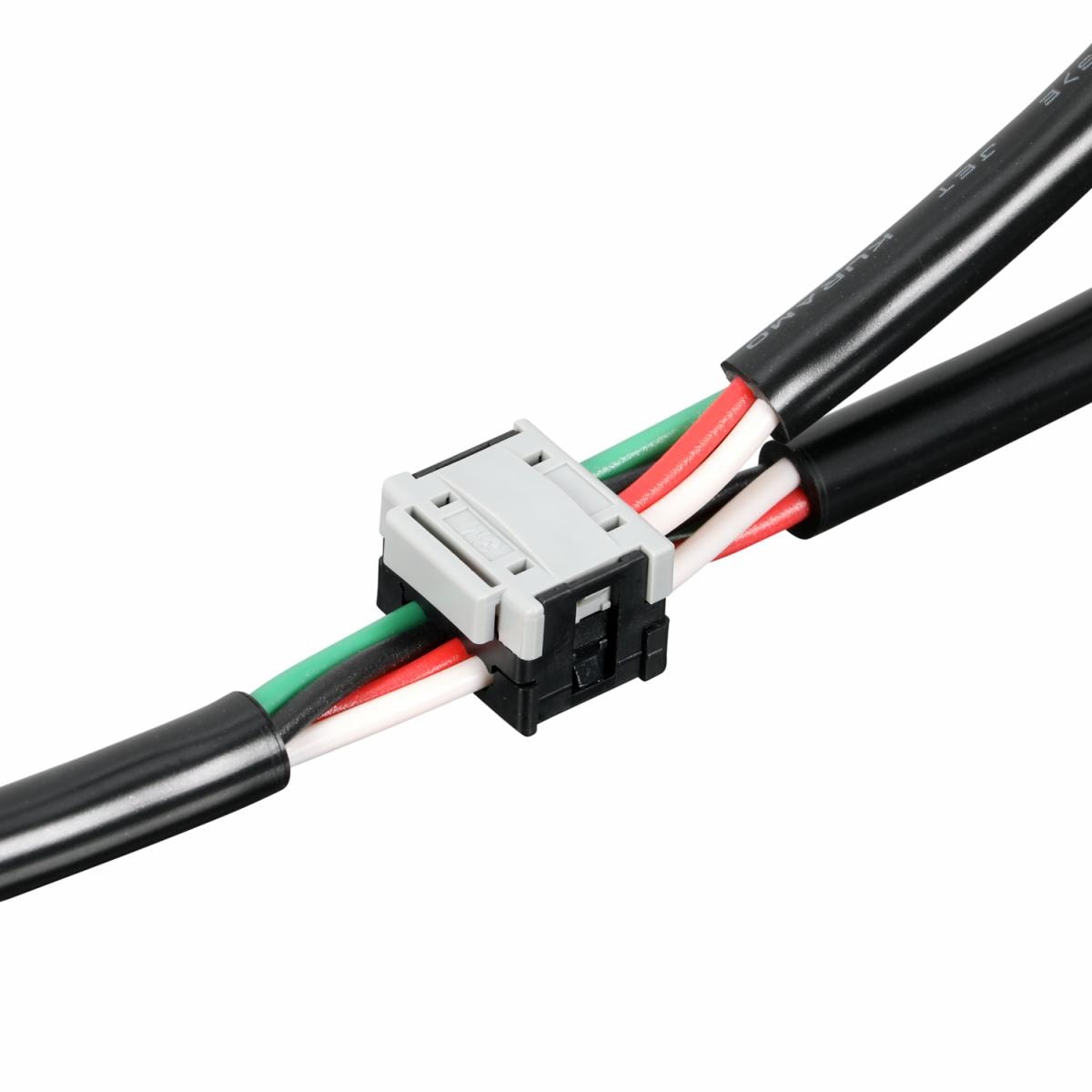

3M™ One Piece Branch Link Connector, 387 Series

  • Enables branching from main wire to branch wire in the field with no special equipment
  • Available in a standard or splash-proof (IPX4) version
  • Easy, labor saving and reliable IDC termination
  • Single-action IDC termination connector for T-branching and splicing of sensor and field networks
 More...
View all details
Find A Part
spinner
Typical Properties
Attribute Name
Value
Brand
3M™
TDS Required
Yes
Tech Sheet Number
TS-2698
Details
  • Enables branching from main wire to branch wire in the field with no special equipment
  • Available in a standard or splash-proof (IPX4) version
  • Easy, labor saving and reliable IDC termination
  • Single-action IDC termination connector for T-branching and splicing of sensor and field networks
  • Easy field termination with no special wire preparation – no stripping, tinning or special tooling
  • Compatible with conductor size of 18AWG with other gauges available upon special request
  • Ability to install wire-saving system
  • Single-connector option means less parts
  • Simple, reliable connection
  • See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
  • For more information refer to Data Sheet 78-5100-2698-8
  • Please refer to Tech Sheet Number TS-2699 for the 3M™ Splash-proof One Piece Branch Link Connector, 387 Series, located in the Data Sheets section

3M™ One Piece Branch Link Connector, 387 Series enables branching into the main network wire (20 to 16 AWG) with a one-piece connector that is field-terminable and requires no special equipment. Available in standard and splash-proof (IPX4) versions.

3M™ One Piece Branch Link Connector, 387 Series enables branching into the main network wire (20 to 16 AWG) with a one-piece connector that is field-terminable and requires no special equipment. The field-terminability provides the ability to optimize the system routing. The one-piece connector design reduces installed system space and requires less parts to manage during the installation. Available in a Splash-proof (IPX4) version for applications where there may be water condensation or near wet-operations, such as washing operations for foods, cosmetics, and pharmaceuticals.
