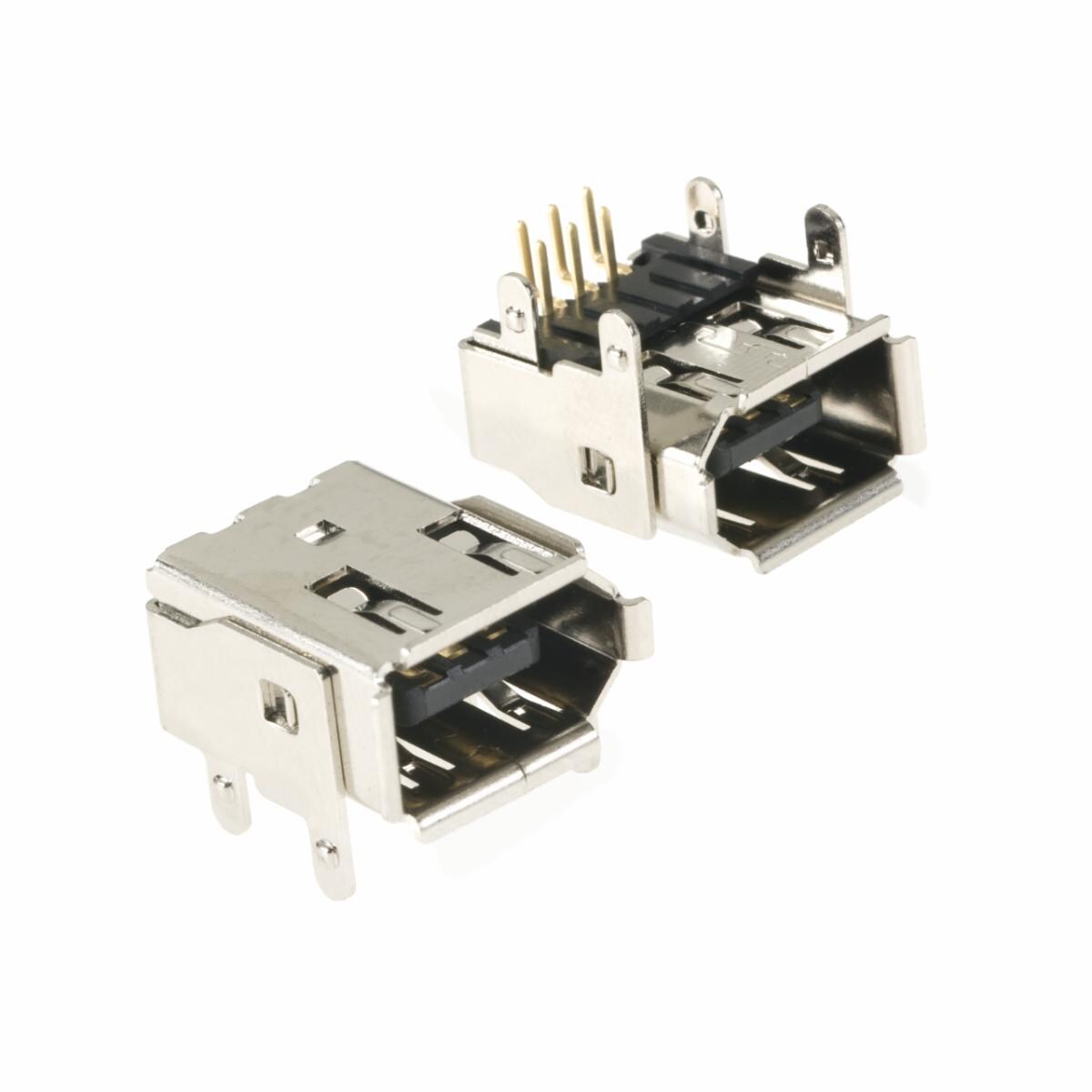

3M™ I/O Interconnect System 2.0 mm for IEEE 1394 3E106 Series

Robust ribbon style contact for reliable, repetitive plugging

For more information, refer to Data Sheet TS2295 (TS-2295)

Body tabs provide lateral support to solder joints and help enable shield grounding

Robust ribbon style contact for reliable, repetitive plugging
For more information, refer to Data Sheet TS2295 (TS-2295)
Body tabs provide lateral support to solder joints and help enable shield grounding
Horizontal orientation for low profile applications
360° shielding for excellent EMI protection
Six contacts can carry signal or power (up to one amp per pin)
Polarized to provide proper cable insertion
Vibration resistant
Mates to IEEE 1394 Wiremount Receptacle (TS-2296)
See Regulatory Information Appendix (RIA) for chemical compliance information

Right Angle, Horizontal, Through-Hole Plug (Male)

	Current product 3M™ I/O Interconnect System 2.0 mm for IEEE 1394 3E106 Series	3M™ I/O Interconnect System 2.0 mm for IEEE 1394 3E106 Series
Brands	3M™
Connector Style	Plug
Contact Base Material	Copper Alloy
Factory ISO Certification	No ISO Certification information available
Mounting Type	Boardmount
Number of Contact Rows	2
Number of Contacts	6
Pitch (Imperial)	0.079 in
Pitch (Metric)	2 mm
Product Color	Silver
Tech Sheet Number	TS-2295
