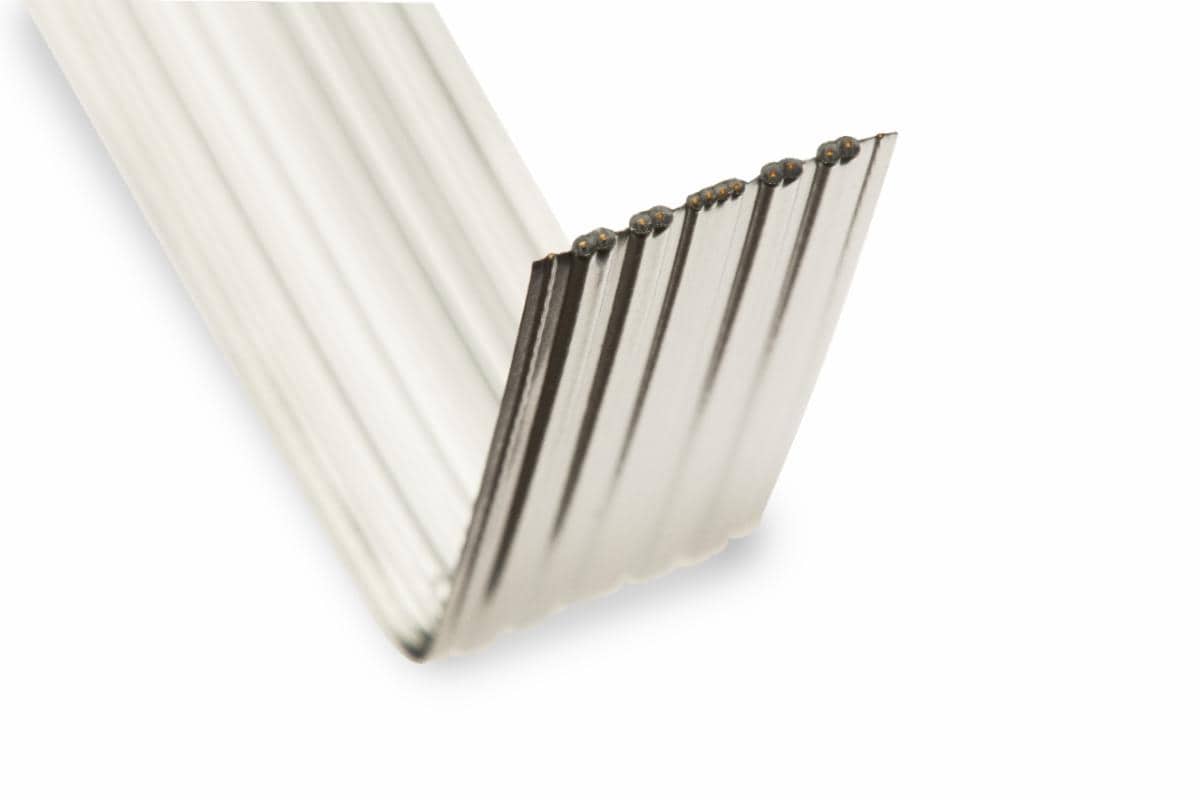

3M™ Twin Axial Cable, SL8801/12 Series, 4 Pair, 4 Sidebands in Center

  • 3M ID B5005035041
  • UPC 00076308601812,50076308609707,00076308609702,50051115599489,50076308601817,00051115599484

Flat, foldable

High Bandwidth

Mass processing and termination

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 261KB)

spinner


Typical properties

Details

Highlights
  • Flat, foldable
  • High Bandwidth
  • Mass processing and termination
  • Internal miniSAS, SFF 8087
  • See Regulatory Information Appendix link for chemical compliance information
  • For more information refer to Customer Drawing 78-5100-2412-4

Ribbon Twin Axial Cable‚ SL8801/12‚ 4 Pair‚ 4 Sidebands in Center

Resources

Related products

Brands 3M™
Conductor Material Copper
Factory ISO Certification No ISO Certification information available
Impedance 95 Ω
Insulation Color Silver
Insulation Material Polyolefin
Number of Conductors 8
Number of Pairs 4
Pitch (Imperial) 0.093 in
Pitch (Metric) 2.37 mm
Product Series SL8801
Tech Sheet Number TS-2412
Wire Size 30 AWG
