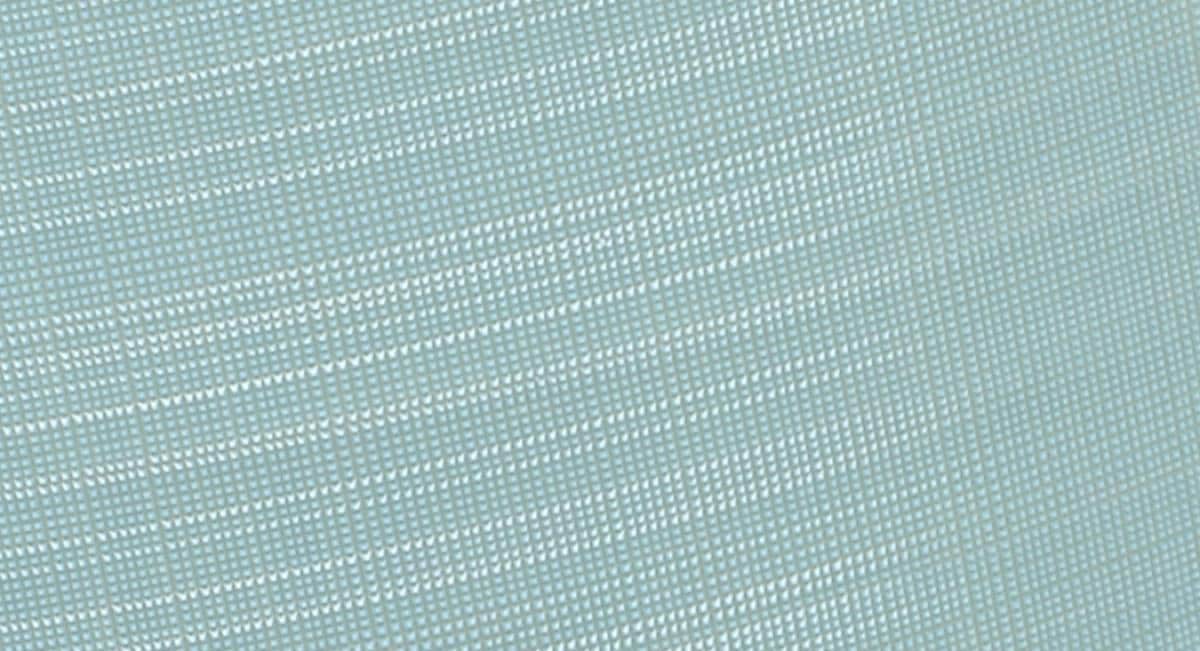

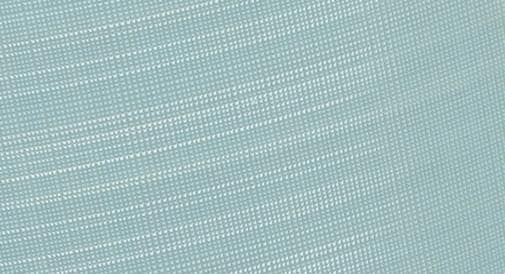

3M™ Microfinishing Film Sheet 362L

3M(TM) Microfinishing Film 5MIL Type 2 Blue

1 of 1

Hover to zoom

High-strength polyester film backing reinforces abrasive durability
Aluminum oxide mineral
Sheet may be cut and shaped for hand pads or back up pads
Available in a range of grades

View all details

For industrial/occupational use only. Not for consumer sale or use.

Micron Grade

Micron_Grade

3 Products Available

Available options:

Micron Grade

Specifications

Attribute Name	Value
Abrasive Material	Aluminum Oxide
Application	Finishing, Grinding, Sanding
Backing Material	Polyester Film
Backing Thickness (Imperial)	3 mil
Brand	3M™
Color Family	Blue, Green
Equipment - Machines	Random Orbital Sanders
Industries	AOEM, General Industrial, Metalworking, Paint Preparation, Precision Grinding & Finishing, Transportation & Heavy Equipment
Micron Grade	30 μm, 40 μm, 9 μm
Overall Length (Imperial)	11 in
Overall Length (Metric)	279.4 mm
Overall Width (Imperial)	8.5 in
Overall Width (Metric)	215.9 mm
Product Color	Blue, Green, Light Blue
Product Form	Sheet
Substrate	Composite, Glass, Paint

Product Details

High-strength polyester film backing reinforces abrasive durability
Aluminum oxide mineral
Sheet may be cut and shaped for hand pads or back up pads
Available in a range of grades
Color-coded by grade to reduce the risk for error during multi-step sequences

3M™ Microfinishing Film Sheet 362L is a fast-cutting abrasive made with aluminum oxide mineral and a polyester film backing.

Made for Microfinishing
Combining the strength of the polyester film backing with the aggressive cutting qualities of micron-graded aluminum oxide mineral, 3M™ Microfinishing Film Sheet 362L is a good match for workpieces that require precise, uniform, close-tolerance finishes. From turbine engines to metal implants, or from builders' hardware or medical instruments, industrial professionals value part integrity. Microfinishing is one application that is very consistent and predictable. It can remove damaged or amorphous layers to improve the surface finish and roundness of the part.

Learn more about Metalworking solutions(PDF, 12.95 Mb)

3M™ Microfinishing Film 362L is good for microfinishing as it comes in a wide range of grades, so operators can choose the right grade for their part. The grades are also color coded to help operators reduce the risk for error when there are multiple grades in a sequence. It may be used on a variety of substrates, including clear coats, gelcoats, soft and hard composites, metals, softwoods and hardwoods, primer, fiberglass, sealers, paint, solid surfaces and particle board.

Learn more about Woodworking solutions.(PDF, 20.55 Mb)

3M™ Microfinishing Films

Product

Mineral

Backing Caliper
(0.001")

Backside

Grades (Microns)

9

15

20

30

40

45

50

60

74

80

100

125

372L

Aluminum
Oxide

5

Type S

•

372L Type 2*
(colored)

Aluminum
Oxide

5

Type S

•

373L

Aluminum
Oxide

5

Type Q

•

373L Type 2*
(colored)

Aluminum
Oxide

5

Type Q

•

382L Type 2
(colored)

Aluminum
Oxide

6

Type S

•

362L

Aluminum
Oxide

3

Type S

•

272L**

Aluminum
Oxide

5

Type S

•

472L

Silicon
Carbide

5

Type S

•

675L

Diamond

5

Type S

•

Diamond

6

Type S

•

*Suggest to specify the 372L or 373L type 2 (colored) film whenever possible to assist with Error-proofing.
**European Lead Product. Plus wide rolls and belts globally.

Balancing Strength with Flexibility
The high-strength polyester film backing on 3M™ Microfinishing Film Sheet 362L serves as a uniform base for extremely fine mineral grains, helping keep a consistent, uniform thickness for high precision work. The film is made with micron-graded aluminum oxide mineral, a popular choice among industrial professionals because of its cut-rate and long life. This mineral is tough and self-fractures to expose fresh cutting edges in use. Due to its high cut-rate, hardness, strength and low heat retention, aluminum oxide mineral is widely used in sanding and finishing.

Available in a sheet form, the film may be cut to match the dimensions of a backup pad or hand pad. This flexibility enables operators to reap the benefits of a microfinishing film and still tackle tough areas that might be inaccessible to other tools and machines.
