3M™ Cushion-Mount™ Plus Plate Mounting Tape E1320
- | Select product options for IDs.
Details
Highlights
- 0.020 inch (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force from flexographic print plates
- Has a medium soft density foam that is ideal for printing combinations of solids and process with halftone dots
- Yellow foam color indicates the medium soft density foam
- Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
- Print plates mounted on E1320 will have no air bubbles under the plate due to the air release feature designed into the tape
- Grooves in the adhesive are created by a cross-hatch pattern from the release liner
- Plate easily demounts from the double coated cushioned tape without adhesive residue
- Tape also removes cleanly from the sleeve or steel print cylinder
- Flexographic printing, flexographic printers
- Cushioned flexographic plate mounting sticky back foam tape
3M™ Cushion-Mount™ Plus Plate Mounting Tape E1320 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This yellow foam mounting tape provides high quality medium soft combination print.
Differential acrylate adhesive system on each side of a foam carrier, protected by a release liner on one side
3M™ Cushion-Mount™ Plus Plate Mounting Tape E1320 is a yellow foam tape that provides high quality combination print. This is the medium soft tape for combination print. It has the air release feature that allows for bubble free mounting. This flexographic plate mounting tape has excellent resistance to lifting on press allowing for easy and clean plate removal.

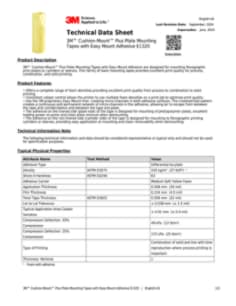

Learn more about 3M™ Flexographic Plate Mounting Systems (PDF, 5.00 Mb)
Recommended Applications
- Mounting photopolymer plates to flexographic printing cylinders and sleeves
- Used in combination, process and solid printing processes
- 3M sticky back tapes are designed for wide-web presses to print film or paper for flexible packaging industry
3M flexographic plate mounting tapes are highly engineered to provide very tight caliper tolerance to allow printers to use tape from different manufacturing lots and keep tight print registration. The compressible foam will withstand long and high speed print runs.
This is manufactured for 20 mil applications. It is constructed with engineered acrylic adhesives. The adhesive on the linered (plate) side of the tape is designed for mounting of photopolymer plates. The adhesive on the non-linered (sleeve/cylinder) side is designed for mounting to flexographic printing cylinders or sleeves, providing easy application at mounting and clean removal when demounting.
On Easy with Reduced Air Entrapment
3M air release liners have a crosshatched pattern, unlike other mounting tapes that use a pebbled or flat release liner. The embossed crosshatched pattern imprints unique microchannels into the easy mount adhesive that allows entrapped air to escape. Air bubbles disappear from between the tape and plate, and between the tape and sleeve or cylinder for virtually bubble-free mounting. Setup is faster with smoother surfaces for cleaner print quality and higher productivity. The adhesive maintains tight contact with reduced edge lifting.
Wide choice of adhesives, foams and thickness
For decades, 3M products have been at work in printing plants helping to improve the quality of the work that goes out and the efficiency of how it gets done.
Typical properties
