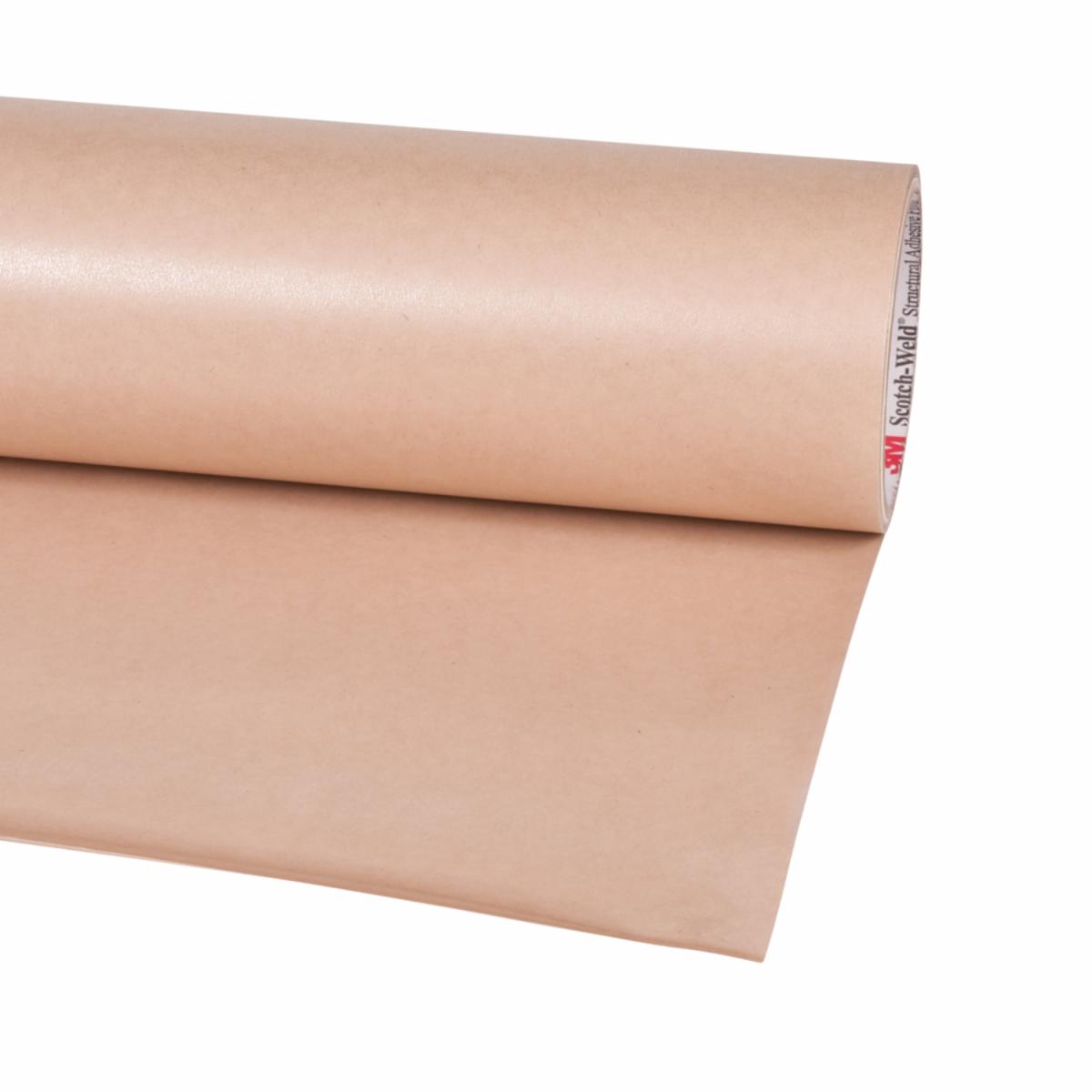

3M™ Scotch-Weld™ Structural Adhesive Film AF 3185

Part Number AF 31853M Product Number AF 31853M ID 7010329681
  • Cure temperatures as low as 200°F (93°C) may be used
  • Film is commonly used for bonding aircraft canopies and windscreens into frames
  • Easy to cut
  • Very low flow (< 10%)
 More...
View all details

Support from 3M

3M is constantly working to meet the evolving challenges of the aerospace industry professionals worldwide. If you need help finding and existing solution or would like to talk about ideas your working on, get in touch with us.

Close
Specifications
Attribute Name
Value
Adhesive Type
Epoxy
Application
Metal Bonding, Metal to Composite Bonding, Structural Bonding, Surfacing
Brand
Scotch-Weld™
Color Family
Beige
Cure Rate
1 Hour
Cure Temperature
250 Degree Fahrenheit
Maximum Operating Temperature (Celsius)
82 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
180 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)
-67 Degree Fahrenheit
Nominal Adhesive Thickness (Imperial)
8 mil
Overall Length (Imperial)
50 yd
Overall Length (Metric)
46 m
Overall Width (Imperial)
36 in
Overall Width (Metric)
1 m
Product Color
Light Tan
Shelf Life
6 Month
Storage Environment
Freezer Storage
Details
  • Cure temperatures as low as 200°F (93°C) may be used
  • Film is commonly used for bonding aircraft canopies and windscreens into frames
  • Easy to cut
  • Very low flow (< 10%)
  • Repositionable
  • Excellent for vacuum or low pressure curing
  • Used for bonding glass and reinforced epoxy glass laminates
  • Light tan color

Ready to Fly
3M™ Scotch-Weld™ Structural Adhesive Film AF 3185 is a tan colored film that provides excellent performance with easy-to-use shop handling properties. These adhesive films are available in a variety of weights and carriers to meet a range of needs without imposing excess material costs. AF 3185 may be used to bond glass to metal. It provides moderate adhesive strength at 75°F.

The fewer rivets you have in your aircraft the better.
Many 3M adhesive films are designed to bond composite panel or honeycomb sandwich panels for a variety of structural applications
What is Structural Adhesive Film?
The fewer rivets you have in your aircraft the better. Structural adhesive films enable the designer to get more innovative with their parts, and reduce the overall number of rivets required on your structure. This thermosetting modified epoxy in film form can be used for bonding a wide variety of substrates, including metal, honeycomb and composite. Structural Adhesive Films come in a variety of weights and thicknesses, minimizing the weight while maintaining the structural integrity.

Compare More Structural Adhesive Films for Aerospace

The films are available in supported versions, which are typically used for monolithic bonding or honeycomb sandwich. They are also available in unsupported form for reticulation onto honeycomb. These films can be cured from temperatures as low as 180°F to as high as 350°F. Because these films are less messy and don't required mixing, they offer efficiencies in the design process. They are easier to use than typical paste adhesives.

3M is on the Leading Edge of Innovation
Adhesive bonding enables a more lightweight structure because it allows you to use more lightweight composite, as opposed to the metallic materials that were used in previous designs. Structural adhesive films are employed anywhere you are trying to bond metal to composite. This offers good erosion performance while minimizing weight.

Our Best for Your Best
3M is proud to partner with organizations across the spectrum of aerospace and related industries. Creating efficiencies, reducing process times and lowering aircraft weight is how we execute our never-ending mission to offer best-in-class adhesives, sealants and other products that effectively reduce costs on multiple fronts.

Learn More about 3M Aerospace

Ready to Fly
3M™ Scotch-Weld™ Structural Adhesive Film AF 3185 is a tan colored film that provides excellent performance with easy-to-use shop handling properties. These adhesive films are available in a variety of weights and carriers to meet a range of needs without imposing excess material costs. AF 3185 may be used to bond glass to metal. It provides moderate adhesive strength at 75°F.

The fewer rivets you have in your aircraft the better.
Many 3M adhesive films are designed to bond composite panel or honeycomb sandwich panels for a variety of structural applications
What is Structural Adhesive Film?
The fewer rivets you have in your aircraft the better. Structural adhesive films enable the designer to get more innovative with their parts, and reduce the overall number of rivets required on your structure. This thermosetting modified epoxy in film form can be used for bonding a wide variety of substrates, including metal, honeycomb and composite. Structural Adhesive Films come in a variety of weights and thicknesses, minimizing the weight while maintaining the structural integrity.

Compare More Structural Adhesive Films for Aerospace

The films are available in supported versions, which are typically used for monolithic bonding or honeycomb sandwich. They are also available in unsupported form for reticulation onto honeycomb. These films can be cured from temperatures as low as 180°F to as high as 350°F. Because these films are less messy and don't required mixing, they offer efficiencies in the design process. They are easier to use than typical paste adhesives.

3M is on the Leading Edge of Innovation
Adhesive bonding enables a more lightweight structure because it allows you to use more lightweight composite, as opposed to the metallic materials that were used in previous designs. Structural adhesive films are employed anywhere you are trying to bond metal to composite. This offers good erosion performance while minimizing weight.

Our Best for Your Best
3M is proud to partner with organizations across the spectrum of aerospace and related industries. Creating efficiencies, reducing process times and lowering aircraft weight is how we execute our never-ending mission to offer best-in-class adhesives, sealants and other products that effectively reduce costs on multiple fronts.

Learn More about 3M Aerospace
