3M™ Acrylic Foam Tape 5403

  • 3M ID B40065758

Designed for attaching weatherstrip and gasket seals in automotive applications

Recommended where taping surface is smooth and a thin tape is necessary

Features heat-activated non-liner-side adhesive for primerless bonding to EPDM/TPE materials

View more details

Typical properties

Details

Highlights
  • Designed for attaching weatherstrip and gasket seals in automotive applications
  • Recommended where taping surface is smooth and a thin tape is necessary
  • Features heat-activated non-liner-side adhesive for primerless bonding to EPDM/TPE materials
  • Forms immediate, durable bond without adhesion promoters
  • Liner-side pressure-sensitive adhesive is formulated for high-solids clear coat paint systems
  • Conformable closed cell acrylic foam core provides excellent wet-out to maintain seal integrity

3M™ Acrylic Foam Tape 5403 features a heat-activated adhesive on an 0.8 mm viscoelastic acrylic foam core. The adhesive creates an immediate, durable bond to EPDM/TPE and many Santoprene® TPV materials. Liner-side adhesive is designed specifically for bonding to high-solids clear coat systems. The conformable foam core provides excellent wet-out for automotive weatherstripping and gasket seals.

A Thin Tape for Attaching Weatherstripping and Gasket Seals to Smooth Surfaces

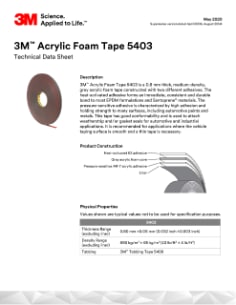

Developed specifically for attaching gasket and weatherstrip seals in automotive applications, 3M™ Acrylic Foam Tape 5403 (PDF, 50.81 Kb) features a gray, 0.8 mm acrylic foam core with an extremely strong heat-activated adhesive formulated for an immediate, consistent and durable bond to EPDM/TPE materials. This adhesive delivers high initial tack, rapid build and excellent final adhesion without the use of an adhesion promoter, and resists temperatures up to 203°F (95°C) for efficient application prior to seal coating bakes. The adhesive is applied to the non-liner side of an 0.8 mm acrylic foam core designed to help maintain seal integrity. The viscoelastic core provides excellent wet-out as well as stress relaxation when exposed to high application loads. Adhesive applied to the liner side of the core is designed for high initial and final bond to automotive trim and part materials. This adhesive is suitable for plastics with plasticizers as well as traditional and newer automotive paints including rigid clear coat systems, and may also be suitable for ABS, PC and many flexible clear coats. The polyethylene liner is silicone-coated on one side, suitable for heat-bond tabbing.

Recommended Applications

  • Weatherstripping seals
  • Gasket seals
  • Smooth automotive surfaces
  • Thin tape applications
  • EPDM and PP materials
  • Santoprene® TPV (with appropriate testing and verification)

Better Science for Better Adhesion from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life — developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations - and all of it goes into each of our products developed for automotive OEM, like 3M™ Acrylic Foam Tape 5403.

Santoprene® is a trademark of Exxon Mobil Corporation.
