3M™ Acrylic Foam Tape 5404, Gray, 1.2 mm

  • 3M Product Number 5404
  • 3M ID B40065757

Heat-activated adhesive forms an immediate and durable bond to EPDM/TPE materials without adhesion promoters

High adhesion to LSE substrates (with adhesion promoter) and scratch-resistant paint systems

Conformable, viscoelastic 1.2 mm acrylic foam core provides excellent wet-out for maintaining seal integrity

View more details
Frequently viewed resources

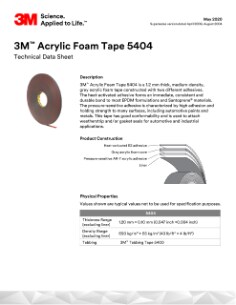

PDF (1) Copy 26Tech Data Sheet (PDF, 160KB)

Details

Highlights
  • Heat-activated adhesive forms an immediate and durable bond to EPDM/TPE materials without adhesion promoters
  • High adhesion to LSE substrates (with adhesion promoter) and scratch-resistant paint systems
  • Conformable, viscoelastic 1.2 mm acrylic foam core provides excellent wet-out for maintaining seal integrity
  • Specifically developed for attaching seals, weatherstripping and other elastomeric parts in automotive applications
  • Delivers high initial tack, rapid build and excellent final adhesion without adhesion promoter
  • Pressure-sensitive adhesive on liner side for high initial and final adhesion to clearcoats and scratch- and mar- resistant paint systems
  • Gray color for sharp bond lines
  • Silicone-coated orange polyethylene foil liner is easily heat-bond tabbed

3M™ Acrylic Foam Tape 5404, Gray, 1.2 mm is an automotive attachment tape for attaching seals, weatherstripping and other elastomeric parts in automotive applications. It features a heat-activated adhesive on a 1.2 mm viscoelastic acrylic foam core. This adhesive provides an immediate, durable bond to EPDM/TPE and many Santoprene® TPV materials. The liner-side adhesive is designed for high adhesion to low-surface-energy (LSE), with an adhesion promoter, and scratch-resistant paint systems. The conformable foam core provides excellent wet-out for seals and other elastomeric parts.

Featuring a heat-activated adhesive, 3M™ Acrylic Foam Tape 5404, Gray, 1.2 mm delivers an immediate, consistent and durable bond to EPDM/TPE materials. This adhesive delivers high initial tack, rapid build and excellent final adhesion without the use of an adhesion promoter. The adhesive is applied to the non-liner side of a 1.2 mm viscoelastic acrylic foam core, which provides excellent conformability and wet-out that helps maintain seal integrity. The liner side of the core features a pressure-sensitive adhesive that delivers very high initial and final adhesion to a range of rigid clear coats, powder coats and other mar- and scratch-optimized auto paint systems. The inconspicuous gray color of this OEM-approved tape helps create sharp bond lines. The orange polyethylene foil liner is silicone-coated on one side, great for heat-bond tabbing.

Automotive sealing icon of a car under water droplets

Typical properties
