3M™ Wire Harness Tape 5079, Black, 2.0 mm

  • 3M Product Number 5079
  • 3M ID B40065738

Bonds to rough or highly irregular surfaces, where a conformable tape is required

Developed using the technology of 3M™ Acrylic Foam Tape

Demonstrates excellent initial adhesion and static performance works even when surfaces are uneven

View more details

Details

Highlights
  • Bonds to rough or highly irregular surfaces, where a conformable tape is required
  • Developed using the technology of 3M™ Acrylic Foam Tape
  • Demonstrates excellent initial adhesion and static performance works even when surfaces are uneven
  • Versatility allows application to many substrates used for automotive parts, often without special surface treatment
  • Exhibits good workability
  • Delivers to high tape modulus, ease of cutting and wet-out
  • The possibility of staining the bonded surfaces is reduced because it is made of a high molecular weight acrylic material
  • Tape excels in extreme weather and heat
  • Provides solvent resistance

3M Wire Harness Tape 5079 is a 2.0 mm thick, black, acrylic foam tape used in the attachment of wire harness assemblies to automobile headliners, attaching interior trim, bonding impact relaxation pads to door panels, bonding of cellular urethane, polystyrene and polypropylene parts and similar applications.

Wire Harness tape
Demonstrates excellent initial adhesion and static performance against substrates that have uneven surfaces
Ideal Tape for Rough and Irregular Surfaces

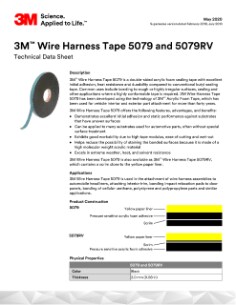

3M™ Wire Harness Tape 5079 (PDF, 84.19 Kb) is a double-sided acrylic foam sealing tape with excellent initial adhesion, heat resistance and durability compared with conventional butyl sealing tape. Common uses include: bonding to rough or highly irregular surfaces, sealing and other applications where a highly conformable tape is required.

Based on the Proven Capabilities of 3M™ Acrylic Foam Tape
3M Wire Harness Tape 5079 has been developed using the technology of 3M™ Acrylic Foam Tape, which has been used for vehicle interior and exterior part attachment for more than forty years. Our tape is constructed with a yellow paper liner, pressure sensitive acrylic foam adhesive and a scrim

Recommended Applications
  • Bonding of cellular urethane, polystyrene and polypropylene parts
  • Securing wire harnesses to headliners
  • Bonding impact relaxation pads to door panels
  • Attaching interior trim

Better Science for Better Adhesion from 3M
Since 1925 when a 3M lab assistant invented masking tape, 3M has been applying science to life — developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations — and all of it goes into each 3M product developed for automotive OEM, like 3M™ Scotchcal™ Wire Harness Tape 5079.

See more Wire Harness Tapes

Typical properties
