3M™ Acrylic Foam Tape 5935, Gray, 0.4 mm

  • 3M Product Number 5935
  • 3M ID B40065733

Immediate, durable bond to EPDM/TPE and Santoprene® TPV materials without the use of an adhesion promoter (non-liner side)

High adhesion and holding strength to automotive paints and metals

Thin 0.4 mm viscoelastic acrylic foam core provides excellent conformability and wet-out, helping maintain seal integrity

View more details
Frequently viewed resources

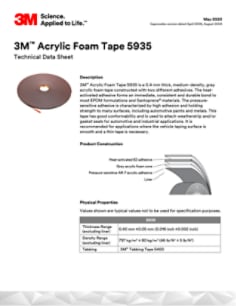

PDF (1) Copy 26Tech Data Sheet (PDF, 159KB)

Details

Highlights
  • Immediate, durable bond to EPDM/TPE and Santoprene® TPV materials without the use of an adhesion promoter (non-liner side)
  • High adhesion and holding strength to automotive paints and metals
  • Thin 0.4 mm viscoelastic acrylic foam core provides excellent conformability and wet-out, helping maintain seal integrity
  • Heat-activated adhesive for immediate, consistent and durable bond
  • Pressure-sensitive adhesive for high initial and final adhesion to paint systems
  • Inconspicuous gray color for sharp bond lines
  • For weatherstripping, gasket seals, EPDM and PP materials

3M™ Acrylic Foam Tape 5935, Gray, 0.4 mm is an automotive double-sided foam tape that provides an immediate, durable bond to EPDM/TPE and many Santoprene® TPV materials. It features a heat-activated adhesive on a thin 0.4 mm acrylic foam core. The liner-side adhesive is designed for high adhesion and holding strength to automotive paints and metals. The conformable foam core provides excellent wet-out for seals and other elastomeric parts.

Developed specifically for attaching seals, weatherstripping and other elastomeric parts in automotive applications, 3M™ Acrylic Foam Tape 5935, Gray, 0.4 mm features a very thin 0.4 mm viscoelastic acrylic foam core which provides excellent conformability and wet-out, helping maintain seal integrity. A heat-activated adhesive, formulated for an immediate, consistent and durable bond to EPDM/TPE materials is applied to the non-liner side of the core. This adhesive delivers high initial tack, rapid build and excellent final adhesion without the use of an adhesion promoter. The liner side of the core features a pressure-sensitive adhesive that delivers very high initial and final adhesion to a range of traditional and advanced paint systems. The inconspicuous gray color of this OEM-approved tape helps create sharp bond lines. The orange polyethylene foil liner is silicone coated on one side, suitable for heat-bond tabbing.

Automotive sealing icon of a car under water droplets

Typical properties

Resources
