3M™ High Flex Life Cable, 3319 Series

  • 3M Product Number 3319 Series
  • 3M ID B00039650
  • UPC 00051111655108

Foldable flat cable delivers long-term dynamic flexibility

High strength copper alloy wire strands provide flex life for dynamic applications

Tested for repetitive flex life of 100 million cycles at 1 ¾” diameter

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 861KB)

spinner


Details

Highlights
  • Foldable flat cable delivers long-term dynamic flexibility
  • High strength copper alloy wire strands provide flex life for dynamic applications
  • Tested for repetitive flex life of 100 million cycles at 1 ¾” diameter
  • 28 AWG wire permits mass termination to a broad line of IDC connectors

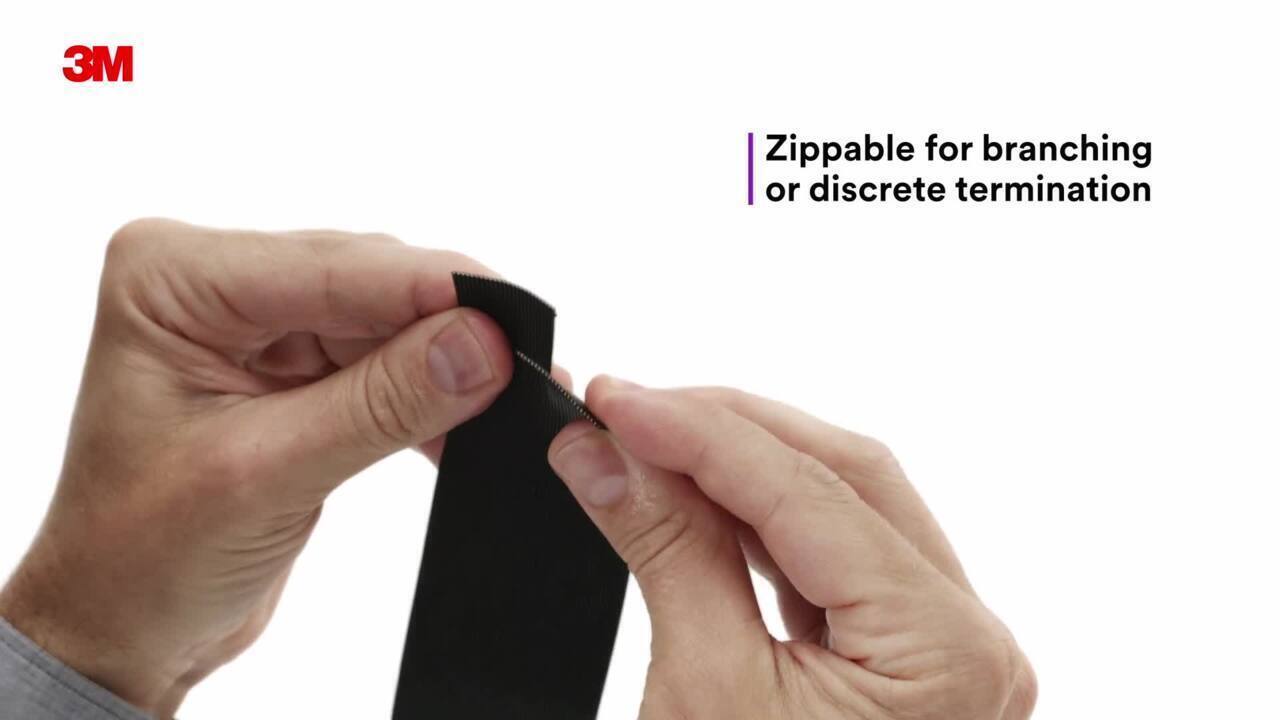

  • Cable is zippable for branching or discrete termination
  • Available with up to 64 connections for larger applications

3M™ High Flex Life Cable, 3319 Series is excellent for dynamic applications requiring high cable flex life even when the cable must be folded repeatedly. Tested to 100 million flex cycles, the 3319 series features 19 strands of a high-strength copper alloy wire – providing flex life for dynamic applications – in a flat ribbon configuration. This 28 AWG wire on .050” pitch allows for mass termination to a broad line of IDC connectors.

  • Icon of a shield representing durability
    Durability
  • Icon of fast-moving clock representing fast termination
    Fast Termination
  • Icon of a spring representing flex life
    Flex Life
  • Icon of arrows expanding on six axes representing versatility
    Versatility
  • Hands bending and folding the flat cable
  • A wide range of connections

    This flat, foldable 3M cable allows for mass Insulation Displacement Connection (IDC) termination, saving installation time. A simple crimp makes stable, reliable metal-to-metal contact without the need to strip and crimp each connector. 3M™ High Flex Life Cable, 3319 Series is available with up to 64 connectors. Zippable ribbon cable makes for a broad range of applications requiring branching or discrete terminations.

Properties of 3M™ High Flex Life Cable 3319 Series


Typical properties
