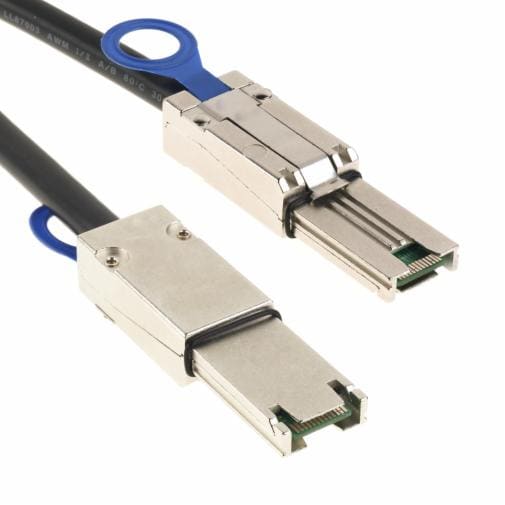

3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly, 8M26 Series

  • 3M ID B00035550

Capable of 6 Gbps per channel data rate

For more information refer to Data Sheet TS2212 (TS-2212)

26 conductor signal assembly

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 886KB)

spinner


Typical properties

Details

Highlights
  • Capable of 6 Gbps per channel data rate
  • For more information refer to Data Sheet TS2212 (TS-2212)
  • 26 conductor signal assembly
  • Multiple lengths available
  • Metal latch designed to promote retention
  • Pull tab ring provides easier unmating
  • Two levels of EMLB for hot plugging
  • Multiple key options available
  • Tested to SAS Specification, SAS-2
  • See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information

Straight Termination, 26 position
