3M™ Twin Axial Cable Assembly for PCI Express x8 Jumper Applications, 8KH3-0734-0250

  • 3M ID 7010507224
  • UPC 08887862035980

PCI Express x8 adds flexibility to meet high-speed data transfer demands

Allows for expanded placement of peripheral components with less concern for heat or reduced performance

Allows for replacement of PCB traces with high-performance, low-loss twinax cable

View more details
Frequently viewed resources

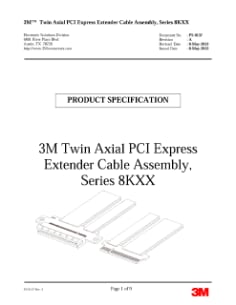

Tech Data Sheet (PDF, 1MB)

spinner


Details

Highlights
  • PCI Express x8 adds flexibility to meet high-speed data transfer demands
  • Allows for expanded placement of peripheral components with less concern for heat or reduced performance
  • Allows for replacement of PCB traces with high-performance, low-loss twinax cable
  • Meets PCIe® 3.0 standard for data transfer
  • Available in customized cable lengths
  • Foldable, flexible cable can be incorporated into various PC and server configurations
  • Continuous longitudinal shielding virtually eliminates signal loss even when folded

The 3M™ Twin Axial Cable Assembly for PCI Express x8 Jumper Applications is excellent for prototyping and deploying compact extender card applications. It features extremely flat, flexible twinax cable that can be bent and folded with virtually no signal loss for versatile, compact packaging. The85-ohm 3M cable assembly meets PCIe® 2.0 and PCIe 3.0 standards and delivers data rates up to 64 Gbps. It is excellent as a direct extender, eliminating the need for PCB traces and other connectors in high-speed, high-bandwidth applications. It is ideal for riser cabling, mid-board and board-to-board connections.

With a compact PCIe® card edge form factor, the 3M™ Twin Axial Cable Assembly for PCI Express x8 Jumper Applications is excellent for adding design flexibility to high-speed applications where space is limited. It features advanced 3M™ Twin Axial Cable technology. Foldable, flexible flat cable can be folded back on itself with extremely tight bend radii, allowing more cable in tight spaces. Precision-formed, continuously laminated shielding helps maintain resonance-free signal integrity.
