3M™ Twin Axial PCI Express X16 Extender Assemblies Gen 4.0

  • 3M ID B00035486

Foldable cable is excellent for managing server space, adding system design possibilities

Continuous longitudinal shielding allows for high-bandwidth, resonance free SI performance

Thin ribbon cable construction allows easy routing and cable management

View more details
Frequently viewed resources
PDF (1) Copy 26Tech Data Sheet (PDF, 5MB)

spinner

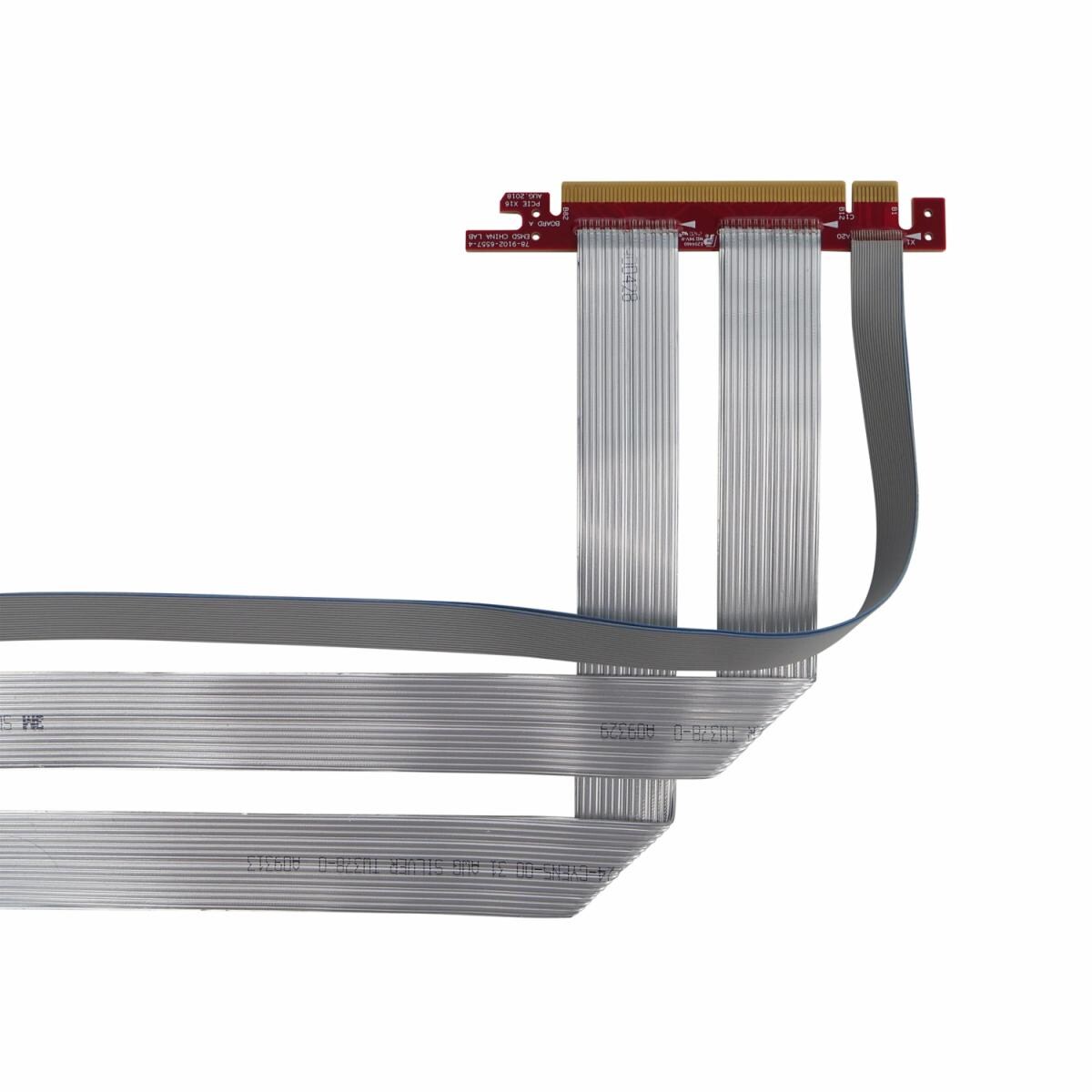

Close up on TwinAx Gen 4.0 8Kxx cable straddle mount and surface mount connector ends
Available in x8, x16, straddlemount and SMT

Check out the 3M™ Twin Axial PCI Express Extender Assemblies Gen 4.0 8Kxx Series.

View 8Kxx series

Details

Highlights
  • Foldable cable is excellent for managing server space, adding system design possibilities
  • Continuous longitudinal shielding allows for high-bandwidth, resonance free SI performance
  • Thin ribbon cable construction allows easy routing and cable management
  • Helps maximize airflow for cooler operation
  • Signal wire size 30 AWG

3M™ Twin Axial PCI Express X16 Extender Assemblies Gen 4.0 allow for extremely versatile routing and server system configuration while maintaining signal integrity. Ideal for PCIe® (85 ohm) 4.0 applications, 3M TwinAx PCIe Gen 4.0 assemblies feature flexible, foldable thin twin axial ribbon cables that allow more cable to be installed in small spaces. This adds design capability and helps maximize airflow for better thermal management.

This 3M flexible, foldable cable features an extremely tight bend radius – more cable can be installed in smaller spaces for expanded possibilities in server system design and performance, 3M TwinAx PCIe Gen 4.0 assemblies allows components to be configured for maximized functionality, density, airflow and aesthetics.

Recommended application icon of a speed gauge and line graph rising representing high-speed data transmission

Typical properties

Resources

Request a Sample

  • All fields are required unless indicated optional

  • 3M takes your privacy seriously. 3M and its authorized third parties will use the information you provided in accordance with our Privacy Policy to send you communications which may include promotions, product information and service offers. Please be aware that this information may be stored on a server located in the U.S. If you do not consent to this use of your personal information, please do not use this system.

  • Submit

Our apologies...

An error has occurred while submitting. Please try again later...

Thank you!

Your form was submitted successfully

Email Us

  • All fields are required unless indicated optional

  • 3M takes your privacy seriously. 3M and its authorized third parties will use the information you provided in accordance with ourPrivacy Policy to send you communications which may include promotions, product information and service offers. Please be aware that this information may be stored on a server located in the U.S. If you do not consent to this use of your personal information, please do not use this system.

  • Submit

Our apologies...

An error has occurred while submitting. Please try again later...

Thank you!

Your form was submitted successfully

Similar products

Current product

3M™ Twin Axial PCI Express X16 Extender Assemblies3M™ Twin Axial PCI Express X16 Extender Assemblies Gen 4.0
3M™ Multi-Channel I/O Twin Axial Cable Assembly, 8MS8 Series3M™ Multi-Channel I/O Twin Axial Cable Assembly 8MS8 Series
Application High-speed Data Transmission
Characteristic Impedance 85 ohms
Connector Style (End A) Edgecard
Connector Style (End B) Receptacle
Connector Type (End A) ST
Connector Type (End B) ST
Form Factor PCIe© CEM, PCIe© Card Edge
Number of Cable Assembly Lanes x16
Number of Contacts 164
Product Usage Riser Cables
Protocol PCIe©
Standard Size 0.25 m,0.5 m
Tech Sheet Number TS-2721
Wire Gauge (Imperial) 31 AWG
