3M™ PILC Accessory Oil Stop Kits

1 of 1

Hover to zoom

Seals the oil inside the paper-insulated, lead-covered cable
Environmentally seals the accessory end, as well as the cable jacket
IEEE Approved

View all details

For industrial/occupational use only. Not for consumer sale or use.

Specifications

Attribute Name	Value
Brand	3M™
Cable Shielding	Paper Insulated Lead Covered (PILC)
Conductor Size by Voltage	(15 kV,) 350-600 kcmil, (15 kV,) 4-3/0 AWG, (15 kV,) 4/0 AWG-300 kcmil, (15 kV,) 750-1000 kcmil, (25/28 kV,) 2-1/0 AWG, (25/28 kV,) 2/0 AWG-300 kcmil, (25/28 kV,) 350-800 kcmil
Conductor Sizes	1 AWG, 1/0 AWG, 1000 kcmil, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4 AWG, 4/0 AWG, 400 kcmil, 500 kcmil, 600 kcmil, 650 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil
Family	200 amp Load Break Accessories
Manufacturing Origin	USA
Maximum Insulation Diameter (Over Paper)	0.58 in, 0.72 in, 0.92 in, 1.10 in
Maximum Insulation Diameter (Over Paper) (Metric)	14.7 mm, 18.3 mm, 23.4 mm, 27.9 mm
Maximum Lead Diameter	1.1 in, 1.3 in, 1.6 in, 2 in
Maximum Lead Diameter (Metric)	27.9 mm, 33.0 mm, 40.6 mm, 50.8 mm
Maximum Operating Voltage	15 kV, 25/28 kV
Product Type	Accessory
Units per Case	1
Voltage	15 kV, 25/28 kV

Details

Seals the oil inside the paper-insulated, lead-covered cable
Environmentally seals the accessory end, as well as the cable jacket
IEEE Approved

3M™ PILC Accessory Oil Stop Kit is specifically designed to seal the oil inside the paper insulated, lead covered cable. The kit offers an accessory ground lead and it environmentally seals the accessory end, as well as the cable jacket.

3M™ PILC Accessory Oil Stop Kit contains all the necessary accessories that are required for sealing PILC cables. It includes a cold shrink oil stop tube, cold shrink jacket tube, white restricting tape, Scotch® Rubber Tape 130C, Scotch® Semi Conducting Tape 13, a ground lead with accessory bleed wire and mastic seal strips. IEEE Approved.

Resources

Catalogs

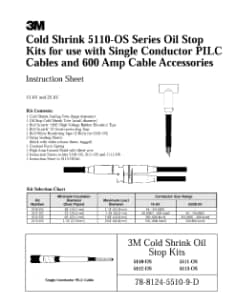

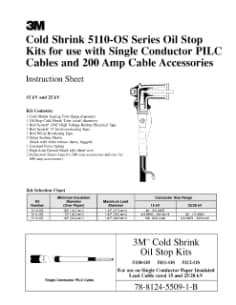

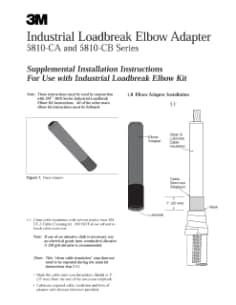

Instructions

Product Selection Guides

Regulatory Material

EMD Shelf Life Statement (PDF, 90.3KB)

Safety Data Sheets

Oil Stop Kit (PDF)
