  6. Scotch® Fire-Retardant Electric Arc Proofing Tape 77W, 1-1/2 in x 20 ft, White/Gray, 1 roll/carton, 10 rolls/Case

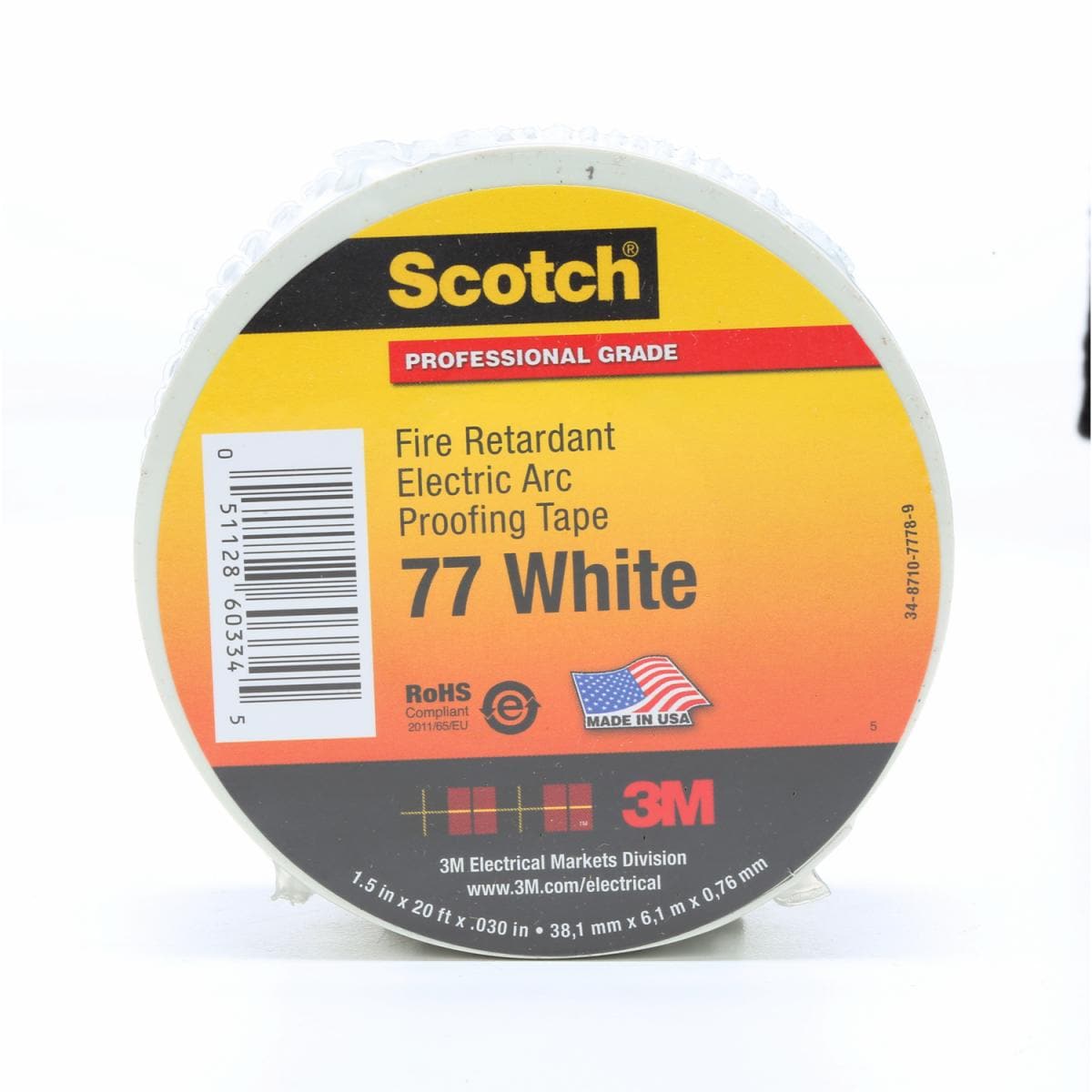

Scotch® Fire-Retardant Electric Arc Proofing Tape 77W, 1-1/2 in x 20 ft, White/Gray, 1 roll/carton, 10 rolls/Case

Part Number 77W-1.5X20FT3M ID 80611605991UPC 00051128603345
  • Intumescent elastomer backing
  • For protecting most types of electrical cables when exposed to potential failures in an adjacent cable
  • Conformability offers virtually wrinkle-free wrapping with minimal effort
  • UL Listed and RoHS 2011/65/EU Compliant
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
Specifications
Attribute Name
Value
Adhesive Type
Non-adhesive
Application
Electrical Maintenance
Application/Industry
Commercial Construction, Industrial Construction, Maintenance and Repair Operations, Mining, Residential Construction, Solar, Utility, Wind Power
Brand
Scotch®
Color Family
Gray
Elongation at Break
850 %
Features
Self-Extinguishing, UV-resistant
Overall Length (Imperial)
20 ft
Overall Length (Metric)
6 m
Overall Width (Imperial)
1.5 in
Overall Width (Metric)
38.1 mm
Product Color
Gray, White
Rolls per Carton
1
Rolls per Case
10
Shelf Life
5 Year
Specifications Met
Consolidated Edison Co. Test EO-5343-14
Tape Grade
Professional
Details
  • Intumescent elastomer backing
  • For protecting most types of electrical cables when exposed to potential failures in an adjacent cable
  • Conformability offers virtually wrinkle-free wrapping with minimal effort
  • UL Listed and RoHS 2011/65/EU Compliant

Scotch® Tape 77 is a 30 mil thick, premium grade, flame retardant, electric arc proofing tape. This tape is 600V rated and is suitable to protect most types of electrical cables when exposed to potential failures in an adjacent cable. It is designed with a flexible unsupported elastomer, which makes it easy to apply and easy to remove for cable inspection.

For industrial/occupational use only. Not for consumer sale or use.

3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use.  Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice.  Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage.  For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.
