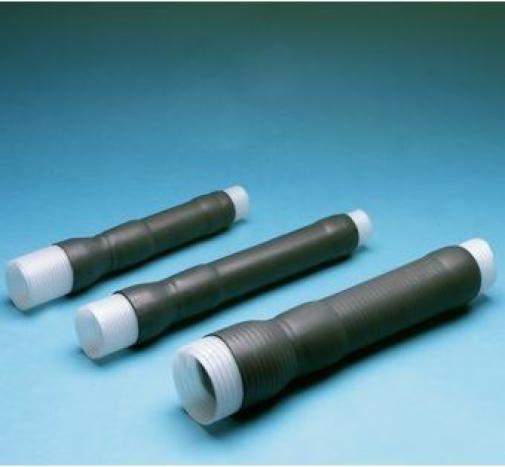

3M™ Cold Shrink QT-II Outdoor Termination Kit 5654, JCN Shielding, 15-25/28 kV, 1.31-2.10 in (33-53 mm) Cable Insul. O.D., 1/kit

3M™ Cold Shrink QT-II Outdoor Termination Kit 5654, JCN Shielding, 15-25/28 kV, 1.31-2.10 in (33-53 mm) Cable Insul. O.D., 1/kit

Part Number 5654
3M ID 7000132453
UPC 00054007697930,50054007697935

One-piece cold shrink termination.

High dielectric-constant material regulates the distribution of electric field stress

Suitable for outdoor, weather exposed applications

Frequently viewed resources

Tech Data Sheet (PDF, 247KB)Safety Data Sheet (PDF, 0B)

Voltage	15 kV, 25/28 kV
Conductor Sizes (Imperial)	900 kcmil, 750 kcmil, 1500 kcmil, 600 kcmil, 1000 kcmil, 500 kcmil, 700 kcmil, 800 kcmil, 1250 kcmil
Insulation Outer Diameter (Metric)	33.274 mm, 34.544 mm, 34.798 mm, 35.052 mm, 35.306 mm, 35.56 mm, 35.814 mm, 36.068 mm, 33.528 mm, 33.782 mm, 34.036 mm, 34.29 mm, 37.084 mm, 37.338 mm, 37.592 mm, 36.322 mm, 36.576 mm, 36.83 mm, 37.846 mm, 38.1 mm, 38.354 mm, 38.608 mm, 38.862 mm, 39.116 mm, 39.37 mm, 41.148 mm, 41.402 mm, 41.656 mm, 41.91 mm, 42.164 mm, 42.418 mm, 42.672 mm, 42.926 mm, 43.18 mm, 43.434 mm, 40.132 mm, 39.624 mm, 40.386 mm, 40.64 mm, 39.878 mm, 40.894 mm, 43.688 mm, 43.942 mm, 44.958 mm, 44.196 mm, 44.45 mm, 45.212 mm, 45.466 mm, 51.562 mm, 44.704 mm, 51.816 mm, 45.974 mm, 46.228 mm, 46.482 mm, 45.72 mm, 50.038 mm, 49.276 mm, 49.53 mm, 50.292 mm, 50.546 mm, 50.8 mm, 49.784 mm, 51.054 mm, 46.736 mm, 46.99 mm, 47.244 mm, 47.498 mm, 47.752 mm, 48.006 mm, 48.26 mm, 48.514 mm, 48.768 mm, 49.022 mm, 51.308 mm, 52.07 mm, 52.578 mm, 52.324 mm, 52.832 mm, 53.086 mm, 53.34 mm
Insulation Outer Diameter (Imperial)	1.31 in, 1.32 in, 1.33 in, 1.41 in, 1.44 in, 1.45 in, 1.42 in, 1.43 in, 1.35 in, 1.36 in, 1.37 in, 1.34 in, 1.38 in, 1.39 in, 1.46 in, 1.47 in, 1.48 in, 1.52 in, 1.53 in, 1.54 in, 1.49 in, 1.4 in, 1.51 in, 1.56 in, 1.57 in, 1.58 in, 1.55 in, 1.5 in, 1.61 in, 1.59 in, 1.62 in, 1.63 in, 1.64 in, 1.65 in, 1.66 in, 1.67 in, 1.68 in, 1.69 in, 1.6 in, 1.71 in, 1.72 in, 1.74 in, 1.75 in, 1.73 in, 1.77 in, 1.78 in, 1.79 in, 1.7 in, 1.76 in, 1.84 in, 1.85 in, 1.86 in, 1.82 in, 1.83 in, 1.87 in, 1.81 in, 1.88 in, 1.89 in, 1.8 in, 1.91 in, 1.92 in, 1.93 in, 1.94 in, 1.96 in, 1.97 in, 1.98 in, 1.95 in, 1.99 in, 2.01 in, 1.9 in, 2.02 in, 2.03 in, 2.05 in, 2.06 in, 2.04 in, 2.07 in, 2.08 in, 2.09 in, 2.1 in, 2 in, 1.09 in, 0.74 in
Cable Shielding	Jacketed Concentric Neutral (JCN)
Number of Skirts	6

Where to Buy

Specifications

Details

Highlights

One-piece cold shrink termination
High dielectric-constant material regulates the distribution of electric field stress
Suitable for outdoor, weather exposed applications
Silicone rubber insulation is track-resistance and hydrophobic
Silicone cold shrink application provides constant radial pressure, "living seal"
Voltage ratings: 4 skirt kits up to 15kV, 110 kV BIL; 6 skirt kits up to 25/28 kV, 150 kV BIL; 8 skirt kits up to 35 kV, 200 kV BIL
Meets IEEE Standard 48, Class 1 for outdoor, weather-exposed applications

3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
