Scotch® Vinyl Electrical Tape Super 88, 1-1/2 in x 36 yd, Black, 12 rolls/Case
- Part Number 88-1.5X36YD
- 3M ID 7000031459
- UPC 00054007103493
Heavy-duty, all-weather performance for long-lasting protection
Engineered to help provide robust protection in harsh indoor, extreme, and exposed outdoor environments.
Features at a Glance
-
Durable Electrical and Mechanical ProtectionProvides dependable primary electrical insulation for a range of splice and termination work, particularly heavy-duty operations.
- Primary electrical insulation for wire and cable splices up to 600 V
- Excels in solid dielectric cable insulation, synthetic and rubber cable splicing, cable harnessing, and more
- A durable 8.5 mil (0.216 mm) thickness helps support faster build-up with fewer wraps
- Offers long-lasting protection for electrical and mechanical operations
-
Strong Environmental ResistanceBuilt to withstand outdoor exposure and tough jobsite conditions without sacrificing performance.
- Excellent UV resistance, cold-weather durability, and flame-retardant performance
- High conformability that holds on irregular shapes to create a secure seal
- Enhanced defense on LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
- Ideal for both indoor and outdoor applications
-
High Adhesion in any SeasonBuilt with a pressure-sensitive rubber-resin adhesive that sticks fast and holds strong across a broad range of conditions.
- Maintains adhesion in cold or humid environments
- Cold-weather application (minimum): 0°F (−18°C)
- Continuous operating temperature (maximum): 221°F (105°C)
-
Certified QualityBacked by third‑party certifications that help verify safety, performance, and material compliance.
- UL 510 Listed
- CSA Certified
- VDE Mark (Cert. 130462)
- IEC and RoHS Compliant
Applications
-
Primary Insulation up to 600 VFor low-voltage splicing, terminations, and general insulation. It maintains dielectric strength and a tight seal under stress, vibration, and temperature changes.
-

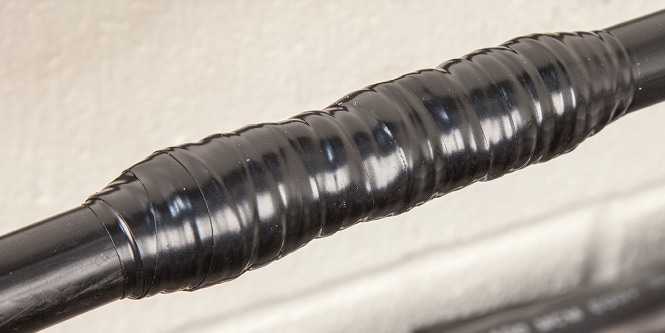

Jacketing and OverwrapApply as an outer jacket layer to guard underlying insulation from abrasion, impact, and moisture. The durable PVC backing and pressure-sensitive adhesive provide long-term resistance to wear and contaminants.
-

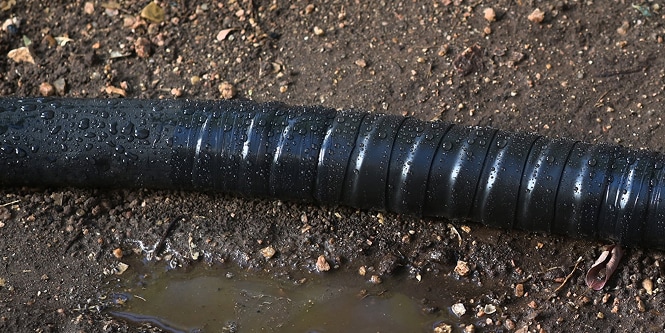

Built for harsh indoor and exposed outdoor applicationsEngineered for professional performance in all weather conditions—from cold outdoor installs to hot mechanical rooms—Scotch® Super 88 adheres securely and stays flexible for durable cable jacket repairs and moisture-resistant splices.
Details
Highlights
- RELIABLE PERFORMANCE: Provides a protective jacket and primary electrical insulation for splices up to 600V in harsh indoor, extreme, and exposed outdoor applications
- ENDURES THE ELEMENTS: Protects in extreme environments, making it a reliable solution for long-lasting performance
- MULTI-PURPOSE: Excels in low-voltage primary and secondary insulation, cable jacketing, mechanical protection, and padding
- BUILT STRONG: Engineered with a rubber-resin adhesive, PVC backing, and heavy tape thickness for excellent electrical and mechanical protection that promotes faster build-up with fewer wraps
- ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
- TEMPERATURE-RESISTANT: Performs within temperatures from 0 °F to 221 °F (-18 °C to 105 °C)
- HIGHLY COMPATIBLE: Works with solid dielectric cable insulations, rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins
- SPECIFICATIONS: Meets the standard for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, compliant with IEC 60454-3-1-7/F-PVCP/90, and RoHS, and is flame retardant, sunlight, cold resistant per (UL510) standards
Scotch® Vinyl Electrical Tape Super 88 is an all-weather, premium-grade tape created to provide a protective jacket and primary electrical insulation for splices up to 600V, with a total thickness of 8.5 mil (0.216 mm) when applied. The thickness of the tape broadens the range of applications, particularly heavy-duty operations. This tape is engineered with pressure-sensitive rubber resin adhesive and elastic PVC backing, providing electrical and mechanical protection for a variety of applications. It is known for its strength and reliability, excelling in extreme indoor and outdoor conditions to help protect electrical conductors from UV exposure. Whether the application involves low-voltage primary or secondary insulation, cable jacketing, or mechanical protection and padding, Scotch® Vinyl Electrical Tape Super 88 offers excellent insulation and adhesion properties. Meeting the requirements for flame retardancy, the tape can be used within temperatures from 0 °F to 221 °F (-18 °C to 105 °C) and is UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90, IEC 60454-3-1-7/F-PVCP/90 Certified, and RoHS Compliant. Discover this tape for reliable environmental protection and performance.

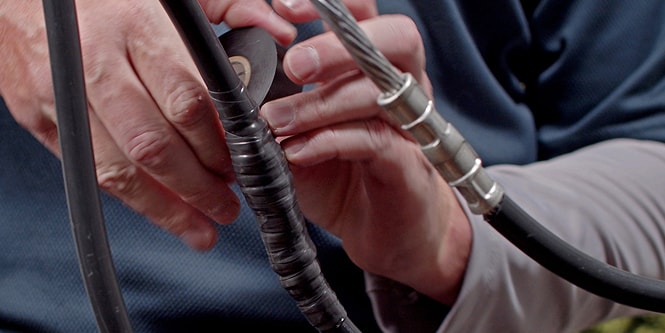

Scotch® Vinyl Electrical Tape Super 88 and the other products in this family are designed to address the daily challenges customers face in the industry. Through innovation and rigorous testing, 3M is committed to delivering high-performance products that helps customers enhance application efficiency and effectiveness, featuring aggressive backings and adhesives that endure environments with extreme temperatures and moisture. For best application practices, apply in half-lapped layers with enough tension to create a uniform wrap. For most applications, this tension will reduce the tape width to approximately 5/8 of its original size. When taping pigtail splices, wrap the tape beyond the ends of the wires and then fold it back to provide a protective cushion against cut-through. For the final wrap, apply the tape without tension to help prevent flagging. Discover how Scotch® Vinyl Electrical Tape Super 88 can enhance the performance of your electrical applications.
A thicker, stronger option for heavy-duty installations
8.5 mil PVC Backing
Thicker construction helps deliver better padding and faster insulation build-up
Rubber-Resin Adhesive
Formulated to help maintain a long-lasting seal in harsh environments
All-Weather Durability
Designed to help resist UV, moisture, and temperature extremes
Typical properties
Resources
Reviews
Similar products
| Overall Width (Metric) | 38 mm | |
| Total Tape Thickness without Liner (Metric) | 0.22 mm | |
| Overall Width (Imperial) | 1.5 in | |
| Product Color | Black | |
| Overall Length (Imperial) | 36 yd |
