Scotch® 130C Professional Grade Linerless Rubber Splicing Tape

Scotch® Linerless Rubber Splicing Tape 130C, 1-1/2 in x 30 ft, Black, 1 roll/carton, 12 rolls/Case

Part Number 130C-1.5X30FT, 3M ID 7000006086, UPC 00054007417187, National Stock Number 5970012712793
Overview
Specifications
Details
Resources
Customer Reviews
Scotch® 130C Professional Grade Linerless Rubber Splicing Tape
  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
  • Provides an excellent thermal dissipation of splice heat
  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
  • Withstands temperatures up to 194 °F (90 °C)
 More...
View all details
View Legal Disclaimer
For industrial/occupational use only. Not for consumer sale or use.
Specifications
Attribute Name
Value
Adhesive Type
Rubber
Application
Insulation
Application/Industry
Appliance and Fixture, Commercial Construction, Communications, Industrial Construction, Maintenance and Repair Operations, Mining, Solar, Utility, Wind Power
Backing (Carrier) Material
Ethylene Rubber
Backing (Carrier) Thickness (Metric)
0.76 mm
Brand
Scotch®
Case Quantity
100 Rolls
Color Family
Black
Dielectric Strength
750 V/mil
Elongation at Break
850 %
Features
Self-sticking, UV-resistant, Vulcanizing
Insulation Resistance
>10^15 ohms
Maximum Operating Temperature (Celsius)
90 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
194 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
0 Degree Celsius
National Stock Number
5970012712793
Overall Length (Imperial)
30 ft
Overall Length (Metric)
9.1 m
Overall Width (Imperial)
1.5 in
Overall Width (Metric)
38.1 mm
Product Color
Black
Rolls per Carton
1
Rolls per Case
12
Shelf Life
5 Year
Size (Imperial)
1.5 in x 30 ft
Size (Metric)
38.1 mm x 9.1 m
Specifications Met
ASTM D-4325, ASTM D-4388 Type 1, 2 & 3, HH-I-553C, RoHS 2011/65/EU
Tape Grade
Premium
TDS Required
Yes
Tensile Strength (Imperial)
250 psi
Tensile Strength (Metric)
1723 kPa
Total Tape Thickness without Liner (Imperial)
30 mil
Total Tape Thickness without Liner (Metric)
0.76 mm
Units per Case
24
Voltage Rating
69 kV
Details
  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
  • Provides an excellent thermal dissipation of splice heat
  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
  • Withstands temperatures up to 194 °F (90 °C)
  • ASTM Approved and RoHS 2011/65/EU Compliant

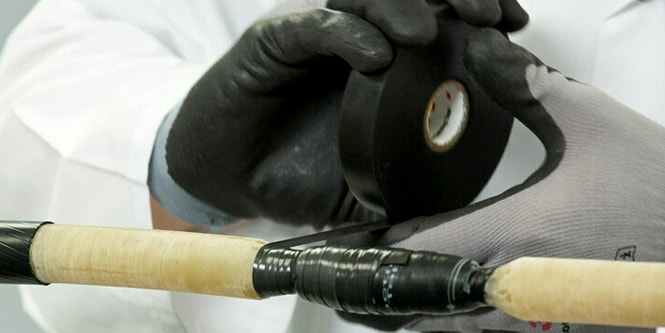

Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.

Scotch® Tape 130C is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and a self fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV. This tape is designed for low and high voltage, bus bar insulation, end sealing of cables and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void free buildups. ASTM Approved and RoHS 2011/65/EU Compliant.
