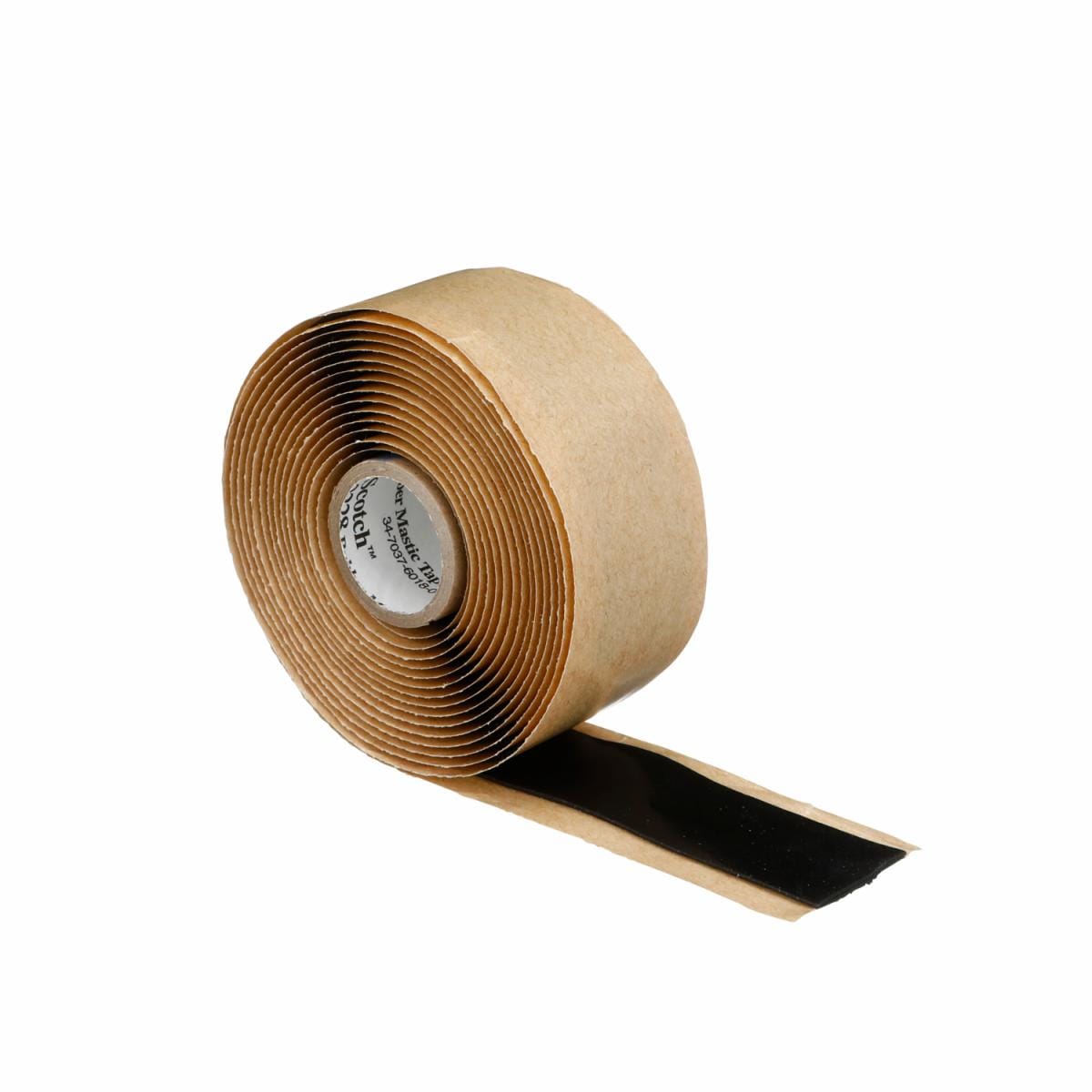

  6. Scotch® Rubber Mastic Tape 2228, 1 in x 10 ft, Black, 1 roll/carton, 12 rolls/Case

Scotch® Rubber Mastic Tape 2228, 1 in x 10 ft, Black, 1 roll/carton, 12 rolls/Case

  • Part Number 2228-1X10FT
  • 3M ID 7000006048
  • UPC 00054007507277

Is a UL recognized component for applications up to 130°C (266°F)

Primary electrical insulation for cable and wire connections and vibration padding for motor leads rated up to 1000 volts

Thick construction allows quick application build–up and padding over irregular connections

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 186KB)
Overall Width (Metric) 25.4 mm
Total Tape Thickness without Liner (Metric) 1.65 mm
Overall Width (Imperial) 1 in
Total Tape Thickness without Liner (Imperial) 65 mil
Adhesive Type Rubber

Details

Highlights
  • Is a UL recognized component for applications up to 130°C (266°F)
  • Primary electrical insulation for cable and wire connections and vibration padding for motor leads rated up to 1000 volts
  • Thick construction allows quick application build–up and padding over irregular connections
  • Applicable over a temperature range of 32 to 100°F (0 to 38°C) without loss of physical properties
  • RoHS 2011/65/EU Compliant

Scotch® Rubber Mastic Tape 2228 is a 65-mil thick, premium grade, highly conformable self-fusing rubber electrical insulating and sealing tape.

Scotch® Rubber Mastic Tape 2228 consisting of an ethylene propylene rubber (EPR) backing coated with an aggressive, temperature-stable mastic adhesive on a liner. Designed for electrical insulating and moisture sealing, intended for both indoor and weather exposed outdoor applications including resistance to UV exposure.

Typical properties

Resources

Manufacturing Origin: USA

The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.

Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
