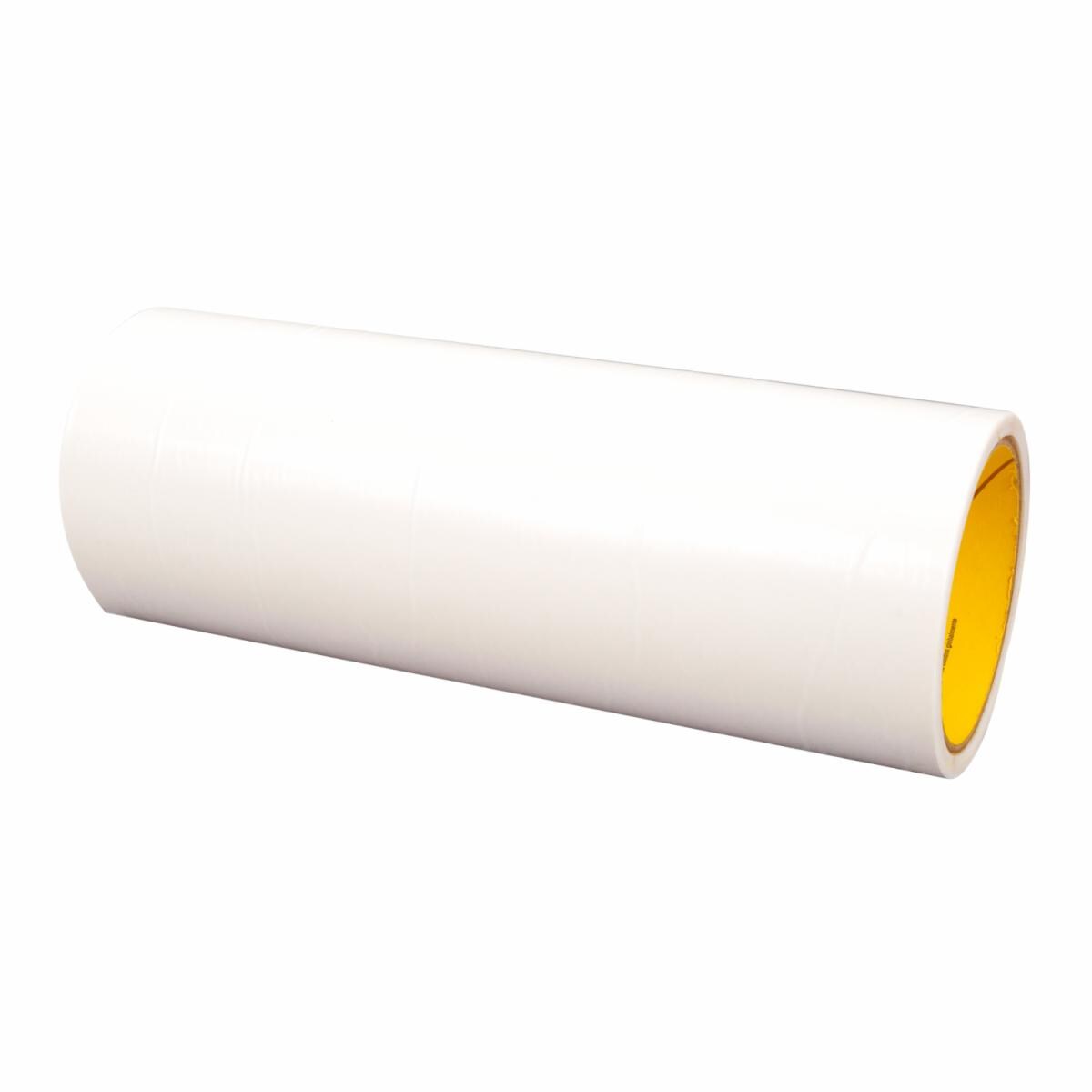

3M™ Double Coated Tape 3028EK, 11 5/8 in x 600 yd, 1 Roll/Case
- Part Number 3028EK
- 3M Product Number 3028EK
- 3M ID 7010334732
- UPC 00051111076835
Details
Highlights
- 5.6 mil double coated tape with a polyester PET carrier on an extensible kraft paper liner which facilitates narrow slitting
- High adhesion to a wide variety of materials such as HSE high surface energy, LSE low surface energy and metals. Excellent shear holding power, high temperature resistance and excellent UV resistance
- High performance joining and bonding in electronics, medical, and transportation markets. Withstands tough application environments
3M™ Double Coated Tape 3028EK is a 5.6 mil double coated tape with adhesive 350 on a 5.5 mil white, extensible kraft liner, no print
Good temperature and solvent resistance. High wet grab and initial adhesion and good shear holding power to a wide variety of materials, including many plastics.
Get Data for Finite Element Analysis
Pressure Sensitive Adhesive properties are frequency and temperature sensitive. 3M has developed Material Data Cards (MDCs) for common 3M PSAs for use with many commercially available FEA software applications. Learn more about Finite Element Analysis for tapes and adhesives or register for our Digital Materials Hub to download a material data card today.
Typical properties
Resources
Reviews
Similar products
| Adhesive Type | High Performance Acrylic Adhesive 350 | ||
| Back Side Adhesive Thickness (Imperial) | 2.3 mil | ||
| Back Side Adhesive Thickness (Metric) | 0.058 mm | ||
| Back Side Adhesive Type | High Performance Acrylic Adhesive 350 | ||
| Backing (Carrier) Material | Polyester | ||
| Backing (Carrier) Thickness (Imperial) | 1 mil | ||
| Backing (Carrier) Thickness (Metric) | 0.025 mm | ||
| Brands | 3M™ | ||
| Carrier Material | Polyester | ||
| Carrier Thickness | 0.09514 mil | ||
| Carrier Thickness (Metric) | 0.03 mm | ||
| Core Size (Imperial) | 3 in | ||
| Core Size (Metric) | 76.2 mm | ||
| Face Side Adhesive Thickness (Imperial) | 2.3 mil | ||
| Face Side Adhesive Thickness (Metric) | 0.058 mm | ||
| Face Side Adhesive Type | High Performance Acrylic Adhesive 350 | ||
| Industries | Paper, Transportation, Specialty Vehicles, Metalworking, General Industrial, Medical, Military & Government, Electronics, Automotive | ||
| Master Size Length (Imperial) | 108 Linear Yard | ||
| Master Size Length (Metric) | 98.8 m | ||
| Master Size Width (Imperial) | 48 in |
