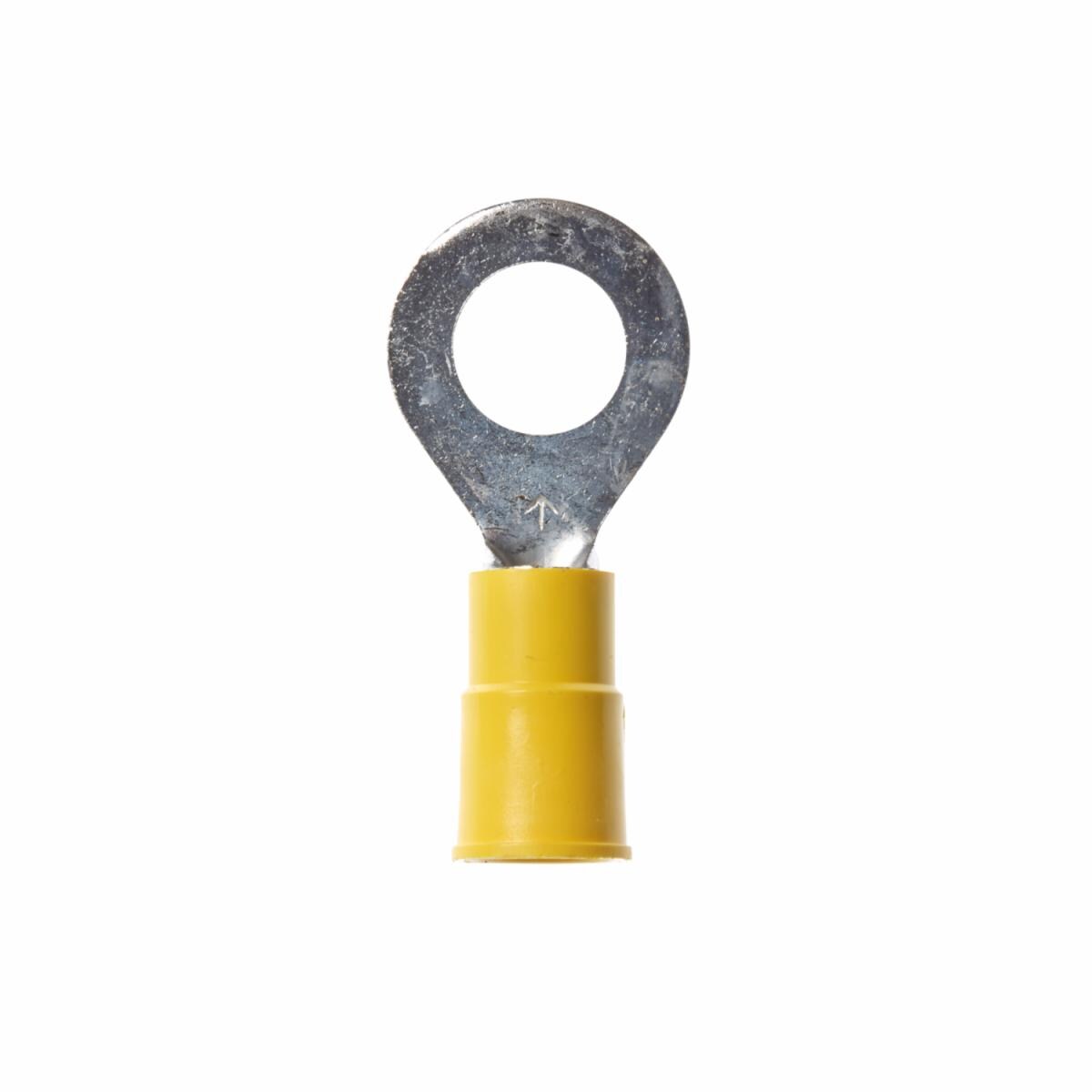

  6. 3M™ Highland™ Vinyl Insulated Ring Terminal RV10-6Q, AWG 12-10, 25/bag, 250/Case

3M™ Highland™ Vinyl Insulated Ring Terminal RV10-6Q, AWG 12-10, 25/bag, 250/Case

Part Number RV10-6Q3M ID 80611602972UPC 00051128600368
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
 More...
View all details
View Legal Disclaimer
For industrial/occupational use only. Not for consumer sale or use.
Specifications
Attribute Name
Value
Barrel Length (Imperial)
0.25 Inch
Barrel Style
Butted
Brand
Scotchlok™
Clearance (C)
0.29 Inch
Dimension E
0.84 Inch
Insulation Material
Vinyl
Manufacturing Origin
USA
Maximum Conductor Size (Imperial)
10 AWG
Maximum Insulation Outer Diameter (Imperial)
0.25 in
Minimum Conductor Size (Imperial)
12 AWG
Minimum Stud Diameter (Imperial)
0.19 in
Minimum Stud Diameter (Metric)
5 mm
Overall Length (Imperial)
1.03 in
Overall Width (Imperial)
0.38 in
Packaging
25 per bag
Ring Type
Standard
Stud Size
#6
Terminal Style
Standard
Terminal Type
Ring
Details
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.
