3M™ Adhesive Transfer Tape L3+T5, Clear, 54 in x 250 yd, 5 mil, 3 Roll/Pallet

  • 3M Product Number L3+T5
  • 3M ID 7100112502
  • UPC 00076308861063

Good adhesion to elastomeric substrates

Bonds well to neoprene rubber, butyl rubber, and many versions of EPDM rubber

Excellent peel adhesion and shear strength

View more details
Frequently viewed resources

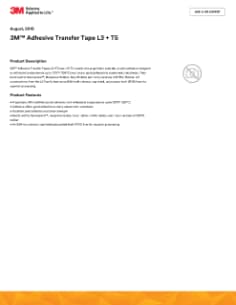

Tech Data Sheet (PDF, 126KB)
Ask a 3M Expert

Details

Highlights
  • Good adhesion to elastomeric substrates
  • Bonds well to neoprene rubber, butyl rubber, and many versions of EPDM rubber
  • Excellent peel adhesion and shear strength
  • Withstands temperatures up to 275ºF (135ºC)

3M™ Adhesive Transfer Tape L3+T5 is a 5-mil transfer tape that offers maximum conformability and good adhesion to more structured surfaces. It features an 83 lb. tan unprinted polycoated kraft liner for superior processing.

Recommended for Lamination to Many Open and Closed Cell Foams
3M™ Adhesive Transfer Tape L3+T5 features 5.0 mils (.012 mm) of adhesive coated on a 6.2 mils (.14 mm), 83 lb. polycoated kraft paper liner. It can withstand temperatures up to 275°F (135°C). With excellent peel adhesion and shear strength, this adhesive transfer tape (PDF, 407.1 Kb) offers a reliable bond on neoprene rubber, butyl rubber, and many versions of EPDM rubber.

Recommended Applications

  • Bonding to rubber
  • Attaching rubber pads and gaskets


Understanding Adhesive Transfer Tapes
3M adhesive transfer tapes are pressure sensitive adhesives coated on a release liner, without a scrim or carrier.These adhesive tapes are more conformable than double coated adhesive tapes for applications with textured or irregular surfaces. For application, the tape is positioned, adhesive side down, to a surface and the liner is removed, exposing the backside of the adhesive to the joining surface.
