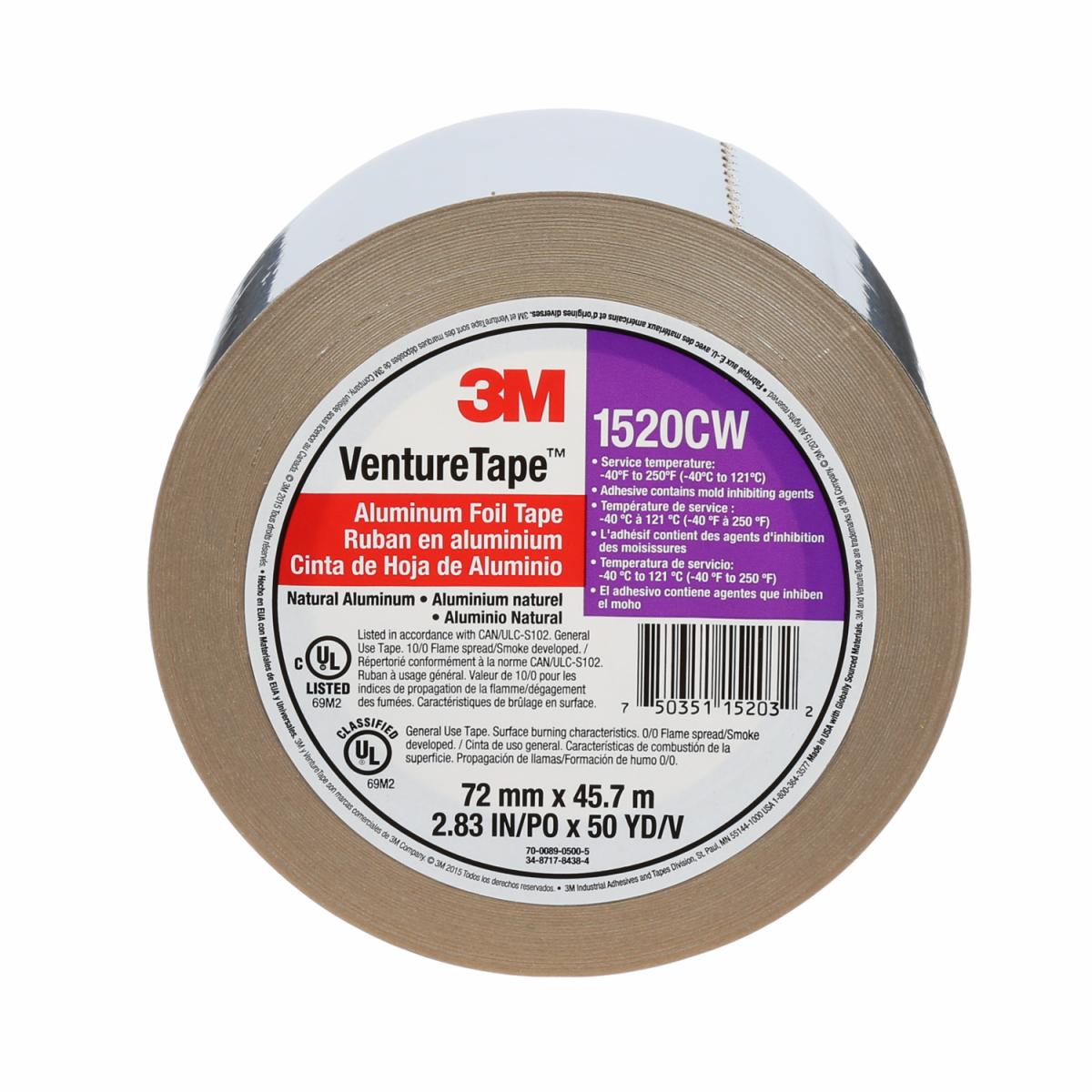

3M™ Venture Tape™ Aluminum Foil Tape 1520CW is a conformable, 3.2 mil tape that is suitable for masking and sealing in general-purpose heat shielding and light-reflecting applications.
Coated with cold-weather acrylic adhesive, this durable tape performs well in a wide range of environmental conditions, and bonds and seals at temperatures as low as -10 °F (-23 °C). It is backed by foil that allows it to easily conform to irregular surfaces and on fibrous and sheet metal ductwork.
This pressure-sensitive tape is hand tearable and adheres quickly without special application methods or additional tools. It maintains its form without lifting or curling, even after an extended period of time.
This tape meets the UL723 flame/smoke rating, as well as the CAN/ULC S102 classification flame/smoke rating.
For optimal performance in cold environments, 3M™ Venture Tape™ Aluminum Foil Tape 1520CW provides a durable bond in various masking and sealing operations.
A Flexible Foil Tape for a Range of Environments
3M™ Venture Tape™ Aluminum Foil Tape 1520CW is a nominal 1.8 mil foil backed tape that excels in a range of applications and environments including low temperatures. It is excellent for general-purpose heat shielding and light reflecting applications. Its aluminum foil backing is coated with a cold weather acrylic adhesive. The aluminum backing conforms around corners and to curved and irregular surfaces with ease and is an ideal choice for applications on both fibrous and sheet metal ductwork. The adhesive performs extremely well in demanding cold and hot temperature applications. The tape is hand tearable and installs easily, eliminating the need for additional tools or applications methods.
3M™ Venture Tape™ Aluminum Foil Tape 1520CW is UL723 Classified (10/10 Flame/Smoke Rating).
- Fibrous ductboard, sheet metal ducts and blankets
- Applications requiring flexibility and good temperature performance
- General purpose foil tape for a variety of applications
Excels in Demanding Temperatures
3M™ Venture Tape™ Aluminum Foil Tape 1520CW is coated with a pressure sensitive cold weather solvent acrylic adhesive specifically designed for cold weather applications. This adhesive performs well in both demanding temperature and humidity applications. It adheres immediately on contact to a variety of materials, including fibrous and sheet metal ducts. With a service temperature ranging from -40°F/-40°C to 260°F/127°C, this tape can be applied in a variety of environmental conditions. Once bonded, it will provide good holding power for extended periods with good aging properties that resist lifting and curling.
3M™ Metal Foil Tapes
Aluminum is just one of the metal-backed tapes available from 3M. Our foil tapes resist failure from common sources of degradation including moisture, ultraviolet rays and many chemicals, and are commonly used for reflecting, wrapping, masking, sealing, and more in applications from air ducts to washing machines. As with all 3M products, our 3M™ Venture Tape™ Aluminum Foil Tape 1520CW is supported by exclusive 3M technical expertise and application advice. 3M aluminum foil tapes are suitable for demanding applications in construction, aerospace, automotive, appliance, maintenance, repair and operations and many more segments. They are also thermally conductive for heating/cooling efficiency.
