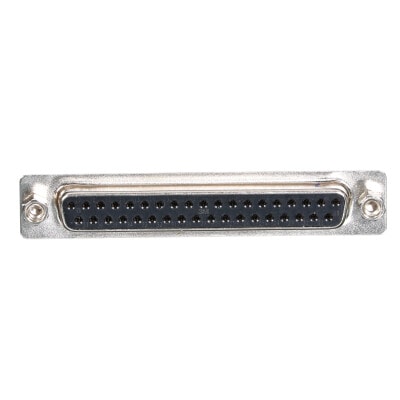

3M™ Boardmount D-Sub Straight Socket Connector 885 Series

3M ID B5005537003
UPC 00068060597595

Available contact: 9, 15, 25 and 37 positions

360° shielding for excellent EMI protection

30µ” gold plating within contact area for a reliable connection

Frequently viewed resources

Details

Highlights

Available contact: 9, 15, 25 and 37 positions
360° shielding for excellent EMI protection
30µ” gold plating within contact area for a reliable connection
RoHS compliant
Mates with 3M™ D-Sub Plug 8200 Series
Straight socket connector

3M™ Boardmount D-Sub Straight Socket Connector 885 Series is available in 9, 15, 25, and 37 pos. Offers 360° shielding for excellent EMI protection with 30µ” Gold plating within contact area for a reliable connection. This line is an excellent mate with our 3M™ D-Sub Plug 8200 Series offering.

Typical properties

Details

Resources

Email Us

All fields are required unless indicated optional
First Name
Last Name
Business Email Address
Business Phone
Company
Job Role
Country/Region
PreferredLanguage
State or Province
Product Category
Message
Subscribe to Newsletter
Data Privacy
Marketing Consent
Profiling Consent
End Devices Consent
Consent Legal Text
3M takes your privacy seriously. 3M and its authorized third parties will use the information you provided in accordance with our Privacy Policy to send you communications which may include promotions, product information and service offers. Please be aware that this information may be stored on a server located in the U.S. If you do not consent to this use of your personal information, please do not use this system.
Submit

Thank you!

Your form was submitted successfully

Our apologies...

An error has occurred while submitting. Please try again later...

Similar products

	Current product 3M™ Boardmount D-Sub Straight Socket Connector 885 Series	3M™ D Sub Plug, 8200 Series	3M™ Boardmount D-Sub Straight Plug Connector 884 Series	3M™ Boardmount D-Sub Right Angle Plug Connector 886 Series
Brands	3M™
Connector Style	Receptacle
Mating Contact Finish Material	Gold
Mating Contact Finish Thickness (Imperial)	30 μin
Mating Contact Finish Thickness (Metric)	0.76 μm
Number of Contacts	9 , 15 , 25 , 37
PCB Mounting Angle	Straight
Tech Sheet Number	TS-2792
Termination Method	Solder Tail
eClass 14 Classification Group	27440307
