3M™ Image Quality Polarizer (IQP)

  • 3M Product Number IQP
  • 3M ID B5005356008

Enhance picture quality and contrast

Increase brightness over a wide viewing angle

Enable thinner, lighter-weight designs

View more details
Frequently viewed resources

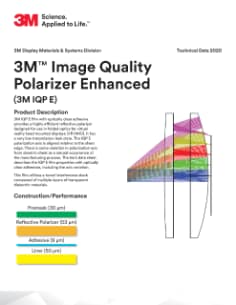

PDF (1) Copy 26Tech Data Sheet (PDF, 560KB)

Details

Highlights
  • Enhance picture quality and contrast
  • Increase brightness over a wide viewing angle
  • Enable thinner, lighter-weight designs
  • Boost efficiency by as much as 30%
  • Very low transmission leak state
  • Recycle light that would otherwise be wasted
  • Save battery life
  • Reduce thermal load

3M™ Image Quality Polarizer (IQP) is a multilayer optical film with an optically clear adhesive for use in folded optics for virtual reality head mounted displays (VR HMD). It is a directly laminated reflective polarizer film that improves polarization efficiency by transmitting one polarization state and reflecting the other, recycling light back into the system, which increases brightness over a wide viewing angle. This increase in efficiency can be used to offset battery consumption and more. By directly laminating the film and increasing reflections within the system, you can design a thinner VR HMD.

  • Design flexibility icon

    Design Flexibility

  • Energy efficiency icon of a lightning bolt

    Energy Efficiency

  • Enhanced picture quality and contrast icon

    Enhanced Picture Quality & Contrast

  • Increased brightness icon of a sun

    Increased Brightness

Banner showing the type of 3M film layers

Multilayer construction with optically clear adhesives

We combine functional layers to create one powerful solution.

*Cross section representation not to scale

  • Graphic showing how 3M™ Image Quality Polarizer works in a VR HMD system
  • See how 3M™ Image Quality Polarizer works in a VR HMD system

    A quarter-wave retarder converts the incident circular polarization to linear polarization, then the reflective polarizer reflects the linearly polarized light back through the quarter-wave retarder. The 50:50 mirror reflects half of the now circularly polarized light back through the quarter-wave retarder. The light is again converted to linear polarization which is now transmitted through the reflective polarizer and forms a virtual image for the eye.

VR head-mounted display assembly icon of a person with a VR headset on

Typical properties

Resources

Similar products

Application VR Head-Mounted Display Assembly
eClass 14 Classification Group 24210501
