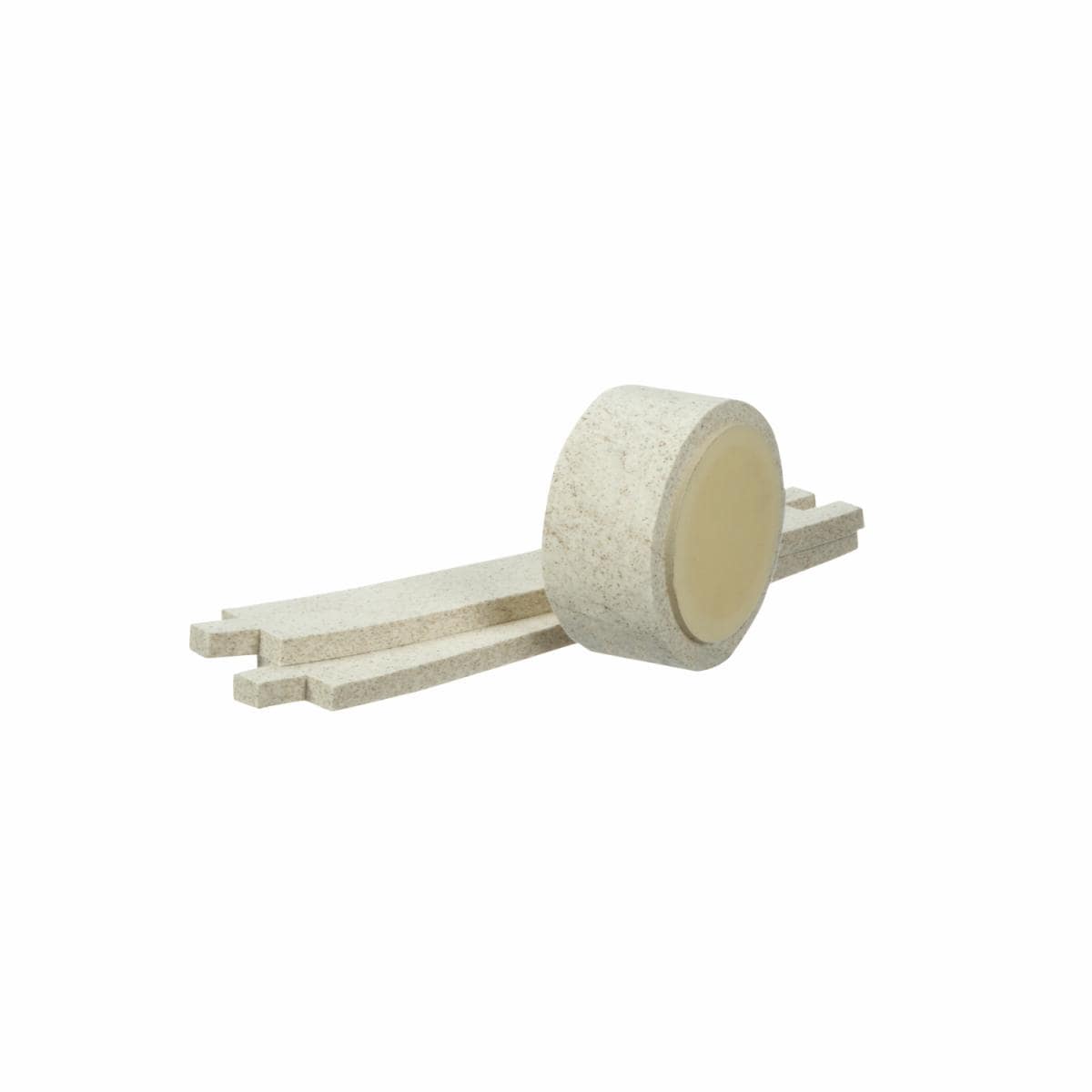

3M™ Interam™ Mat Mount 850HT

  • 3M ID B5005329006

Good retention performance over wide operating temperature range (ambient to 1050 °C MMI)

Single part construction for larger mounting gaps 5.0 mm - 8.0 mm

Excellent canning performance

View more details
Frequently viewed resources
PDF (1) Copy 26Tech Data Sheet (PDF, 166KB)

Details

Highlights
  • Good retention performance over wide operating temperature range (ambient to 1050 °C MMI)
  • Single part construction for larger mounting gaps 5.0 mm - 8.0 mm
  • Excellent canning performance
  • Reduced thickness and improved canning assembly process properties (reduced shear)
  • Design and manufacturing simplification
  • Lower cost alternative to non-intumescent mat mounts

3M™ Interam™ Mat Mount 850HT is cost effective, high temperature performance substrate mounting system that is suitable for use on a wide range of gasoline applications (i.e. manifold-mounted, close-coupled, underbody, and particulate filter). It is designed to have improved canning assembly process properties.

Intumescent Single Layer Mat Solution for A Range of Emission Control Designs
A flexible intumescent mat supplied in a single piece configuration, Interam Mat Mount 850HT is designed to be a cost-effective, high-performance alternative to non-intumescent mat mounts. This high-performance mat features reduced thicknesses to help improve canning assembly process properties and is has excellent resiliency and substrate retention.

Interam Mat Mount 850HT is suitable for a wide range of gasoline applications. The single part construction mat performs well in systems with larger mounting gaps (5.0-8.0mm).

About 3M™ Interam™ Brand Products
3M™ Interam™ Mat Mount 850HT is part of a comprehensive product portfolio encompassing solutions for a wide range of applications in automotive and light-duty vehicle emissions. 3M™ Interam™ Brand Products include intumescent and non-intumescent mat mounts and 2D and 3D molded endcones to meet specific performance requirements. Solutions are available for applications involving high and low temps and erosion, as well as specific fuel systems, gap sizes and more. 3M also offers testing resources, concept consultation, in-depth design expertise and technical support throughout all phases of design and validation in automotive OEM.

Suggested applications
  • Manifold-mounted converters (MMC)
  • Close-coupled converters (CCC)
  • Underbody converters (UCC)
  • Particulate Filters (GPF)
  • Low (ambient) to high temperature (1050°C) monolith-mat interface temperatures (MMI)

Typical properties
