3M™ Automotive Reflective Polarizer (ARP)

  • 3M Product Number ARP
  • 3M ID B5005074008

Increase brightness over a wide viewing angle

Boost efficiency by as much as 30%

Enhance picture quality

View more details
Frequently viewed resources

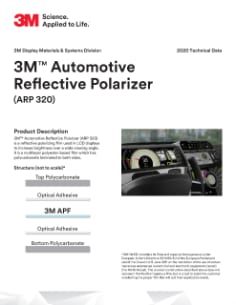

Tech Data Sheet (PDF, 492KB)
  • Rigorously tested for automotive applications

    What makes 3M™ Automotive Reflective Polarizer stand out from comparable 3M™ Reflective Polarizers? It’s tested for durability against higher levels of cold, heat, humidity and thermal shock.

  • Table showing 3M™ Automotive Reflective Polarizer  testing for automotive applications.

Details

Highlights
  • Increase brightness over a wide viewing angle
  • Boost efficiency by as much as 30%
  • Enhance picture quality
  • Recycle light that would otherwise be wasted
  • Save battery life
  • Reduce thermal load

3M™ Automotive Reflective Polarizer (ARP) is a polymer-based multilayer optical film with polycarbonate laminated to both sides that manages polarization of light output in the backlight of an LCD. It is an automotive reflective polarizer film that improves polarization efficiency by transmitting one polarization state and reflecting the other, recycling light back into the system, which increases brightness over a wide viewing angle. This increase in efficiency can be used to offset thermal load and more in automotive LCD applications.

  • Lightning bolt icon for Energy Efficiency

    Energy Efficiency

  • Enhanced picture quality icon

    Enhanced Picture Quality

  • Increased brightness icon of a sun

    Increased Brightness

  • Thermal Management icon

    Thermal Management

Banner showing the type of 3M film layers

Multilayer construction

We combine functional layers to create one powerful solution.

*Cross section representation not to scale

  • Graphic showing 3M™ Automotive Reflective Polarizer and the how recycled light works with an LCD.
  • Reuse light to your advantage

    Films with polarization control from 3M transmit the polarization of light that an LCD uses and reflect the polarization state it doesn‘t back into the backlight where it bounces and returns. Some of this light has changed polarization and is transmitted to the LCD, resulting in less wasted light and a more efficient display.

    3M™ Automotive Reflective Polarizer is a loose film versus solutions that are directly laminated to an LCD panel.

  • Sustainability icon with a leaf in the middle and two arrows in a circle.

    More sustainable screens. Possible with 3M.

    Did you know select 3M™ Automotive Reflective Polarizer products are made with recycled plastics? That means more sustainable screens are possible when you choose 3M.

    Products include:


    • 3M™ Dual Brightness Enhancement Film (DBEF-D2-400 AUTO), which contains up to 7% recycled plastics*
    • 3M™ Dual Brightness Enhancement Film (DBEF-D2-280 AUTO), which contains up to 11% recycled plastics*

    *Based on ISO 14021:2016, FTC Green Guides, and UL recommendations and based on June 2021-June 2022 production excluding packaging or protective liners.

Center information display assembly, Driver information interface assembly, LCD assembly icon, Rear seat entertainment assembly icon

Typical properties

Resources

Related Products

Application Center Information Display Assembly, Driver Information Interface Assembly, LCD Assembly, Rear Seat Entertainment Assembly
Product Usage Backlight
eClass 14 Classification Group 24210501
