3M™ Motor Lead Inline Splice Kits, Non-Shielded and Shielded Cables, 5331- 5334

Products
  • Features shielded, non-shielded cables
  • Designed for splicing motor lead cables to the incoming feeder cables
  • Suitable for use with 30000 Series copper compression lugs or other UL Listed copper lugs
  • 0.3 to 0.51-in O.D. insulation
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
Insulation Outside Diameter by Conductor Size
Insulation_Outside_Diameter_by_Conductor_Size
Insulation Outside Diameter by Conductor Size (Metric)
Insulation_Outside_Diameter_by_Conductor_Size_Metric
Products Available
Available options:
 Insulation Outside Diameter by Conductor Size and Insulation Outside Diameter by Conductor Size (Metric)
All Options
  • Insulation Outside Diameter by Conductor Size
    Insulation Outside Diameter by Conductor Size (Metric)
  • 3M™ Motor Lead Inline Splice 5333, 5-8 kV, 1/0 AWG-250 kcmil (feeder), 2 AWG-250 kcmil (motor lead), 1/case
    Insulation Outside Diameter by Conductor Size
    2-2/0 AWG (0.53-0.71 Inch), 3/0 AWG-250 kcmil (0.70-0.88 Inch)
    Insulation Outside Diameter by Conductor Size (Metric)
    2-2/0 AWG (13.5-18.0 mm), 3/0 AWG-250 kcmil (17.8-22.4 mm)
  • 3M™ Motor Lead Inline Splice 5332, 5-8 kV, 2-1/0 AWG (feeder), 4-1/0 AWG (motor lead), 1/case
    Insulation Outside Diameter by Conductor Size
    4-2 AWG (0.43-0.57 Inch), 2-1/0 AWG (0.52-0.65 Inch)
    Insulation Outside Diameter by Conductor Size (Metric)
    4-2 AWG (10.9-14.5 mm), 2-1/0 AWG (13.2-16.5 mm)
  • 3M™ Motor Lead Inline Splice 5334, 5-8 kV, 250-500 kcmil (feeder), 4/0 AWG-500 kcmil (motor lead), 1/case
    Insulation Outside Diameter by Conductor Size
    4/0-350 kcmil (0.75-0.98 Inch), 350-500 kcmil (0.94-1.12 Inch)
    Insulation Outside Diameter by Conductor Size (Metric)
    4/0-350 kcmil (19.1-24.9 mm), 350-500 kcmil (23.9-28.4 mm)
  • 3M™ Motor Lead Inline Splice 5331, 5-8 kV, 8-4 AWG (feeder), 10-4 AWG (motor lead), 1/case
    Insulation Outside Diameter by Conductor Size
    10-6 AWG (0.30-0.46 Inch), 6-4 AWG (0.37-0.51 Inch)
    Insulation Outside Diameter by Conductor Size (Metric)
    10-6 AWG (7.6-11.7 mm), 6-4 AWG (9.4-13.0 mm)
Close
Specifications
Attribute Name
Value
Brand
3M™
Connection Type
Inline (Shielded or Non-shielded), Pigtail (Non-shielded), Pigtail (Shielded)
Insulation Outside Diameter by Conductor Size
10-6 AWG (0.30-0.46 Inch), 6-4 AWG (0.37-0.51 Inch), 2-2/0 AWG (0.53-0.71 Inch), 3/0 AWG-250 kcmil (0.70-0.88 Inch), 4-2 AWG (0.43-0.57 Inch), 2-1/0 AWG (0.52-0.65 Inch), 4/0-350 kcmil (0.75-0.98 Inch), 350-500 kcmil (0.94-1.12 Inch)
Insulation Outside Diameter by Conductor Size (Metric)
10-6 AWG (7.6-11.7 mm), 6-4 AWG (9.4-13.0 mm), 2-2/0 AWG (13.5-18.0 mm), 3/0 AWG-250 kcmil (17.8-22.4 mm), 4-2 AWG (10.9-14.5 mm), 2-1/0 AWG (13.2-16.5 mm), 4/0-350 kcmil (19.1-24.9 mm), 350-500 kcmil (23.9-28.4 mm)
Insulation Outside Diameter Range
10-6 AWG: 0.30-0.46 in / 6-4 AWG: 0.37-0.51 in, 2-2/0 AWG: 0.53-0.71 in / 3/0 AWG-250 kcmil: 0.70-0.88 in, 4-2 AWG: 0.43-0.57 in / 2-1/0 AWG: 0.52-0.65 in, 4/0-350 kcmil: 0.75-0.98 in / 350-500 kcmil: 0.94-1.12 in
Insulation Outside Diameter Range (Metric)
10-6 AWG: 7.6-11.7 mm / 6-4 AWG: 9.4-13.0 mm, 2-2/0 AWG: 13.5-18.0 mm / 3/0 AWG-250 kcmil: 17.8-22.4 mm, 4-2 AWG: 10.9-14.5 mm / 2-1/0 AWG: 0.52-0.65 in, 4/0-350 kcmil: 19.1-24.9 mm / 350-500 kcmil: 23.9-28.4 mm
Maximum Bolt Length
1-1/2 in, 1-1/4 in, 3/4 in
Maximum Bolt Length (Metric)
19.1 mm, 31.8 mm, 38.1 mm
Maximum Feeder Lead Size
1/0 AWG, 250 kcmil, 4 AWG, 500 kcmil
Maximum Motor Lead Size
1/0 AWG, 250 kcmil, 4 AWG, 500 kcmil
Maximum Operating Voltage
8 kV
PlantAnalystID
ABBA-Z1GUQ
Range Feeder Cable (AWG & kcmil)
1/0-250, 2-1/0, 250-500, 8-4
RoHS 2011/65/EU Compliant
Yes
RoHS EU Comments
RoHS 2011/65/EU compliant without exemption
Splice Cover Inner Diameter
10-6 AWG: 0.24 in/ 6-4 AWG 0.30 in, 2-2/0 AWG: 0.50 in / 3/0 AWG-250 kcmil: 0.60 in, 4-2 AWG: 0.30 in / 2- 1/0 AWG: 0.42 in, 4/0 AWG-350 kcmil: 0.60 in / 350-500 kcmil: 0.84 in
Splice Cover Inner Diameter (Metric)
10-6 AWG: 6.1 mm / 6-4 AWG: 7.6 mm, 2-2/0 AWG: 12.7 mm / 3/0 AWG-250 kcmil: 15.2 mm, 4-2 AWG: 7.6 mm / 2- 1/0 AWG: 10.7 mm, 4/0 AWG-350 kcmil: 15.2 mm / 350-500 kcmil: 21.3 mm
Splice Cover Length
10-11 in, 12-13 in, 15-16 in, 17-18 in
Splice Cover Length (Metric)
254.0-279.4 mm, 304.8-330.2 mm, 381.0-406.4 mm, 431.8-457.2 mm
Splice Type
Inline
Units per Case
1
Voltage
5 kV - 8 kV
Details
  • Features shielded, non-shielded cables
  • Designed for splicing motor lead cables to the incoming feeder cables
  • Suitable for use with 30000 Series copper compression lugs or other UL Listed copper lugs
  • 0.3 to 0.51-in O.D. insulation
  • Accommodates wire size of 10 to 4 AWG
  • Rated for 5/8 kV applications

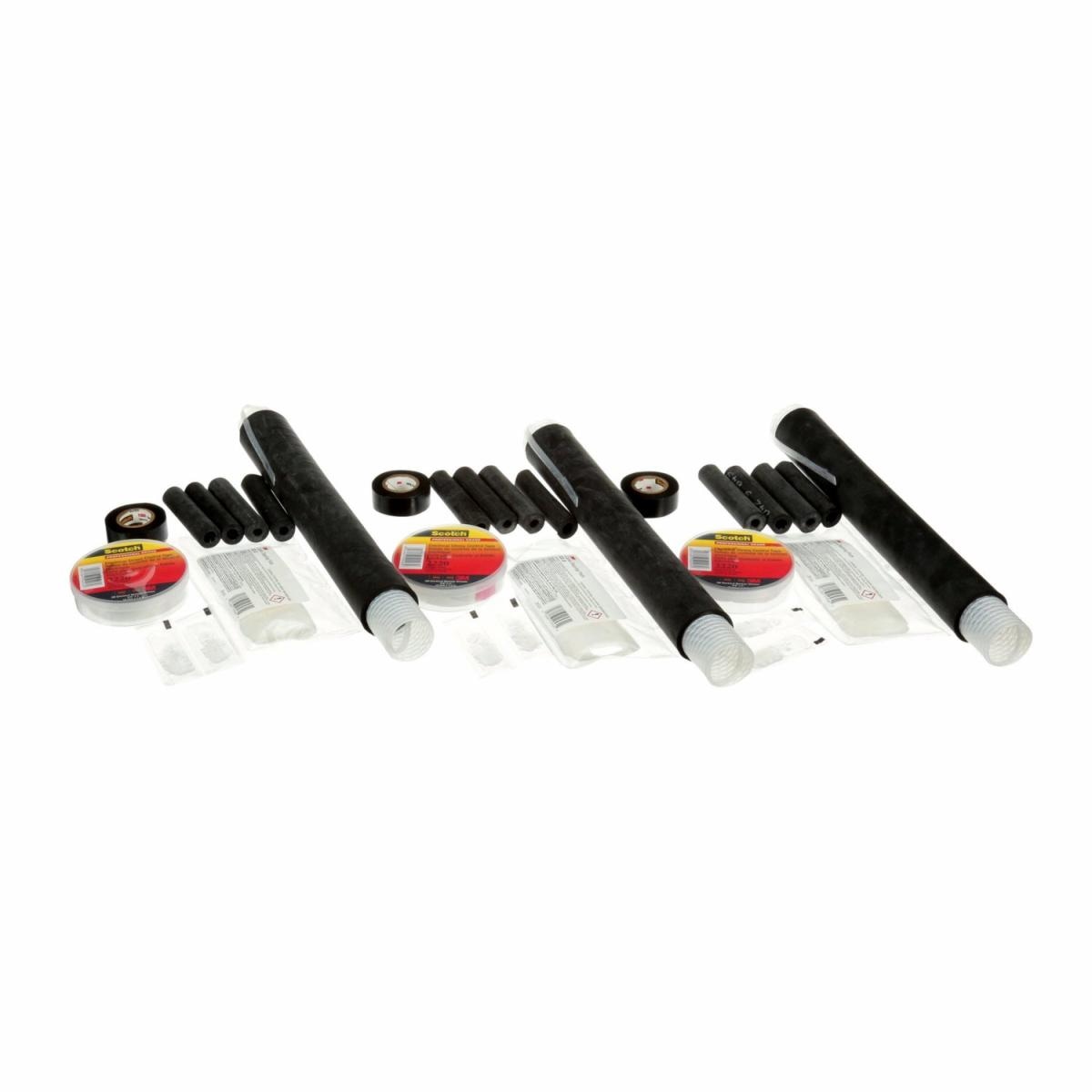

  • Includes 3 rolls Scotch® stress-control tape 2220, 12 adapters, 3 instruction sheets and more
  • Withstands temperatures of 194 degrees F (90 degrees C)

3M™ Motor Lead Inline Splicing Kits 5300 Series are designed for splicing motor lead cables to incoming feeder cables. 3M™ Motor Lead Splicing Kits 5331-5334 can accommodate inline connections, 5/8 kV shielded and non-shielded feeders. The splice’s main component, the slip-on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal on the inline kits. These kits are designed to be used with copper compression, one- or two-hole lugs. After being crimped onto the cables, the lugs are bolted together in an inline configuration, then insulated and sealed with the 3M Motor Lead Splicing Kits. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlok™ 30000 Series copper compression lugs, or other UL listed copper lugs, can be used. In addition, 3M™ Motor Lead Splicing Kits 5331-5334 require vinyl tape which can also be purchased separately. For inline splice kits: The longitudinal space required for assembly will be approximately 2 (splice cover length), to allow space for the splice while the connection is being made. Kit contents include: • (3) Cold Shrink tubes • (12) Adapters • (3) Rolls Scotch® Stress Control Tape 2220 • (3) Bags of solvent cleaning cloths • (6) Tubes of silicone grease • (3) Rolls Scotch® Linerless Rubber Splicing Tape 130C • (3) Instruction sheets
