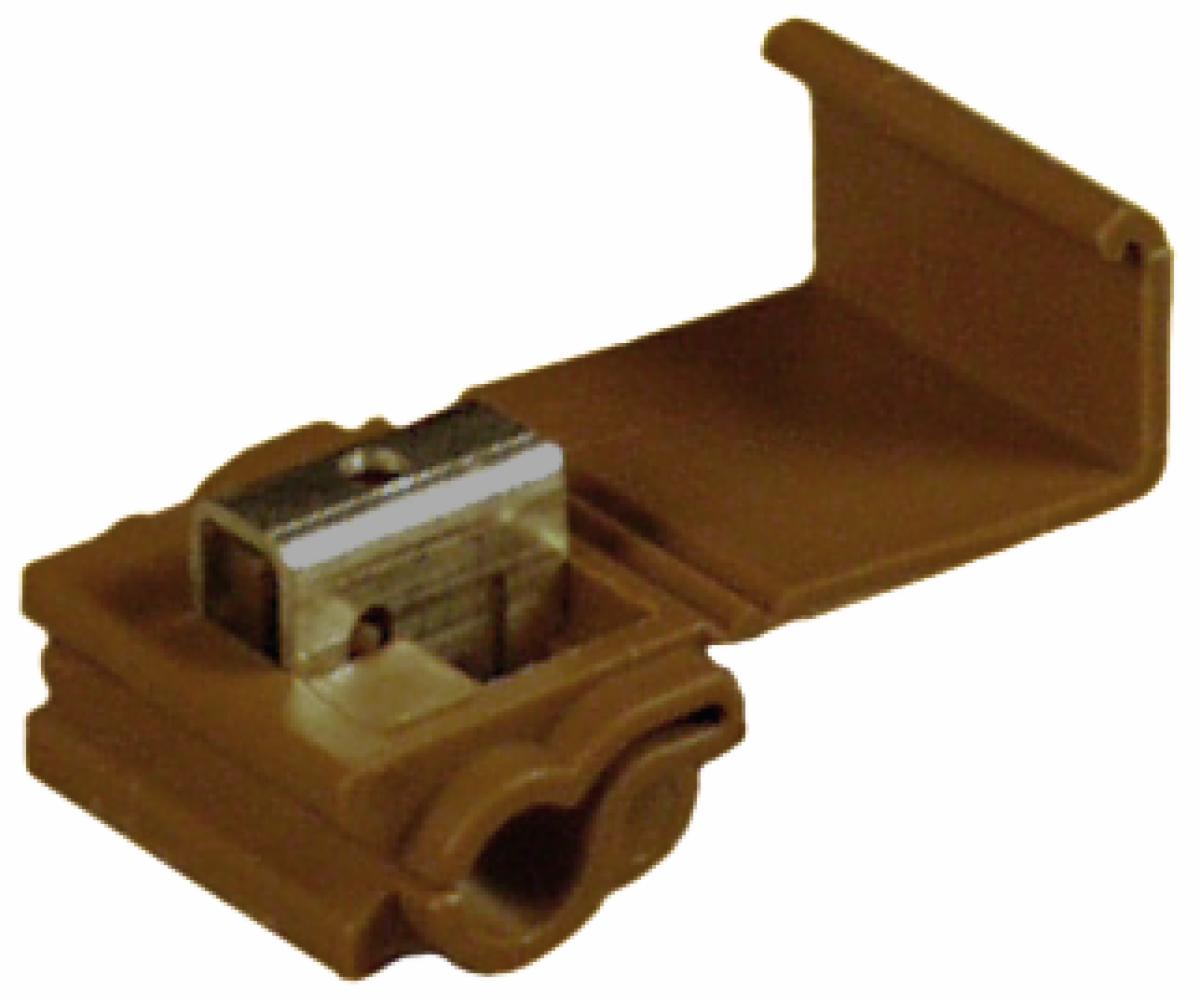

3M™ Scotchlok™ IDC Connector 902

Part Number 902-POUCH3M ID 7100177012UPC 00054007061199
  • Brown polypropylene-insulated connector
  • Brass element construction for good conductivity and tin plating for corrosion resistance
  • Accommodates 12 AWG solid/stranded, 10 AWG stranded
  • UL Listed and RoHS 2011/65/EU Compliant
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
Specifications
Attribute Name
Value
Brand
Scotchlok™
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
221 Degree Fahrenheit
Moisture Resistant
No
Packaging
Pouch
Product Type
Connector
RoHS 2011/65/EU Compliant
Yes
RoHS EU Comments
RoHS 2011/65/EU compliant without exemption
Details
  • Brown polypropylene-insulated connector
  • Brass element construction for good conductivity and tin plating for corrosion resistance
  • Accommodates 12 AWG solid/stranded, 10 AWG stranded
  • UL Listed and RoHS 2011/65/EU Compliant

3M™ Scotchlok™ Insulation Displacement Connector 902 electrically connects a tap wire to a run (through) wire while insulating the connection. This connector is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. Polypropylene insulated and self stripping.

3M™ Scotchlok™ Insulation Displacement Connector 902 is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. The connector withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

For industrial/occupational use only. Not for consumer sale or use.

3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use.  Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice.  Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage.  For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.
