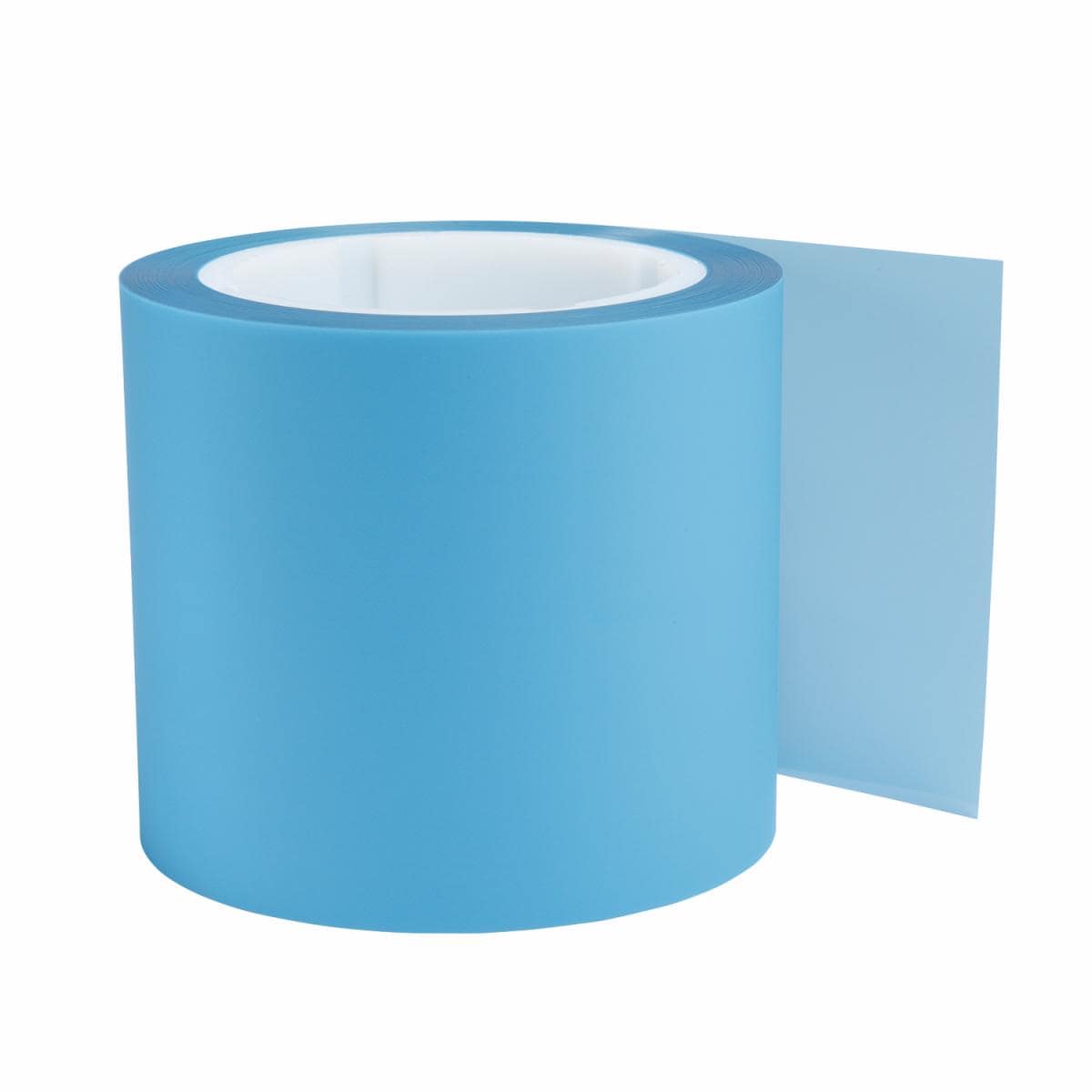

3M™ Lapping Film 263X, Sheets and Rolls

Products
  • Tight particle distribution
  • Harder resin system than 261X
  • Consistent cut rate, finish and life
  • Available in discs, sheets and rolls
 More...
View all details
Overall Width (Imperial)
Overall_Width_Imperial
Overall Width (Metric)
Overall_Width_Metric
Overall Length (Imperial)
Overall_Length_Imperial
Overall Length (Metric)
Overall_Length_Metric
Micron Grade
Micron_Grade
Products Available
Available options:
 Overall Width (Imperial), Overall Width (Metric), Overall Length (Imperial), Overall Length (Metric) and Micron Grade
All Options
Close
Specifications
Attribute Name
Value
Abrasive Material
Aluminum Oxide
Application
Fiber Optic Connector Polishing, Flat Lapping, Hard Disc Drive Lube Buff, Media Head Finishing, Superfinishing
Attachment Type
Plain Back
Brand
3M™
Color Family
Blue, White
Connector Type
Ceramic Fiber Optic Connectors
For Use On
Ceramics, Glass, High-Hardness Metals, Metal, Optical Substrates, Plastic, Silicon Carbides
Micron Grade
0.05 μm, 0.3 μm, 40 μm, 60 μm
Overall Length (Imperial)
11 in, 150 ft
Overall Length (Metric)
279.4 mm, 45.72 m
Overall Width (Imperial)
4 in, 8.5 in
Overall Width (Metric)
101.6 mm, 215.9 mm
Polishing Process
Grind, Refine, Shape, Step 3: Polish/Finish
Product Form
Roll, Sheet
Substrate
Ceramics, Glass, High-Hardness Metals, Metal, Optical Substrates, Plastic, Silicon Carbides
Product Details
  • Tight particle distribution
  • Harder resin system than 261X
  • Consistent cut rate, finish and life
  • Available in discs, sheets and rolls

Aluminum oxide mineral coated on 3 mil polyester film with a durable resin system. Available in 7 grades between 0.05 and 60.0 micron. Common applications include fiber optic finishing and roll superfinishing.

Standard Lead Time: 12 Calendar Days
