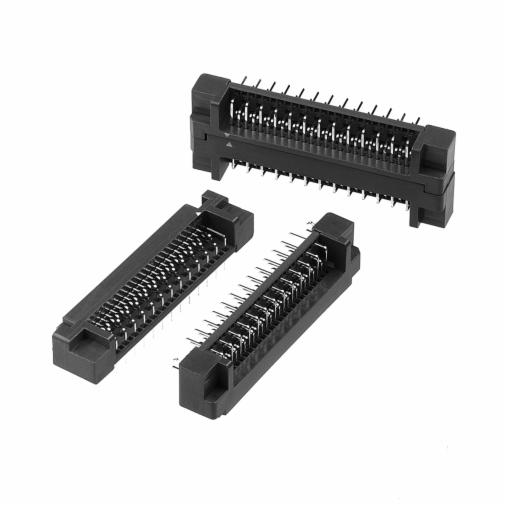

3M™ Pak 50 Low Profile Plug, P50L Series

3M Product Number P50L Series
3M ID B5005032001
UPC 00051111740392

Requires just 0.276" (7 mm) from PCB surface

050” through-hole right angle plug

Optional plug standoffs allow offset of mated boards by 1.0 - 4.0 mm

Frequently viewed resources

Details

Highlights

Requires just 0.276" (7 mm) from PCB surface
050” through-hole right angle plug
Optional plug standoffs allow offset of mated boards by 1.0 - 4.0 mm
High-temperature insulator is compatible with wave and IR soldering processes
Retention clips help stabilize connector during wave soldering

The 3M™ Pak 50 Low Profile Plug, P50L Series mounts just 0.276" (7 mm) from the PCB surface, excellent for compact designs. Optional plug standoffs allow mated boards to be offset by 1 - 4 mm. This 3M .050” plug is excellent for through-hole right angle boardmount applications.

The high-temperature insulator of the 3M™ Pak 50 Low Profile Plug, P50L Series is compatible with wave and IR soldering. Retention clips stabilize the connector during wave soldering.
